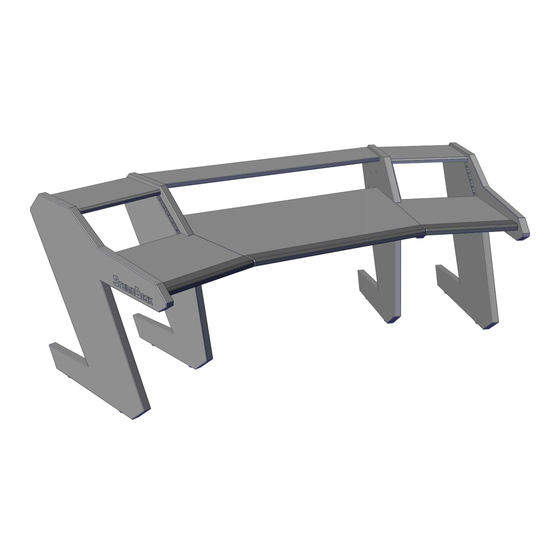

StudioDesk PRO LINE Classic series Assembly Manual

Download this manual

ASSEMBLY MANUAL

Can be applied for PRO LINE Classic and PRO LINE S and SL series

NOTE: In order to avoid injury or damages,

please do not try to assemble your desk alone.

PRO - Line is a heavy desk, which requires

at least two people to carry out assembly.

Please assemble on soft surface to avoid

scratches to the lacquer.

www.studiodesk.net

Need help?

Do you have a question about the PRO LINE Classic series and is the answer not in the manual?

Page 1 ASSEMBLY MANUAL Can be applied for PRO LINE Classic and PRO LINE S and SL series NOTE: In order to avoid injury or damages, please do not try to assemble your desk alone. PRO - Line is a heavy desk, which requires at least two people to carry out assembly.
Page 2 The Desk You Deserve Thank you for making StudioDesk your desk of choice! Before beginning assembly of your desk, let’s get familiar with the parts you have received in your package. Please match the corresponding numbers on this page with the drawings.
Page 3 Step One Insert dowels (13) into the holes as shown in the illustration. Use a rubber hammer if needed. Step Two Assemble parts together on dowels as shown in the illustration. Step Three Fix assembled parts together using metal corners (9) and M6 screws (11) as shown in the illustration.
Page 4 Step Five Once dowels are in place and boards sit tight to the leg, use metal corners (9) and M6 screws (11) to fix the middle section to the leg. Repeat procedure with right Module. Note! Turn the metal corner’s shorter edge downward Step Six Screw the desk tips to the legs on both left and right module.

Pro line sl seriesPro line s series
