The Desk You Deserve

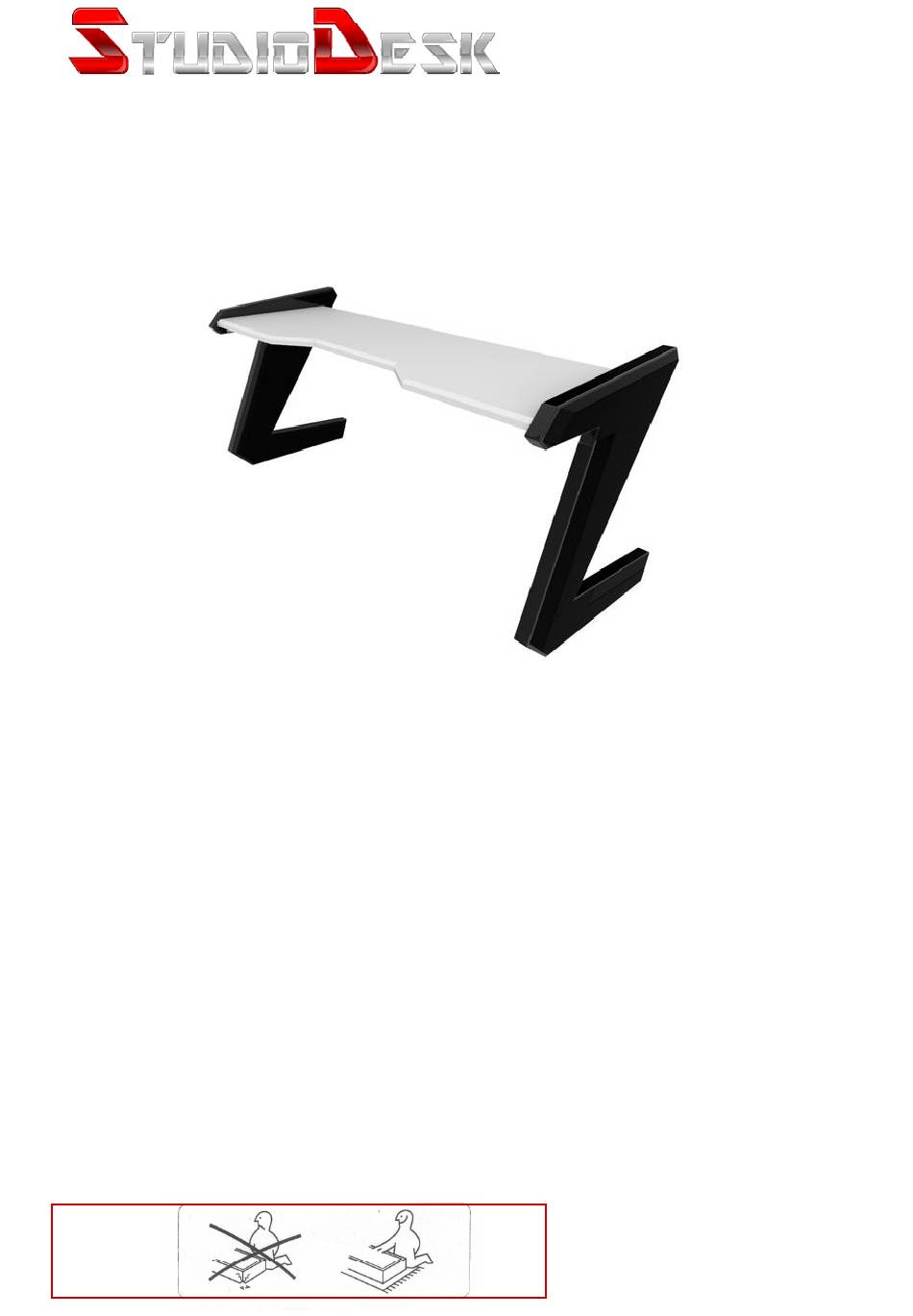

ASSEMBLY MANUAL
KEYBLLWHB04 Keyboard stand Reissue as of June 2019
KEYWHLBLB05 Keyboard stand Black board as of June 2019
NOTE: Please assemble on soft surface to
avoid scratches or damages to the lacquered
wood.
!
www.studiodesk.net
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StudioDesk KEYBLLWHB05
Summary of Contents for StudioDesk KEYBLLWHB05
- Page 1 The Desk You Deserve www.studiodesk.net ASSEMBLY MANUAL KEYBLLWHB04 Keyboard stand Reissue as of June 2019 KEYWHLBLB05 Keyboard stand Black board as of June 2019 NOTE: Please assemble on soft surface to avoid scratches or damages to the lacquered wood.
- Page 2 The Desk You Deserve Thank you for making StudioDesk the desk of your choice! Before starting on assembling your keyboard stand let’s get familiar with the parts you have received in your package. Please match the corresponding numbers on this page with the drawings.
- Page 3 Step One Your keyboard stand can be assembled in two different heights. The picture below will help you to determine which height will be perfect for you. As you can see. there are two positions. If used with Music Commander desk, position one will allow you 143 mm keyboard clearance but will also give you more leg space.
- Page 4 Step Three We will continue this manual assuming that you decide to have Your keyboard on higher position. Install main board (1) on coresponding dowels (5) as shown on the ilustration. Step Four Install strenthening board (2) on coresponding dowels (5) Step Five Fix main board (1) and strenthening board (2) with metal barackets (4) and M6 scewes...
- Page 5 Step Six Fix main strenghtening board (2) with metal barackets (4) and M6 scewes (6). Step Seven Insert wooden dowels (5) as shown on the ilustration left. Step Eight Istall the leg on the top of the construction as shown on the ilustration below. Fix main board and strenghtening board with metal brackets and M6 screws.
