StudioDesk Virtuoso Desk Assembly Manual

Download this manual

The Desk You Deserve

ASSEMBLY MANUAL

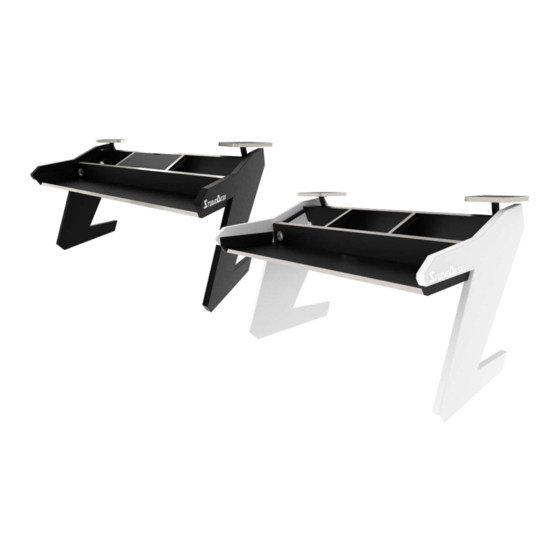

Virtuoso Desk

NOTE: In order to avoid injury or damages,

please do not try to assemble your desk alone.

The Virtuoso is a heavy desk, which requires

at least two people to carry out assembly.

Please assemble on soft surface to avoid

scratches to the lacquer.

www.studiodesk.net

Need help?

Do you have a question about the Virtuoso Desk and is the answer not in the manual?

Page 1 The Desk You Deserve www.studiodesk.net ASSEMBLY MANUAL Virtuoso Desk NOTE: In order to avoid injury or damages, please do not try to assemble your desk alone. The Virtuoso is a heavy desk, which requires at least two people to carry out assembly.
Page 2 The Desk You Deserve Thank you for making StudioDesk your desk of choice! Before beginning assembly of your desk, let’s get familiar with the parts you have received in your package. Please match the corresponding numbers on this page with the drawings.
Page 3 Step One Assemble keyboard surface (1) and keyboard surface holders (10) using confirmat screws (17) as shown In the illustration. Step Two Insert wooden dowels (14) into the leg. Place connecting panel (2) on the dowels and fix it using metal bracket.
Page 4 Step Five Install rack bay back panel (4) using wooden Dowels (14) and confirmat screws (17) as Illustrated on the picture (right). Step Six Install monitor shelf (8) as illustrated on the picture on left and fix it with metal bracket (11) and M6 Screws (13).
Page 5 Step Nine Install metal supports to the speaker shelves (5) using Screws for wood (23). All holes are predefined. Step Ten While desk is in standing position Install speaker shelves using screws for shelves (22) and Washers (18). Do not fasten to tight in order to be able to swivel your speaker shelves.
