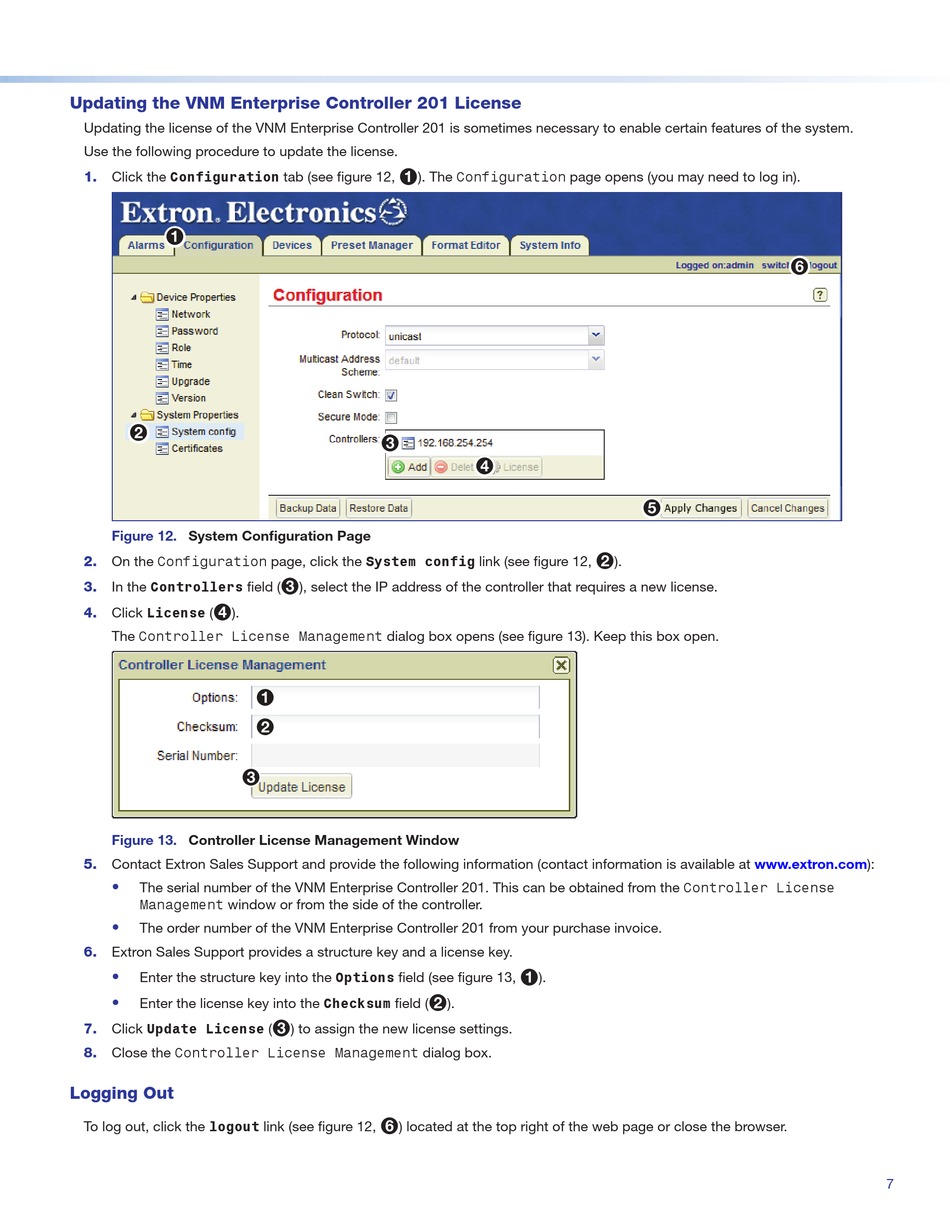

Updating the VNM Enterprise Controller 201 License

Updating the license of the VNM Enterprise Controller 201 is sometimes necessary to enable certain features of the system.
Use the following procedure to update the license.
1. Click the Configuration tab (see figure 12,
1 1
2 2
Figure 12. System Configuration Page
2. On the Configuration page, click the System config link (see figure 12,
3. In the Controllers field (
4
4. Click License ( ).
The Controller License Management dialog box opens (see figure 13). Keep this box open.
3 3
Figure 13. Controller License Management Window
5. Contact Extron Sales Support and provide the following information (contact information is available at www.extron.com):
•
The serial number of the VNM Enterprise Controller 201. This can be obtained from the Controller License
Management window or from the side of the controller.
•
The order number of the VNM Enterprise Controller 201 from your purchase invoice.
6. Extron Sales Support provides a structure key and a license key.
•
Enter the structure key into the Options field (see figure 13,
•
Enter the license key into the Checksum field (
7. Click Update License (
8. Close the Controller License Management dialog box.

Logging Out

To log out, click the logout link (see figure 12,
1 ). The Configuration page opens (you may need to log in).
3 3
3 ), select the IP address of the controller that requires a new license.
1 1
2 2
2
3 ) to assign the new license settings.
6 ) located at the top right of the web page or close the browser.
4 4
2
).
1 ).
).
6 6
5 5
