VNM EC 201 • Setup Guide (Continued)
8.
Click Apply Changes (see figure 5,
The controller restarts. After the restart, the network settings are properly configured.
9.
On the control PC, configure the IP address so that it is within the address range of the VNM Enterprise Controller 201.
NOTE:
Perform this step only if the IP address of the controller uses a network prefix or subnet other than
192.168.254.xxx.
10.
If necessary, restart the control PC to save the configuration.
Step 6 — Configure the VNM EC 201 as the System Controller
Log in to the controller and click the Configuration tab (see figure 6,
1.
1
1
2
2

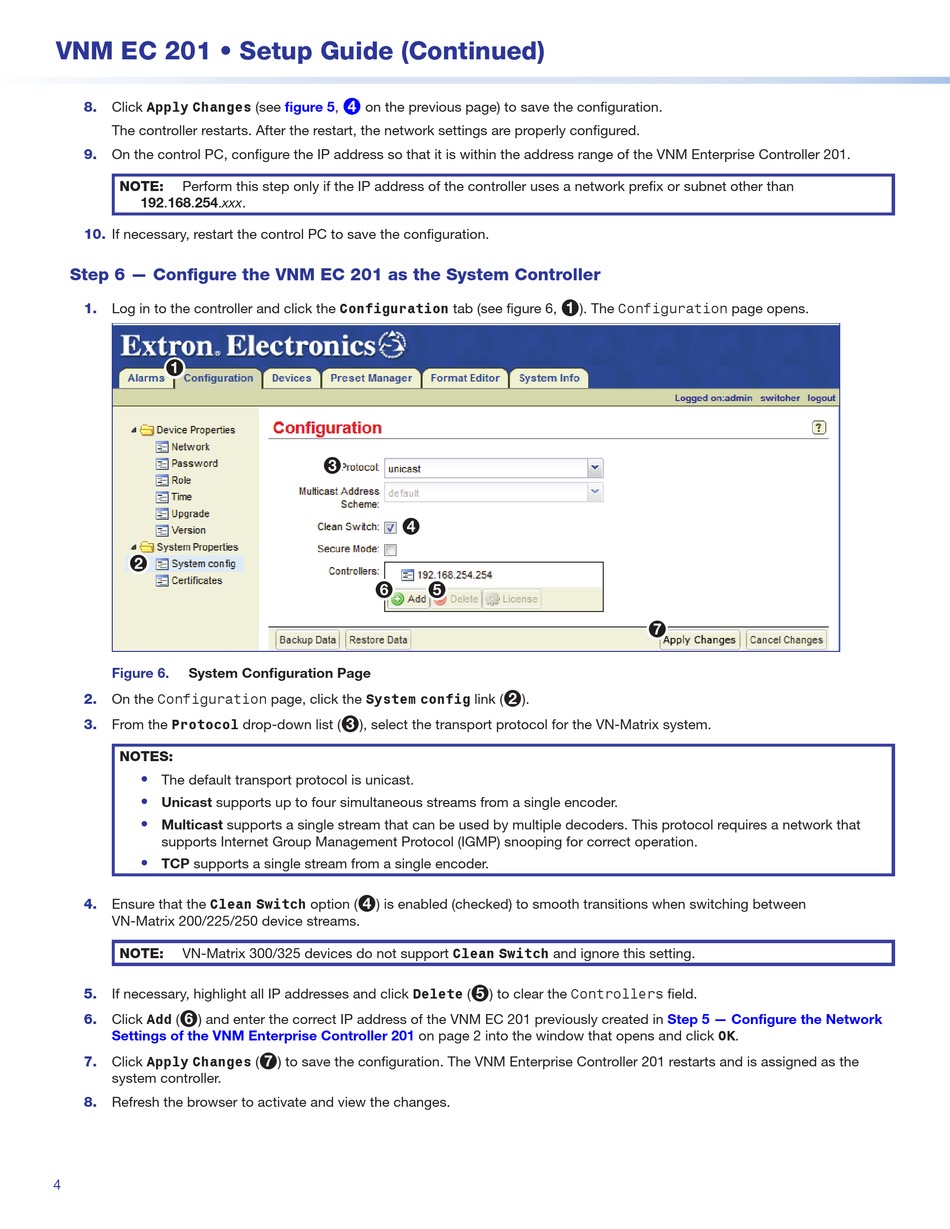

Figure 6.
System Configuration Page
2.
On the Configuration page, click the System config link (
3.
From the Protocol drop-down list (
NOTES:
•
The default transport protocol is unicast.
•
Unicast supports up to four simultaneous streams from a single encoder.
•
Multicast supports a single stream that can be used by multiple decoders. This protocol requires a network that
supports Internet Group Management Protocol (IGMP) snooping for correct operation.
•
TCP supports a single stream from a single encoder.
Ensure that the Clean Switch option (
4.
VN-Matrix 200/225/250 device streams.
NOTE:
VN-Matrix 300/325 devices do not support Clean Switch and ignore this setting.
5.
If necessary, highlight all IP addresses and click Delete (
6
6.
Click Add (
) and enter the correct IP address of the VNM EC 201 previously created in
Settings of the VNM Enterprise Controller 201
7.
Click Apply Changes (
system controller.
8.
Refresh the browser to activate and view the changes.
4
4
on the previous page) to save the configuration.
3
3
4
4
6
6
5
5
3
), select the transport protocol for the VN-Matrix system.
4
) is enabled (checked) to smooth transitions when switching between
on page 2 into the window that opens and click OK.
7
) to save the configuration. The VNM Enterprise Controller 201 restarts and is assigned as the
1
). The Configuration page opens.
7
7
2
).
5
) to clear the Controllers field.
