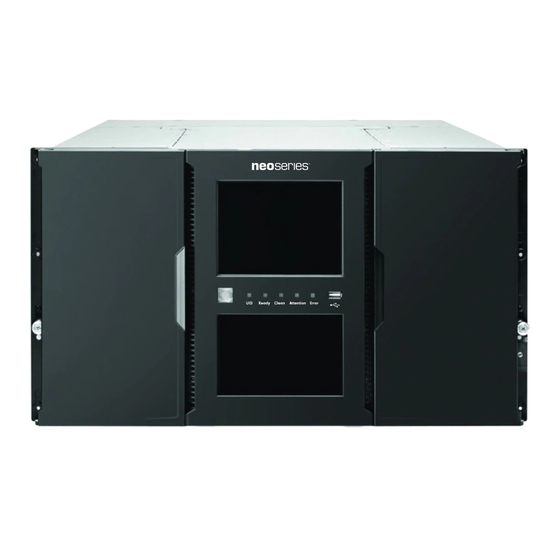

Overland Storage NEO XL Series Setup Instructions

This document describes how to install the drive power boards
and power supplies to make your NEOxl 80 or NEOxl
Expansion ready for service.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working
with the unit.
WARNUNG: Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.

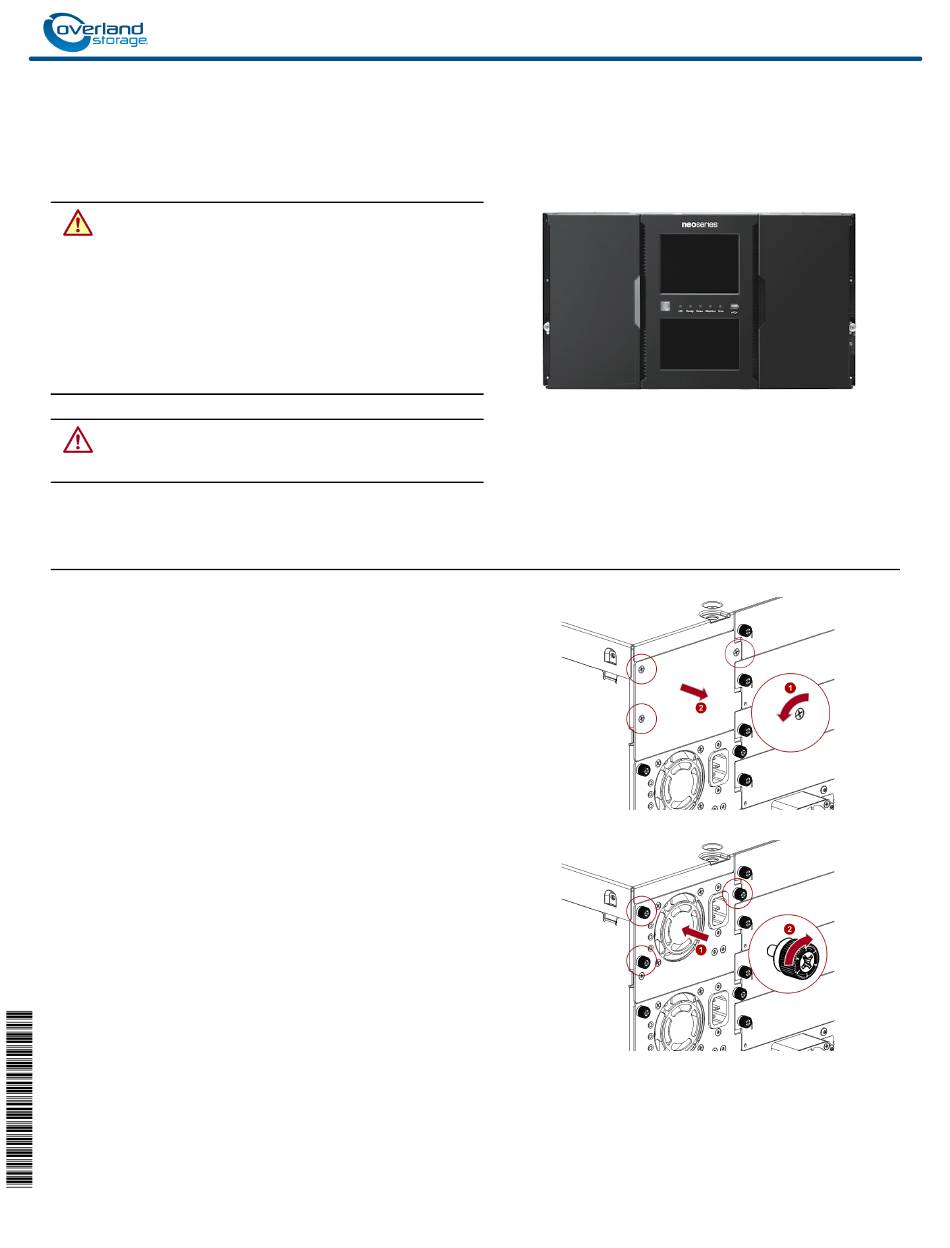

Install Power Supplies

Remove the Cover Plate

1. At the rear, with your fingers, loosen the three Phillips
screws on the power supply cover.
2. Using the thumbscrews (one on each side), pull the plate
off and set it aside.

Install the Power Supply

1. Position the new power supply onto the alignment rails
and slide the power supply into the library until it is
flush with the back panel of the library.
2. Tighten the blue captive thumbscrews with your
fingers to secure it to the library.
10400672-001
Setup Instructions
©2015 Overland Storage, Inc.
NEO XL-Series
®
Page 1 of 2
