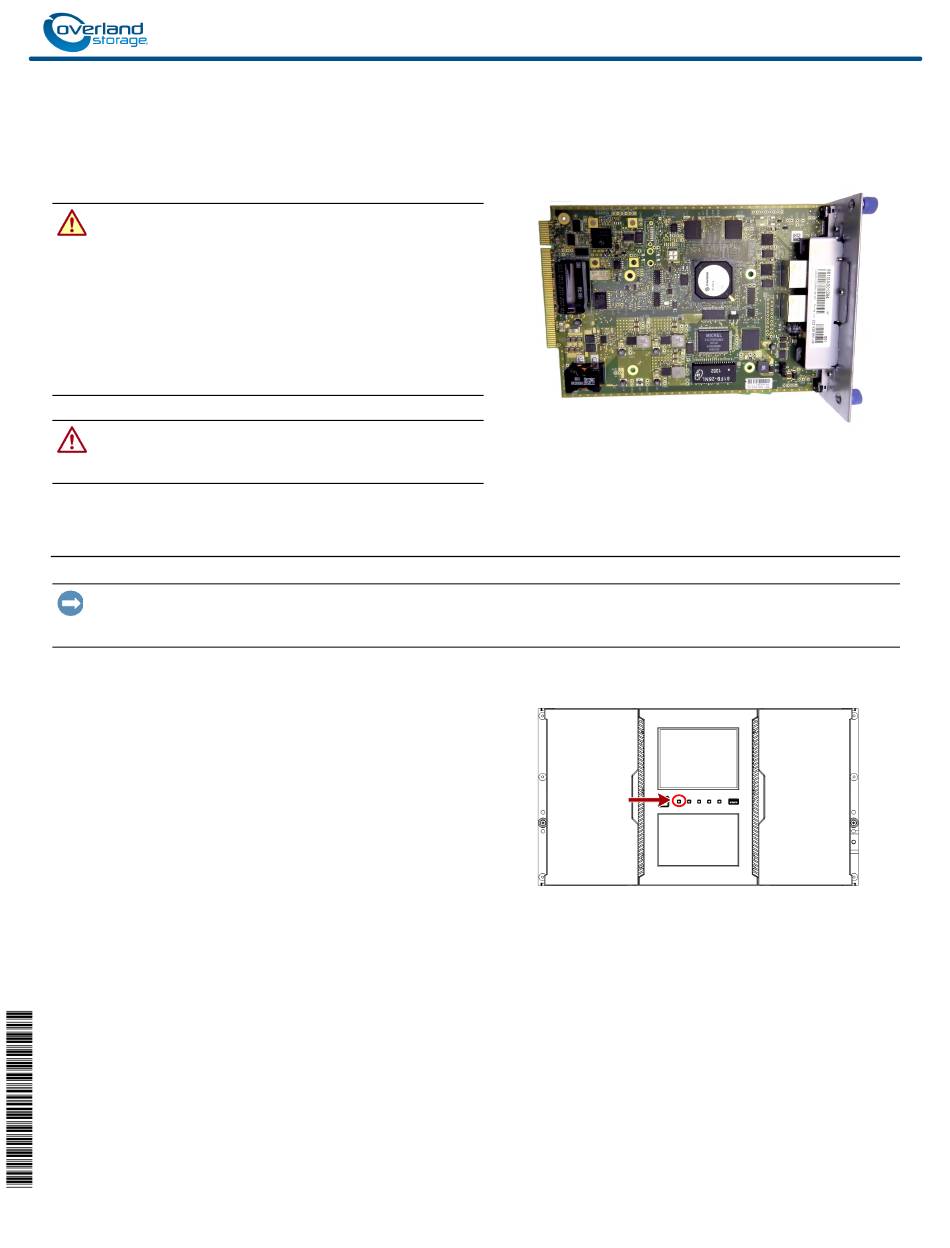

Spare Library Controller Instructions

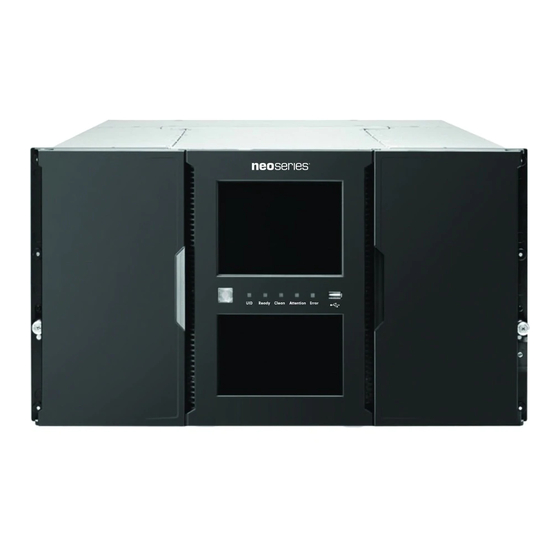

This document describes how to remove and replace a library
controller board in a NEO XL-Series library from Overland
Storage.
WARNING:
To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working with
the unit.
WARNUNG:
Um das Risiko eines elektrischen Schlags oder
Schäden am Gerät zu vermeiden, ziehen Sie stets den
Netzstecker, bevor Sie an der Einheit arbeiten.
AVERTISSEMENT:
Pour réduire le risque de choc électrique
ou endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION:
While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.
Install/Replace Library Controller
Do not replace both the library controller and the chassis at the same time as the firmware does not allow
IMPORTANT:
the library to operate if both are replaced simultaneously. Replace the library controller, power cycle the library, and
then replace the chassis.
Identify the Failed Library
1. From the OCP or RMI Home screen, identify the failed
library.
2. Activate the blue UID LED from the Maintenance > UID
LED Control screen to locate the library in the data center.
10400657-001
©2015 Overland Storage, Inc.
NEO
XL-Series Libraries
®
Page 1 of 4
