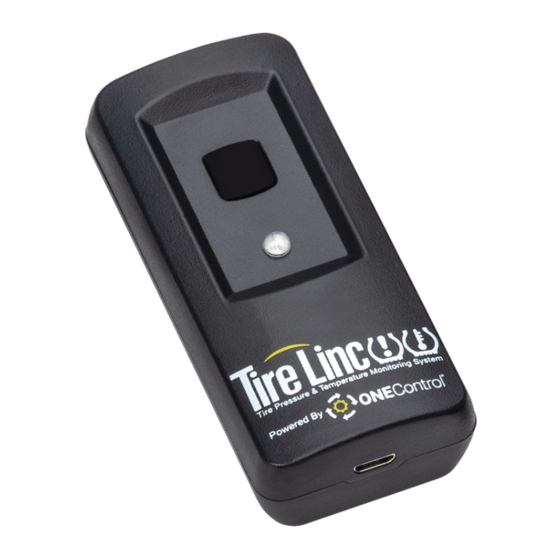

  • Page 1 Quick Start Guide Alert Indicator Powered by Technology CCD-0003912...
  • Page 2 Quick Start Guide Pairing Alert Indicator to Repeater ....2 Operation ........6 NOTE: The purpose of this Quick Start Guide is for a quick setup of the Alert Indicator for the Tire Pressure and Temperature Monitoring System.
  • Page 3 Pairing Alert Indicator to Repeater 1. Pair the Alert Indicator (Fig.1) to the Repeater by pressing and releasing the Alert Indicator button (Fig.1A). A. The Indicator will power up and its LED (Fig.1B) will blink red once then blue three times indicating the Alert Indicator is NOT linked Fig.1 to the repeater.
  • Page 4 A. Continue to hold the Alert 6. The Alert Indicator is now Indicator button until its LED linked to the Repeater. and buzzer sounds. NOTE: The Repeater’s Status I. One beep will sound off and LED will indicate green, yellow one green LED flash will be or red to indicate certain emitted.
  • Page 5 • Yellow if there is no connec- tion or out of range of the Re- peater; cannot detect tire status. • Red to indicate a fault, either high/low pressure or tempera- ture is out of range; Indicator will beep for 10 seconds when tire issue is seen for the first time.

  • Page 6: Operation

    Operation When Stem Sensors are under Repeater, when tires are: pressure, data is transmitted to the • moving/rotating, every Repeater when tires are: minute; • moving/rotating, every one • not moving/not rotating, minute; scanning time increments • not moving/not rotating, every in 1, 2, 4, 8 and 15 minutes 15 minutes.

  • Page 7: Deep Sleep Mode

    • Red followed by blue notes regardless of color, also indicates battery status. Indicator is not linked to the Repeater. Wait for the Repeater’s Status LED Battery status indicators are as to turn off, then press and release follows (regardless of LED color): the Alert Indicator’s button.
  • Page 8 Contact Lippert Components Incorporated Should you have any questions, please do not 574-537-8900 hesitate to contact us at or by email at customerservice@lci1.com. Self-help tips, technical documents, product videos and a training class schedule lci1.com MyLCI app. are available at or by downloading the Rev: 06.17.20...
