Sunjoy South Bay L-GZ793PST-A-PK Assembly Instruction

Hexagon easy up gazebo-canopy

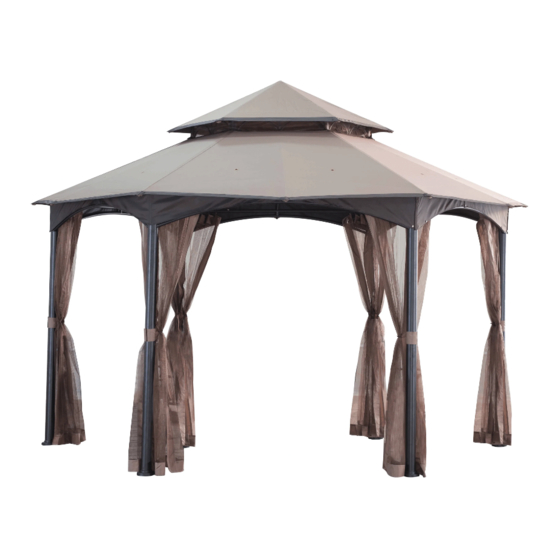

South Bay Hexagon Easy Up Gazebo-Canopy

Assembly Instruction

Item no# L-GZ793PST-A-PK

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble

or install the product.

WARNING

Keep all children and pets away from assembly area. Children and pets should

be supervised when they are in the area.

Keep all flame and heat sources away from the tent fabric. This tent is made

with fabric that meets CPAI-84 specification for flame resistance. It is not

fireproof. The fabric will burn if left in continuous contact with any flame

sources. The application of any foreign substance to the tent fabric may render

the flame-resistant properties ineffective.

Before beginning assembly of product, make sure all parts are present.

Compare parts with package contents list. If any part is missing or damaged,

do not attempt to assemble the product.

Table of Contents

Do you have a question about the South Bay L-GZ793PST-A-PK and is the answer not in the manual?

Page 1 South Bay Hexagon Easy Up Gazebo-Canopy Assembly Instruction Item no# L-GZ793PST-A-PK SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble or install the product. WARNING Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area.
Page 2 Parts List Small canopy 1 pc Big canopy 1 pc Fig.1: Open the hook-and-loop fastener at the valance of the canopy. Fig.2: Remove the canopy (K) from the end of cant beam and put the canopy away. Fig.3: Open the hook-and-loop fastener between the small top netting and big canopy.
Page 3 Fig.4: Remove the small top from big top. Fig.5: Remove the small canopy (J) from small top cant beam (F) and take down the small canopy (J). Fig.6: Take down the big canopy (K) from big top. Fig.1: Put the big canopy (K) onto the big top and do not spread out.
Page 4 Please do not return this product to the store. For technical assistance or replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is...
Page 5 LIMITED WARRANTY: This limited warranty is extended to the original purchaser and applies to defects in material and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. The item is warranted to be free from defects in material or workmanship for a period of one (1) year.
