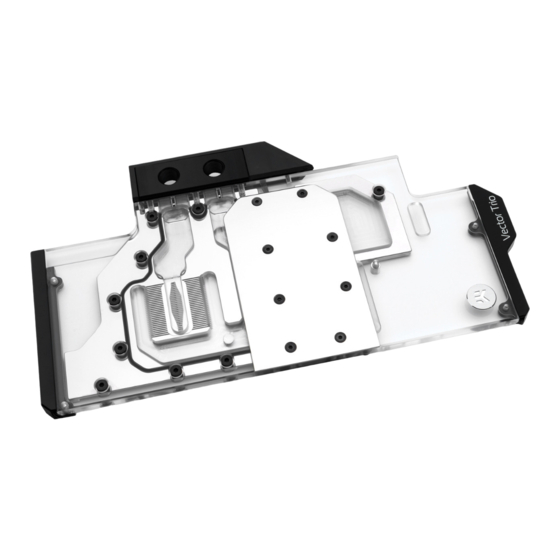

ekwb EK-Vector Trio RTX 2080 Installation Manual

This product is intended for installation only by expert users. Please consult with a
qualified technician for installation. Improper installation may result in damage to your
equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for
the use of these products, nor their installation. The following instructions are subject
to change without notice. Please visit our web site at
Before installation of this product please read important notice, disclosure and
warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with
the installation process!
2. Please remove your Graphics card from the computer to assure safest
mounting process in order to prevent any possible damages to your GPU
and/or graphics card circuit board (PCB).
3. The EK-HFB and EK-ACF type fittings require only a small amount of
force to screw them firmly in place since the liquid seal is ensured by the
rubber O-ring gaskets.
4. The use of corrosion inhibiting coolants is always recommended for any
liquid cooling system.

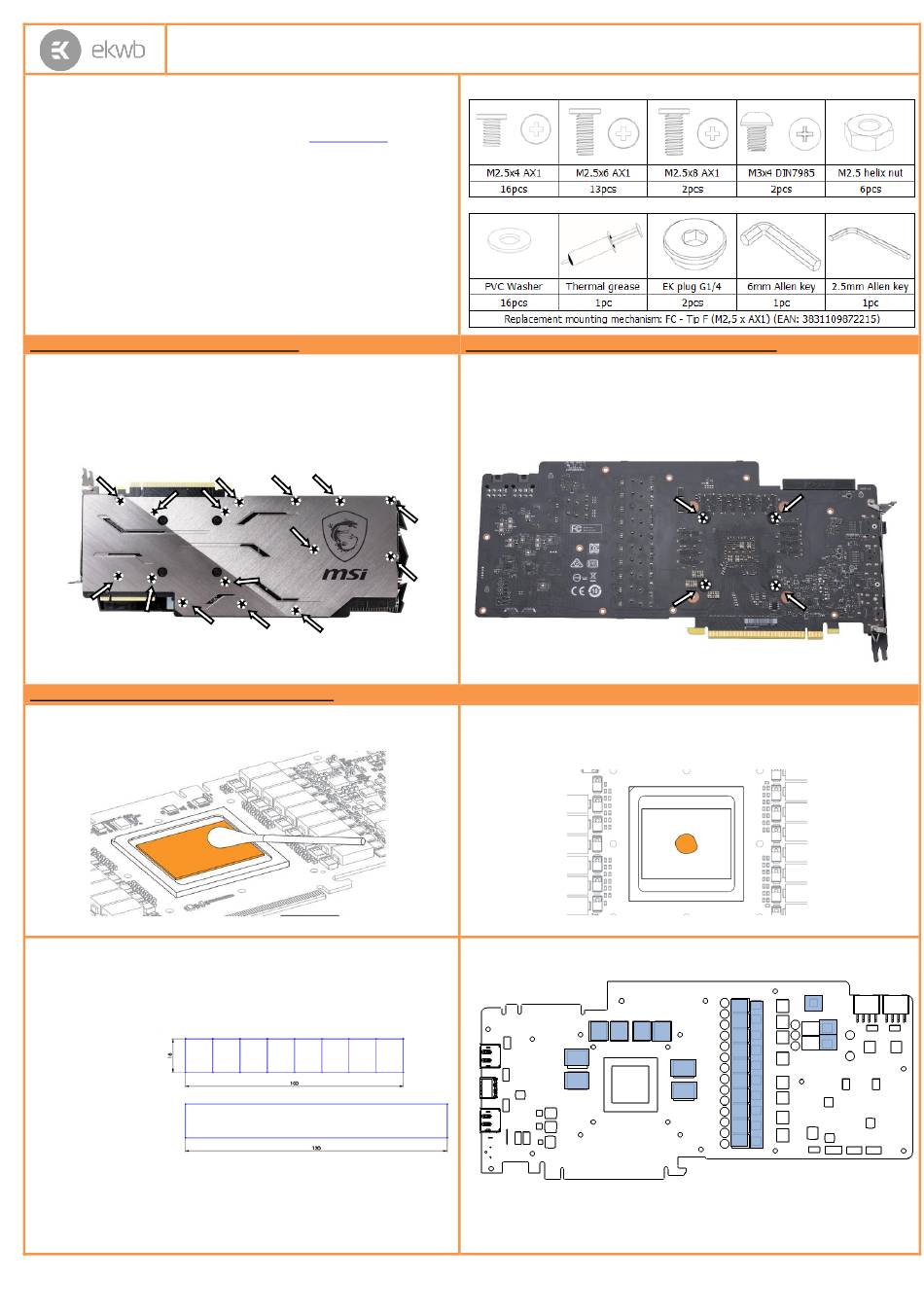

STEP 1: PREPARING YOUR GRAPHIC CARD
1.REMOVING FACTORY PROVIDED BACKPLATE.
assembly screws should be removed, including self-adhesive washers on both sides of the PCB (if present).
Also remove encircled screws on the IO bracket using Phillips screwdriver.
STEP 1 cont.: PREPARING YOUR GRAPHIC CARD
1. CLEANING THE PCB:
Carefully detach the original stock cooler after removing all screws securing
it to the board. Wipe off the remains (by using non–abrasive cloth or
the original thermal compound until the components and circuit board are completely clean. EKWB
recommends the use of denatured alcohol for removing TIM leftovers.
3. CUTTING THERMAL PADS:
Your block comes with thermal pads, some of which are already pre-
cut. Others have to be cut to smaller chunks in order to cover all the VRM components such as MOSFETs
and drivers. PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR
TO INSTALLATION.
Replacement thermal pads:
Thermal Pad E – 0.5mm (RAM 8x) – (EAN: 3830046996688)
Thermal Pad G – 1mm (120x24mm) – (EAN: 3830046996770)
1: Thermal pad E – 0.5mm
1
(for memory IC):
2: Thermal pad G – 1mm
(for Mosfet):
All disclosures, notices and warranty conditions are being written on the EKWB website. Please read terms of use.
Installation manual for EK-Vector Trio RTX 2080 water block
www.ekwb.com for updates.
Remove all encircled screws. All heat sink
q-tip , as shown on sample photo) of
1 1 1 1 1 1 1
2
BAG CONTENT:
Bag content is universal for all water blocks, you may not need all screws.
STEP 1 cont: PREPARING YOUR GRAPHICS CARD.
2. REMOVING STOCK COOLER
: Remove all encircled screws using Phillips screwdriver. All heat sink
assembly screws should be removed, including self-adhesive washers on both sides of the PCB (if present). After
you remove the housing do not forget to unplug the fans.
2. APPLYING THERMAL COMPOUND:
original thermal compound until the components and circuit board are completely clean. Apply thermal compound:
NVIDIA
lightly coat GPU chip with enclosed EK-TIM Ectotherm thermal grease. EKWB recommends to apply thermal
grease in cross form for best performance (see sample picture).
4. PLACING THERMAL PADS ON PCB.
below. Refer to numbering in previous picture when applying thermal pads of different sizes or thicknesses. EK
made sure to provide customers with more than adequate quantity of thermal pads to complete this step.
1
1 1
1
1
Wipe off the remains (by using non–abrasive cloth or
Place thermal pads on the circuit board as shown on the picture
2
2
1
2
2
2
1
1
th
Released on 27 of February, 2019; Revision 1
q-tip
) of the
