- Page 1 User Guide HDMI HAE 100 4K Plus HDMI Audio Extractor 68-3113-01 Rev. A 10 20...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad avvertire WARNING: This symbol, , when used on the product, is intended to l’utente della presenza di tensione non isolata pericolosa all’interno alert the user of the presence of uninsulated dangerous voltage within the del contenitore del prodotto che può...
- Page 3 安全記事 • 繁體中文 안전 지침 • 한국어 警告: 경고: 이 기호 若產品上使用此符號， 是為了提醒使用者， 產品機殼內存在未隔離的危險 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 電壓， 可能會導致觸電之風險。 접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다. 注意 若產品上使用此符號， 是為了提醒使用者， 設備隨附的用戶手冊中有重要 주의: 이 기호 가...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: Table Of Contents
Contents Reference Information Introduction ........13 ............1 Mounting ............13 About the HAE 100 4K Plus HDMI Audio Extractor ............1 Tabletop Placement ........13 Features ............. 2 Rack Mounting ..........13 Under-desk and Furniture Mounting ....14 Panels and Cabling PCS Software ........... -
Page 6: Introduction

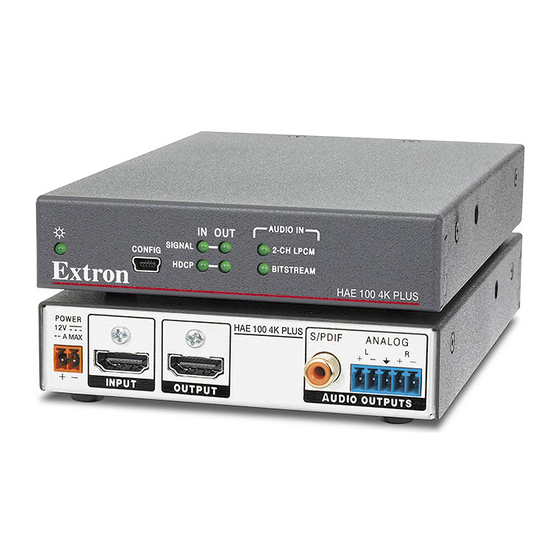

About the HAE 100 4K Plus HDMI Audio Extractor The HAE 100 4K Plus is a one HDMI input, one HDMI output audio de-embedder that extracts the audio from an HDMI signal, including audio from 4K sources. It accepts an HDMI input, extracts the digital audio from the HDMI signal, and provides a digital S/PDIF audio output and an analog stereo audio output. -
Page 7: Features
Features • De-embeds two-channel analog and S/PDIF digital audio from an HDMI signal — The HAE 100 4K Plus offers the flexibility to support analog stereo, dual mono, or two-channel LPCM audio. Dolby or DTS multi-channel surround formats ® ®... -
Page 8: Panels And Cabling
2-CH LPCM BITSTREAM HDMI output (see page HAE 100 4K PLUS INPUT OUTPUT AUDIO OUTPUTS S/PDIF output (see page Analog output (see page Figure 3. HAE 100 4K Plus Rear Panel HAE 100 4K Plus • Panels and Cabling... - Page 9 National Electrical Code ANSI/NFPA 70, article 725, et au Canadian Electrical Code, partie 1, section 16. La source d’alimentation ne devra pas être fixée de façon permanente à une structure de bâtiment ou à une structure similaire. HAE 100 4K Plus • Panels and Cabling...
- Page 10 (-) terminal damages the audio output circuits. • Connectez le manchon à la terminaison terre (Gnd). Connecter le manchon à une terminaison négative (-) endommagera les circuits de la sortie audio. HAE 100 4K Plus • Panels and Cabling...
-
Page 11: Configuration
The HAE 100 4K Plus scans and monitors the EDID of the sink device connected to the HDMI output. It determines the interface (DVI or HDMI) and color depth, and uses that information to adjust the signal so that it is compatible with the output device. -
Page 12: Color Bit Depth Support
10. Hot Plug Detect (HPD) The HAE 100 4K Plus monitors HPD on the HDMI output to determine if a new sink has been connected. If necessary, the signal for that output is modified in response to the EDID of the connected device. -
Page 13: Sis Commands
When the HAE 100 4K Plus receives a valid SIS command, it executes the command and sends a response to the host device. If the HAE 100 4K Plus is unable to execute the command because the command is invalid or it contains invalid parameters, it returns an error response to the host. -
Page 14: Using The Command And Response Table
Using the Command and Response Table The Command and Response Table below shows SIS commands for the HAE 100 4K Plus. Command and response examples are shown throughout the table. Symbols are used throughout the table to represent variables in the command and response fields. Use the ASCII to HEX Conversion Table with the Command and Response Table. - Page 15 2 = force 8-bit/color X1$ = Output 5 V mode: = Auto NOTE: 5 V is enabled when a source with 5 V is present; otherwise, it is off. 2 = 5 V always enabled (default) HAE 100 4K Plus • SIS Commands...
- Page 16 3 = HDCP sink detected and encrypted X1^ = Analog audio output configuration: 1 = Stereo (default) 2 = Dual Mono X1& = Audio output: 1 = Analog output 2 = S/PDIF output HAE 100 4K Plus • SIS Commands...
- Page 17 No blank or space characters are permitted as part of a name. The first letter must a letter, and the last character must not be a minus sign/hyphen. The factory default is “HAE-100-4K-PLUS”. HAE 100 4K Plus • SIS Commands...
-
Page 18: Reference Information
Rack Mounting Procedure These units can be mounted on an optional rack systems listed on the website (see www.extron.com). To mount the unit on a rack shelf, follow the instructions provided with the shelf accessories. HAE 100 4K Plus • Reference Information... -
Page 19: Under-Desk And Furniture Mounting
Back of the Rack Mounting Procedure The HAE 100 4K Plus can be mounted to the rear of a rack using an optional back of rack mounting kit (see www.extron.com). The kit allows the product to be vertically mounted to the front or rear rack supports and face either the front or the rear of the rack. -
Page 20: Using Pcs
Using PCS Connect a control PC to the HAE 100 4K Plus front panel Config port (see figure on page 3). Open the PCS software on the control PC. Click Start > Programs > Extron Electronics > Extron Product Configuration Software > Extron Product Configuration Software. - Page 21 Extron Warranty Extron warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/ or materials, Extron will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
