330500 Velomitor Sensor, 330525 Velomitor XA Sensor, 330530 Radiation Resistant Velomitor Sensor Operation Manual

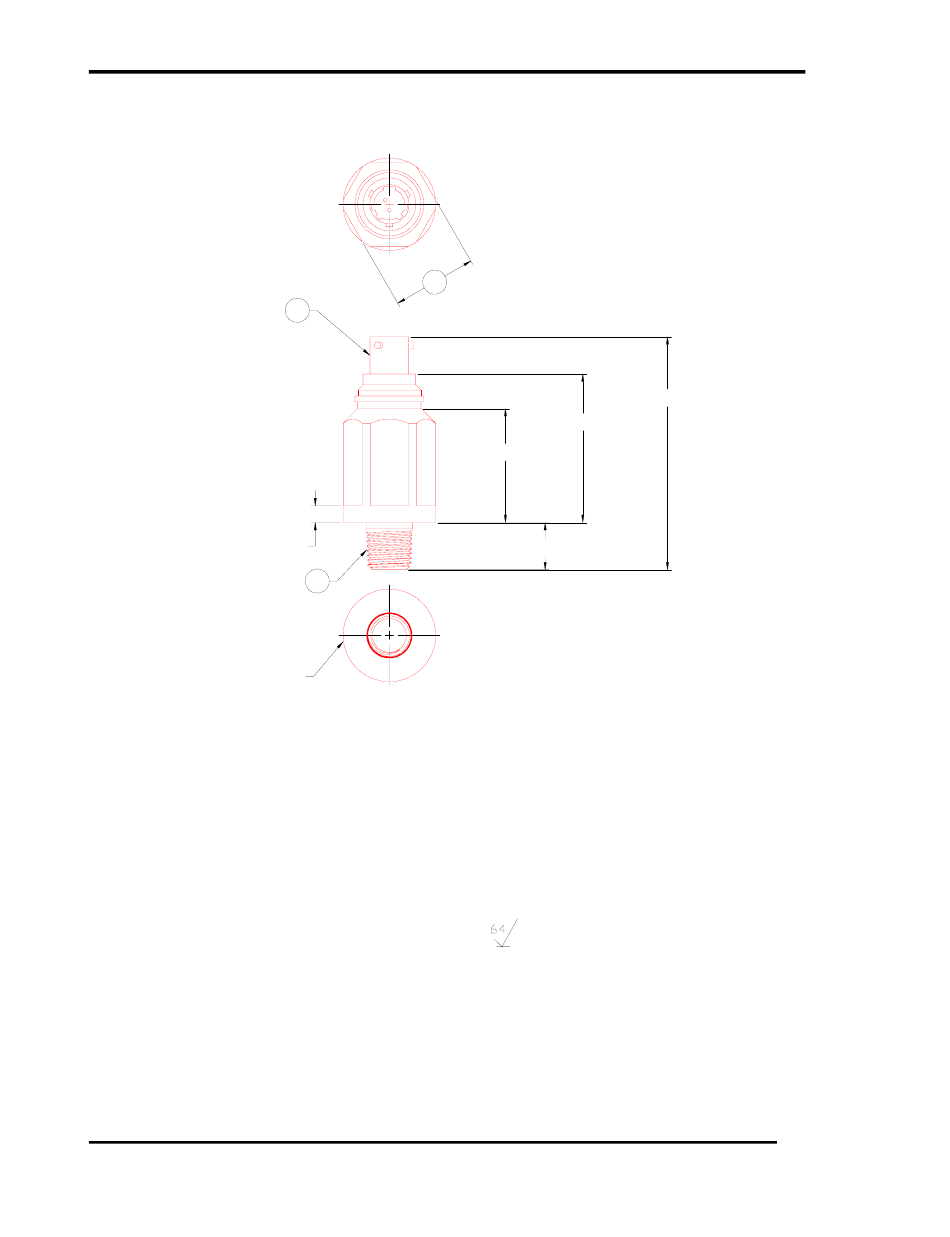

5.4 Mechanical Drawing (330525)

5.1mm [0.20]
Ø27.8mm [Ø1.10]
(1)
(2)
(3)
Notes:
1. Dimensions are in millimetres [inches]
2. Finished machine surfaces
3. Tolerances:
34
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
1 1
2
34.3mm [1.35]
3
25.4 mm [1.00] hexagonal
MIL-C-26482 stainless steel receptacle, 2-pin
1/4 – 18 NPT
.XX = ±0.3 mm [0.01]
Decimal
.XXX = ±.13 mm [.005]
Figure 5-2
70.1mm [2.76]
44.7mm [1.76]
14.2mm [0.56]
