330500 Velomitor Sensor, 330525 Velomitor XA Sensor, 330530 Radiation Resistant Velomitor Sensor Operation Manual

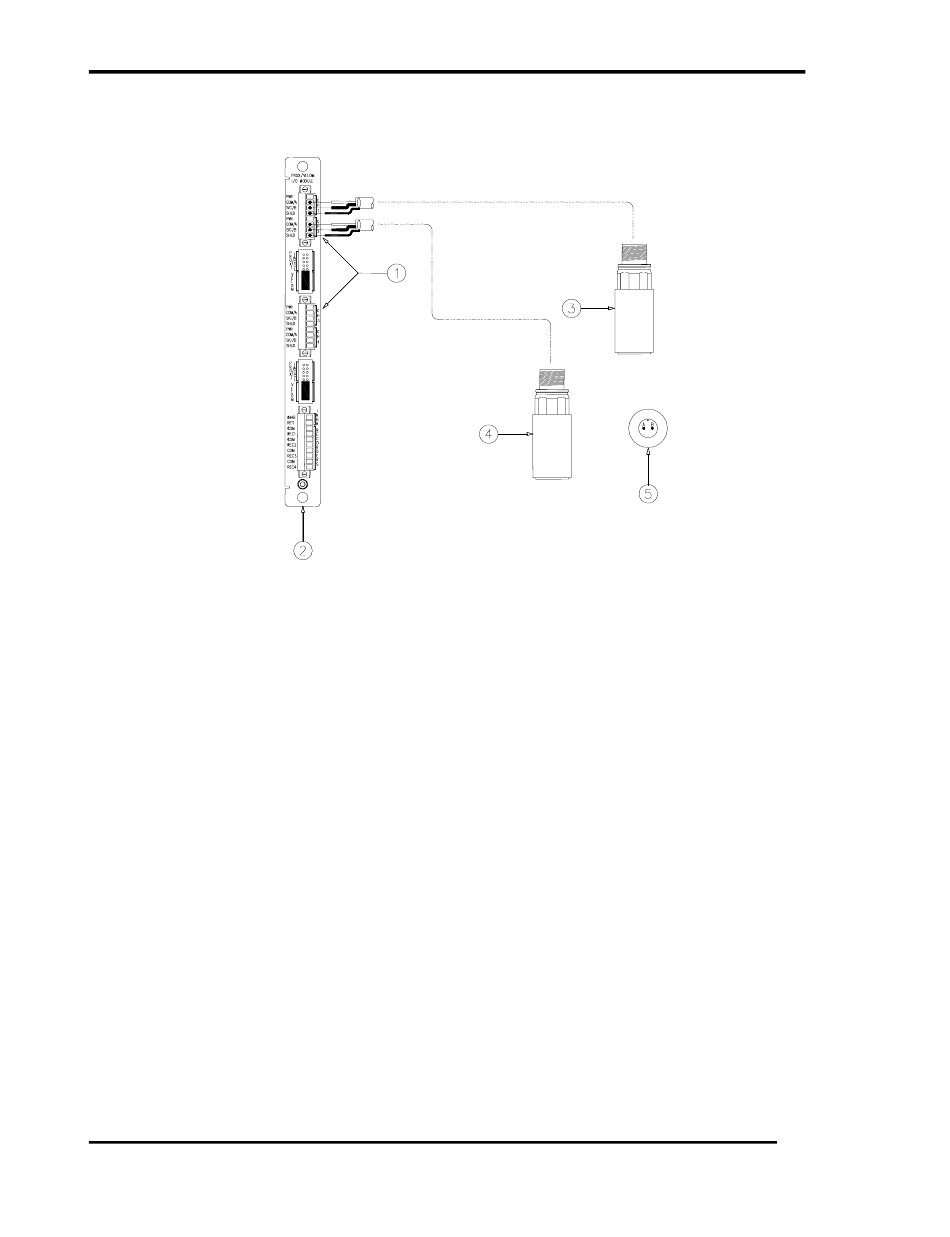

(1) 3500/42 Prox/Velom I/O Module with internal terminations, Velomitor®
(2) Wiring shown for Channels 1 and 2. Wiring typical for Channels 3 and 4.
(3) Channel 1 Velomitor® Sensor
(4) Channel 2 Velomitor® Sensor
(5) Velomitor® Sensor top view
Figure 1-2. 3500/42 Monitor with Prox/Velom I/O Module
