Bently Nevada Velomitor Sensor Operation Manual page 20

PART NUMBER 330533 - AXX (SEE NOTE)
NOTE
ORDER IN INCREMENTS OF 1.0 FOOT (0.30 m)
EXAMPLE:
0 2 2 FEET (0.61 m)
2 5 25 FEET (7.6 m)
MINIMUM LENGTH = 2 FEET (0.61 m)
MAXIMUM LENGTH = 99 FEET (30 m)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)

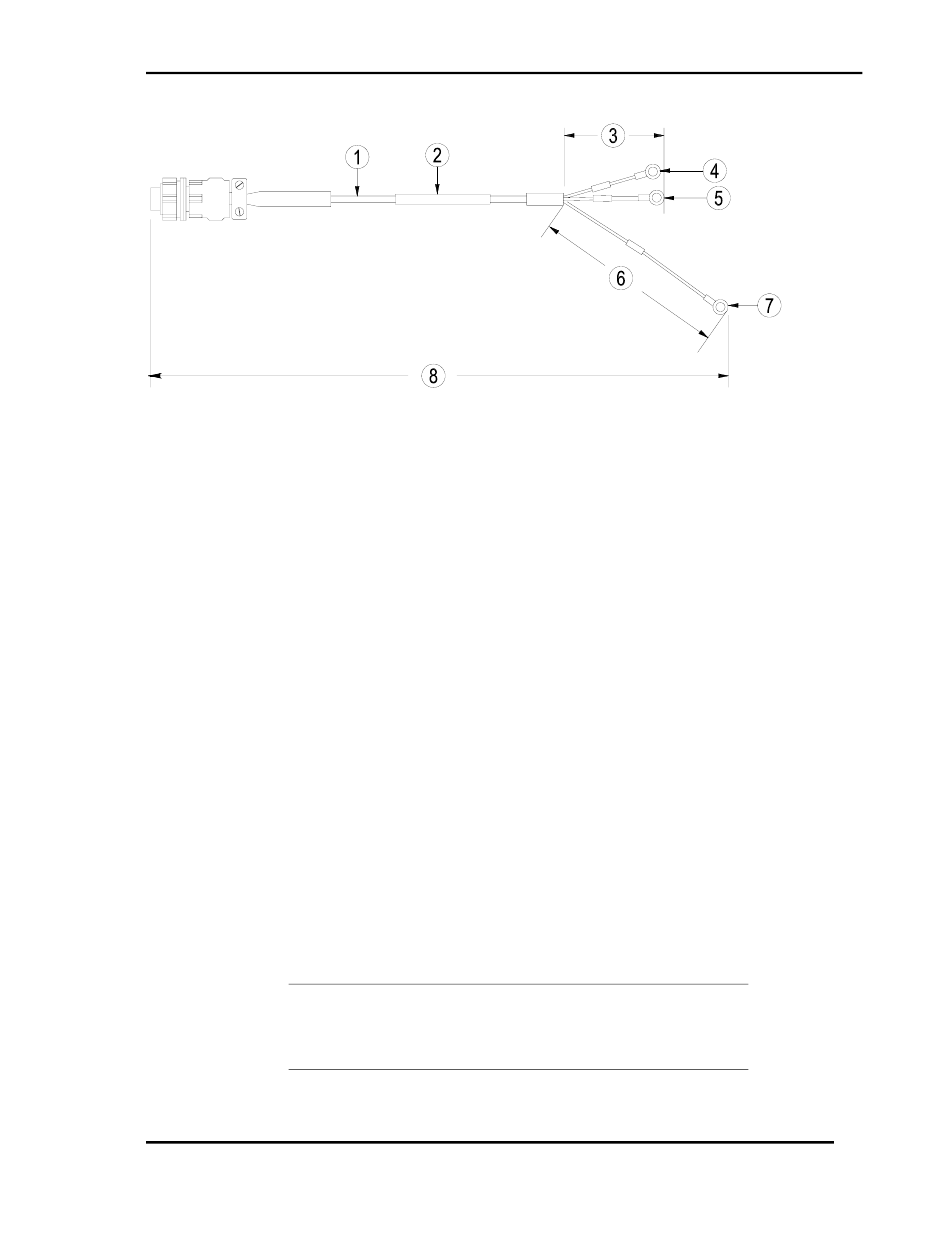

Figure 1-9. 330533 Cable for use with 330530 Velomitor® Sensor
Application Advisory: This cable is not like most other Velomitor
cables in that the shield and drain wire are connected to the sensor's
connector. The sensor is connected to the machine that should be
correctly grounded. So the sensor is the primary shield grounding point.
See the special installation details in the section below.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Cable 2-18 AWG conductor shielded, Tefzel insulated
Clear shrink tubing, 63.5 mm (2.5 in)
51 mm ± 13 mm (2.00 in ± 0.5 in)
"A", white
"B", black
126 mm ± 13 mm (5.00 in ± 0.5 in)
SHLD, green
Overall length ± 150 mm (± 6.0 in)
Section 1 – Operating Information
15
