Bently Nevada Velomitor Sensor Operation Manual page 18

PART NUMBER 106765 - AXX (SEE NOTE)
1. 2-pin connector
2. Stainless steel armor, FEP coated
3. 7/8" single snap-grip hose clamp
4. 15/32" single snap-grip hose clamp
5. BN part number and serial number
label
6. "A", white
7. 38.1 mm (1.50 in) maximum
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
8. 14.5 mm (0.57 in) maximum
9. Fluorosilicone elastomer oil-resistant boot
10. 2-conductor shielded and jacketed cable
11. Approvals label
12. "B", black
13. "SHLD", green
14. Nickel-plated copper Teflon insulated ring terminal
(size #6 stud) typical, 3 places

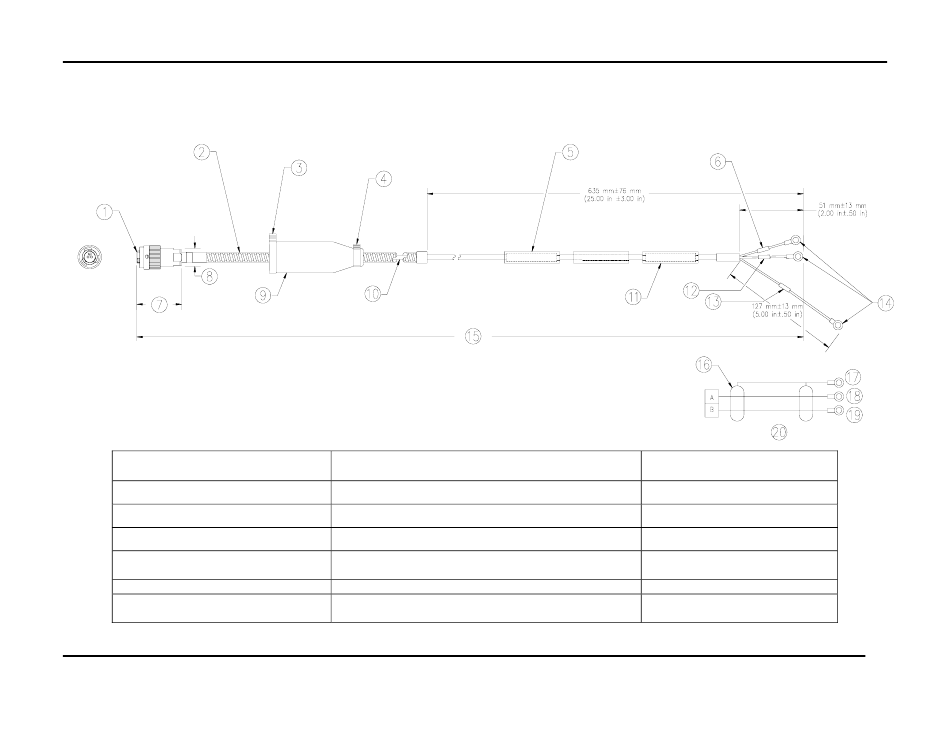

Figure 1-8. 106765 Cable for use with 330525 Velomitor® Sensor
Section 1 – Operating Information
15. Overall length ± 150 mm (± 6 in)
16. Shield
17. Green
18. White
19. Black
20. Figure B, Wiring Diagram
13
