330500 Velomitor Sensor, 330525 Velomitor XA Sensor, 330530 Radiation Resistant Velomitor Sensor Operation Manual

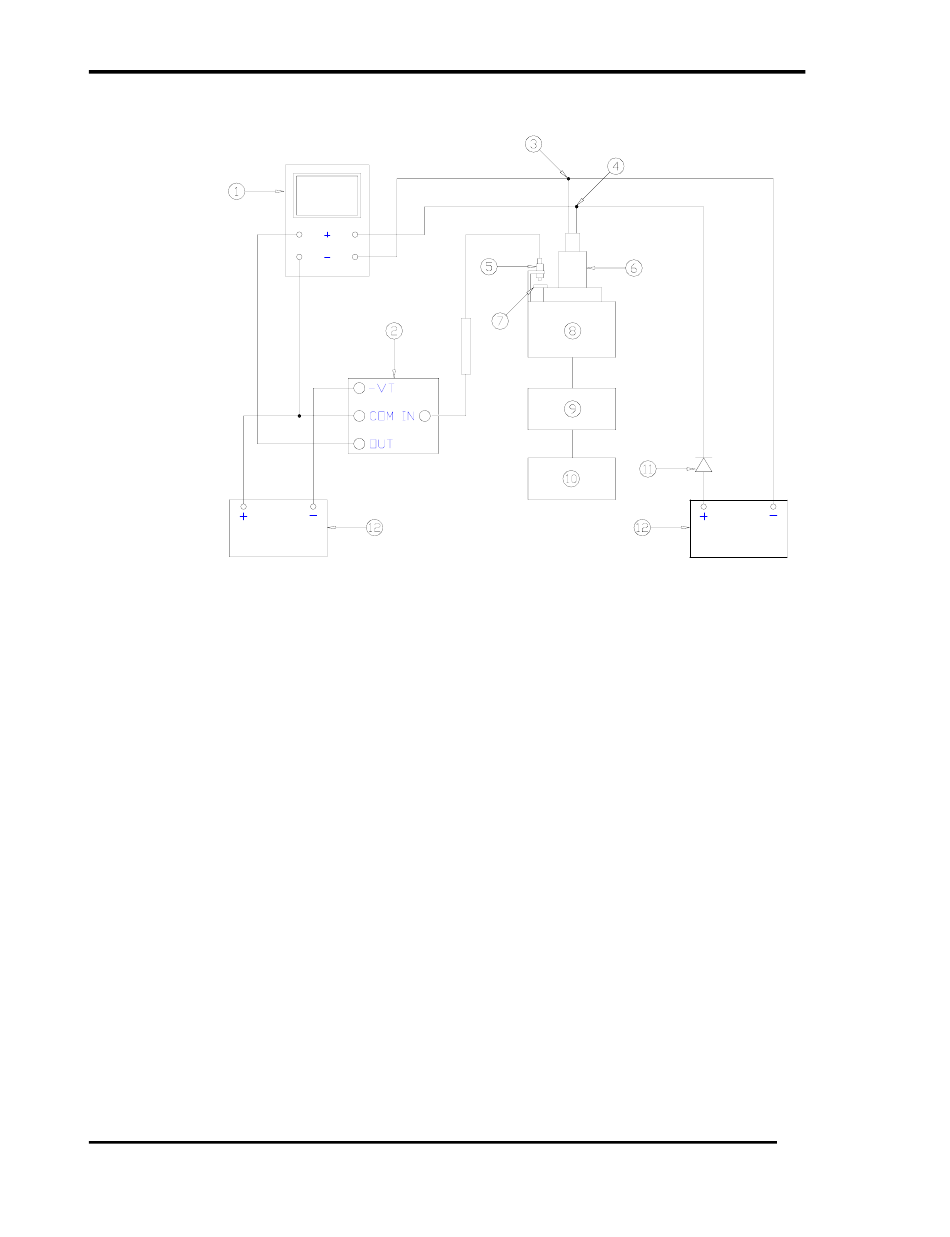

3.1 Test Setup
(1) Oscilloscope
(2) Proximitor® Sensor
(1) Pin B (black)
(2) Pin A (white)
(3) Probe
(4) Velomitor® Sensor
(5) Target
(6) Shake table
(7) Power amplifier
(8) Signal generator
(9) 3 mA current diode
(10) 24Vdc TK-15
