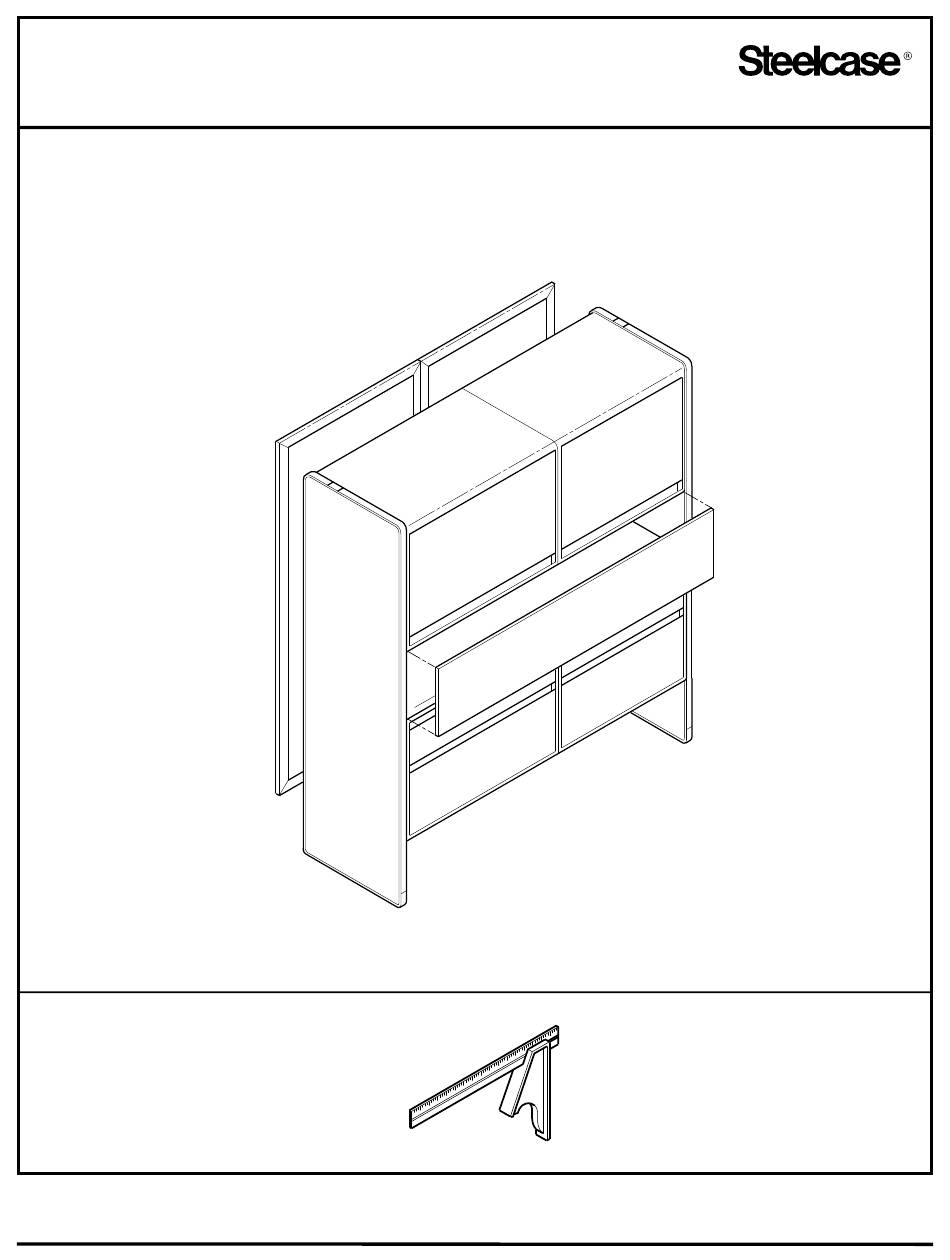

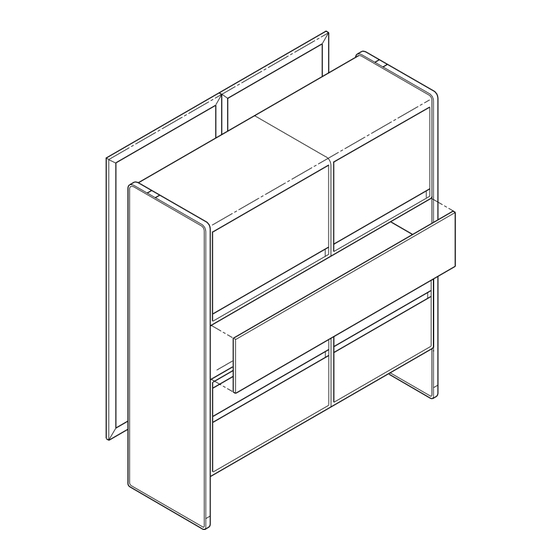

- Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 Tackboard Installation To Series 9000 Furniture (Type Three) ® Tools Assembly Directions Printed In U.S.A. 93-9501112 A Page 1 of 4...
- Page 2 NOTE: All tackboards attach with pressure sensitive pads on backs. Listed below is a chart to show you the style number, size, and standard Series 9000 furniture units to which these style tackboards can be attached. Style Number Overall Size To Be Used With 45”...
- Page 3 Installing upper and lower channels Remove protective paper and position channels. Channels must be located 1” from rear edge of UPPER CHANNEL work surface and 1” in from back of upper cases. NOT USED After properly locating channels, press down to ON 53”...
- Page 4 Rear tackboard installation Remove protective paper from attaching pads on back of one tackboard. Position tackboard to back of furniture unit by placing outer edge of tackboard against end panel trim and the top edge at the tangent point of top case radius.
