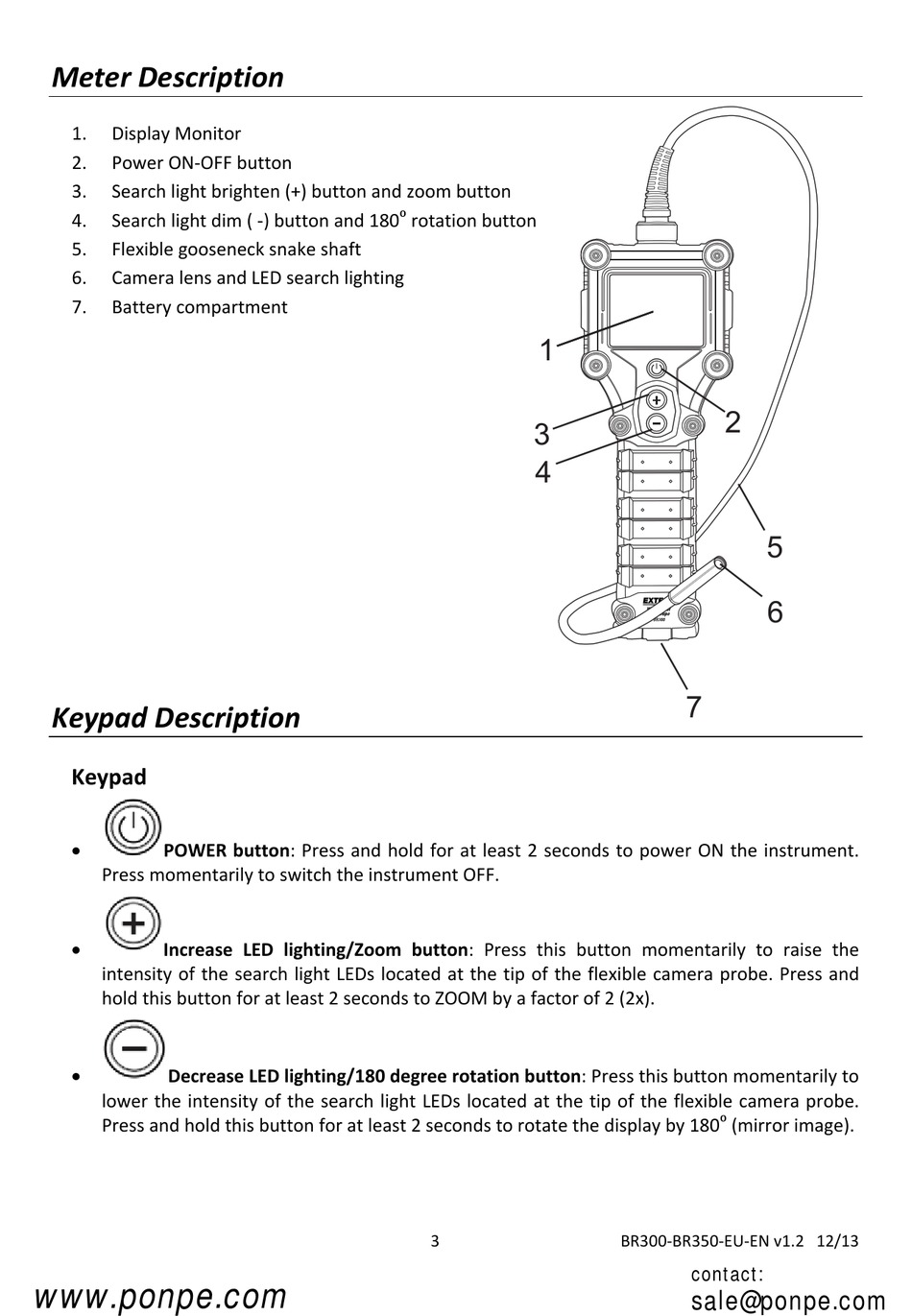

Meter Description

1.
Display Monitor
2.
Power ON‐OFF button
3.
Search light brighten (+) button and zoom button
4.
Search light dim ( ‐) button and 180
5.
Flexible gooseneck snake shaft
6.
Camera lens and LED search lighting
7.
Battery compartment













Keypad Description

Keypad
POWER button: Press and hold for at least 2 seconds to power ON the instrument.
Press momentarily to switch the instrument OFF.
Increase  LED  lighting/Zoom  button:  Press  this  button  momentarily  to  raise  the
intensity of the search light LEDs located at the tip of the flexible camera probe. Press and
hold this button for at least 2 seconds to ZOOM by a factor of 2 (2x).
Decrease LED lighting/180 degree rotation button: Press this button momentarily to
lower the intensity of the search light LEDs located at the tip of the flexible camera probe.
Press and hold this button for at least 2 seconds to rotate the display by 180


www.ponpe.com
o
 rotation button
1
3
4
3                                             BR300‐BR350‐EU‐EN v1.2   12/13
2
5
6
7
o
 (mirror image).
