PowerFlex 6000 Drive (P_PF6000)

Controller Code

Table 6 - P_PF6000 Drive InOut Parameters
Tag Name Data Type
Inp P_PF6000_Inp
Out P_PF6000_Out
Ref_FaultCodeList P_DescList
12
This section describes the parameter references for this Add-On Instruction.

PowerFlex Drive InOut Structure

InOut parameters are used to link the Add-On Instruction to external tags that
contain necessary data for the instruction to operate. These external tags must be
of the data type shown.
Description
PowerFlex 6000 input assembly.
PowerFlex 6000 output assembly.
Tag containing list of fault codes (DINT) and descriptions (STRING_40).
The user-defined data types (UDTs) and the Array tag containing the list of
TIP
PowerFlex 6000 fault codes and descriptions are included in the RUNG import
that brings in the P_PF6000 Add-On Instruction. See the programming
example on

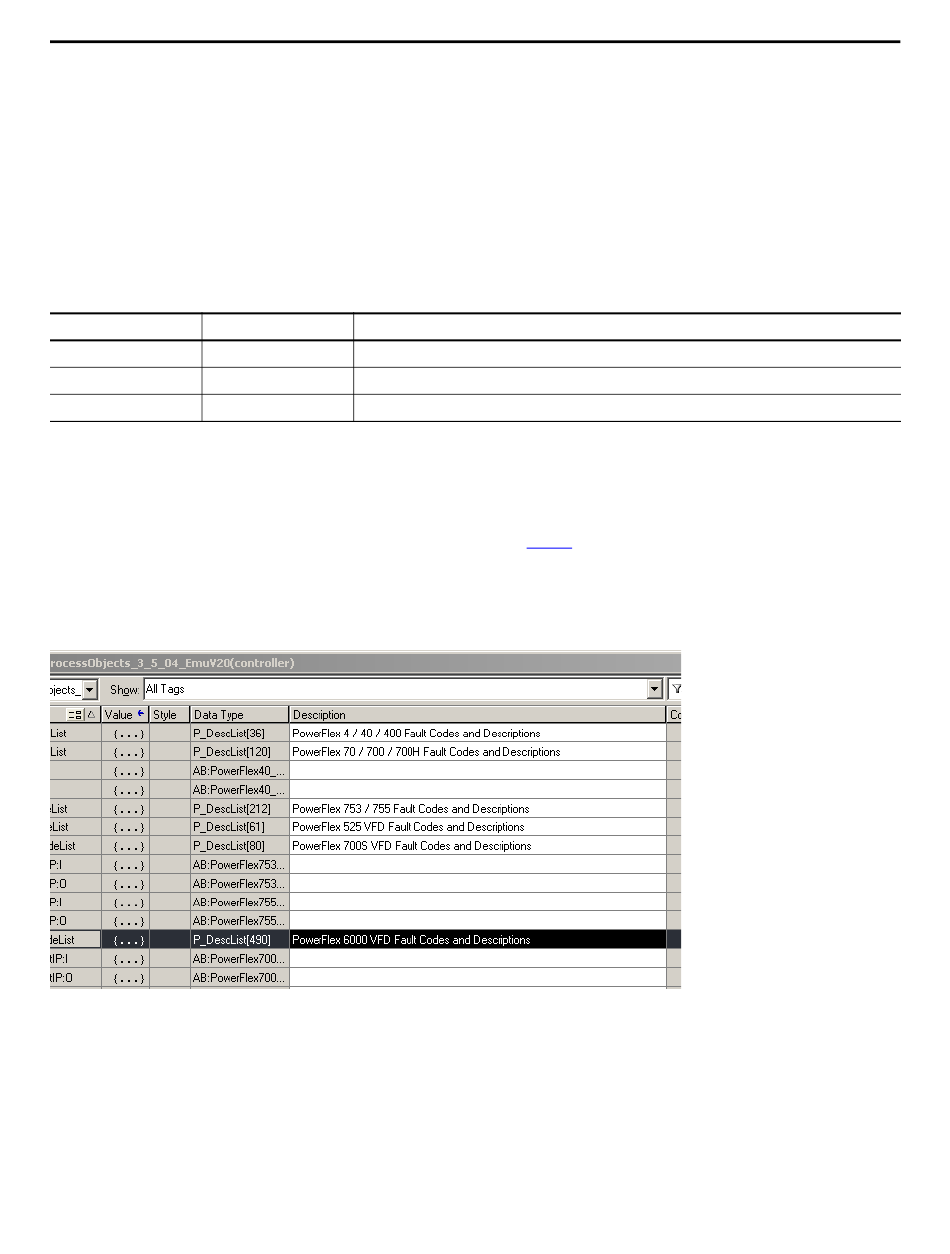

The figure shows the drive fault table tags that are in each template.
Make sure the tag 'PF6000_FaultCodeList' is entered in the P_PF6000
Ref_FaultCodeList parameter.
Rockwell Automation Publication SYSLIB-RM057A-EN-P - January 2017
page 28 for details.
