Montageanleitung
Montageanleitung
PV Aufbaudosenbuchse
PV-ADBP4-S2, PV-ADBP4-S2-UR
PV Aufbaudosenstecker
PV-ADSP4-S2, PV-ADSP4-S2-UR
PV Aufbaudosenbuchse mit Leitung
MC-K.../PV-ADBP4-S2, MC-K.../PV-ADBP4-S2-UR
PV Aufbaudosenstecker mit Leitung
MC-K.../PV-ADSP4-S2, MC-K.../PV-ADSP4-S2-UR
Inhalt
Sicherheitshinweise ����������������������������������������������������������������� 2-4
Erforderliches Werkzeug ��������������������������������������������������������������5
Abisolieren �����������������������������������������������������������������������������������7
Crimpen ��������������������������������������������������������������������������������������7
Montage der Kupplungen ������������������������������������������������������������8
Montage-Prüfung ������������������������������������������������������������������������9
Stecken und Trennen �����������������������������������������������������������������10
Technische Daten ����������������������������������������������������������������������11

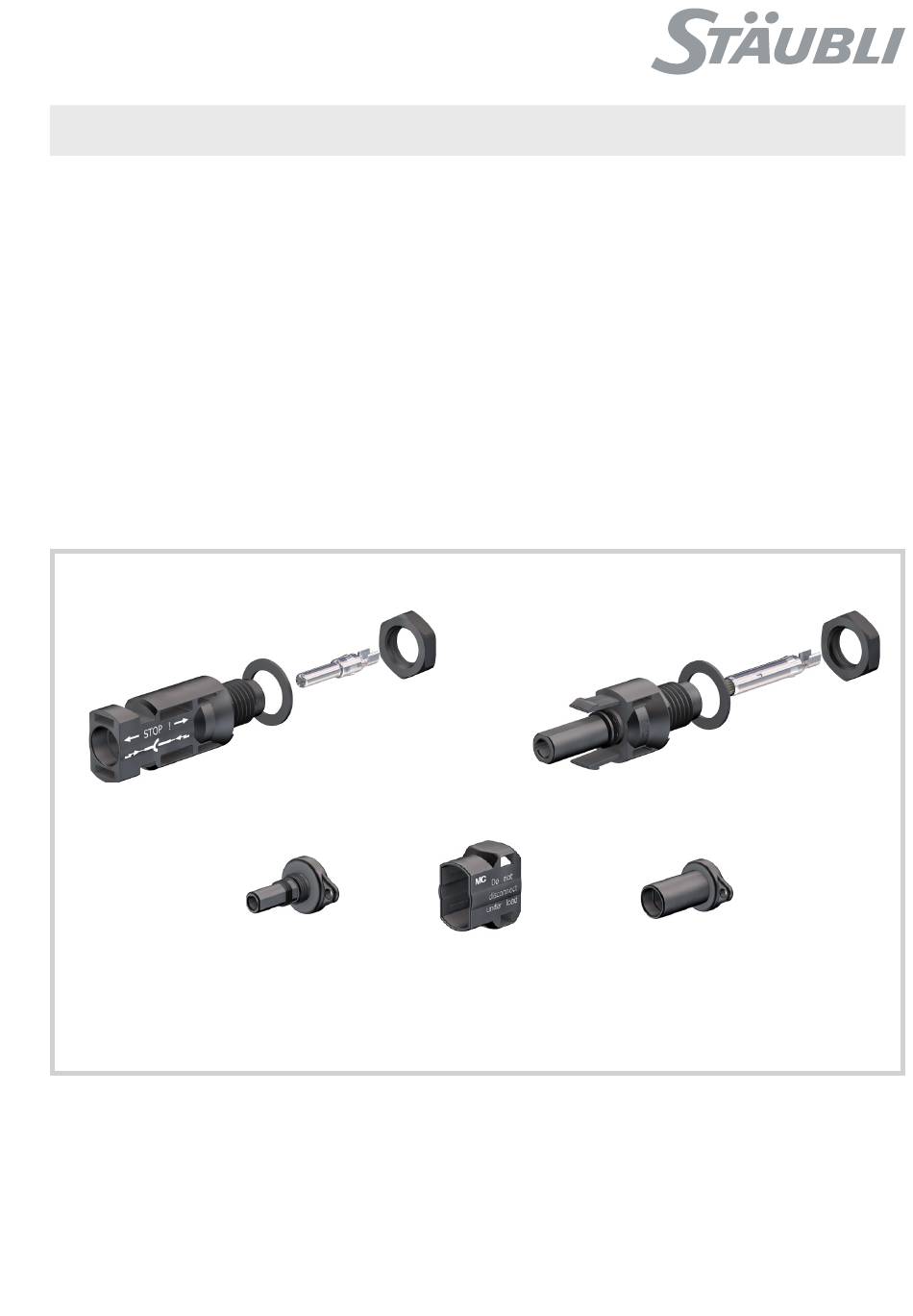

Aufbaudosenstecker
Male panel receptacle
PV-ADSP4-S2
PV-ADSP-S2-UR
Optional:
PV-SVK4
MA000 (de_en)
MA275 (de_en)
Assembly instructions
Assembly instructions
PV Female panel receptacle
PV-ADBP4-S2, PV-ADBP4-S2-UR
PV Male panel receptacle
PV-ADSP4-S2, PV-ADSP4-S2-UR
PV Female panel receptacle with cable
MC-K.../PV-ADBP4-S2, MC-K.../PV-ADBP4-S2-UR
PV Male panel receptacle with cable
MC-K.../PV-ADSP4-S2, MC-K.../PV-ADSP4-S2-UR
Content
Safety Instructions ������������������������������������������������������������������� 2-4
Tools required ������������������������������������������������������������������������������5
Stripping ��������������������������������������������������������������������������������������7
Crimping ��������������������������������������������������������������������������������������7
Installation of couplings����������������������������������������������������������������8
Assembly check ��������������������������������������������������������������������������9
Plugging and unplugging �����������������������������������������������������������10
Technical data ���������������������������������������������������������������������������11
Aufbaudosenbuchse
Female panel receptacle
PV-ADBP4-S2
PV-ADBP4-S2-UR
PV-SSH4
PV-BVK4
