8

Electrical wiring

8.1 Electrical wiring diagram

1
C
3
D
A
B

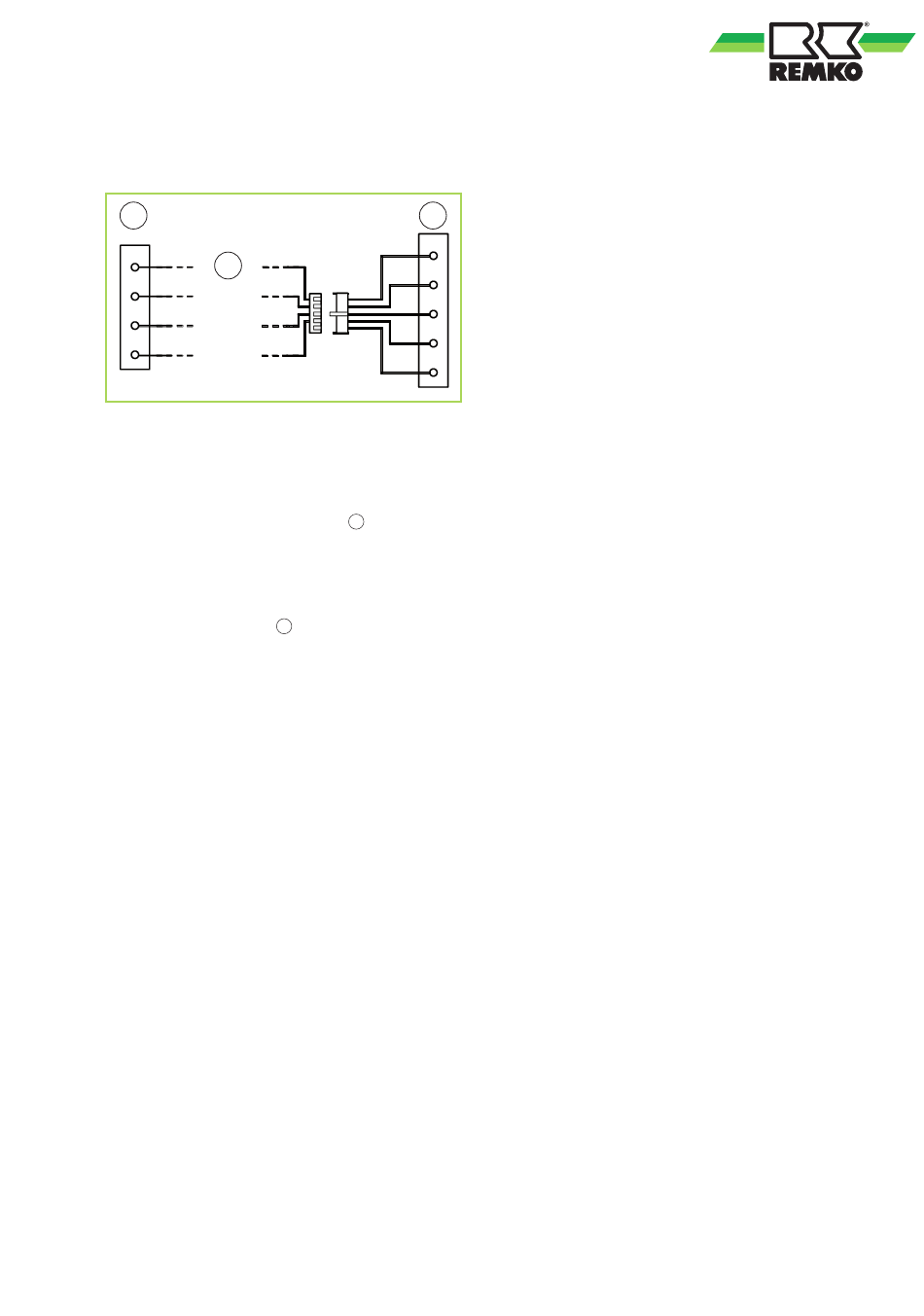

Fig. 4: Electrical wiring diagram
1:
Wired remote control
2:
Indoor unit
3:
On-site extension by way of a
four-core cable (max. 15m)
Colour
Wired remote control
coding
A:
Blue
B:
Gray
C:
Red
D:
Black
Colour
Indoor unit
coding
A:
Brown
B:
Red
C:
Yellow
D:
Black
E:
White
2
A
B
C
D
E
1
2
11
