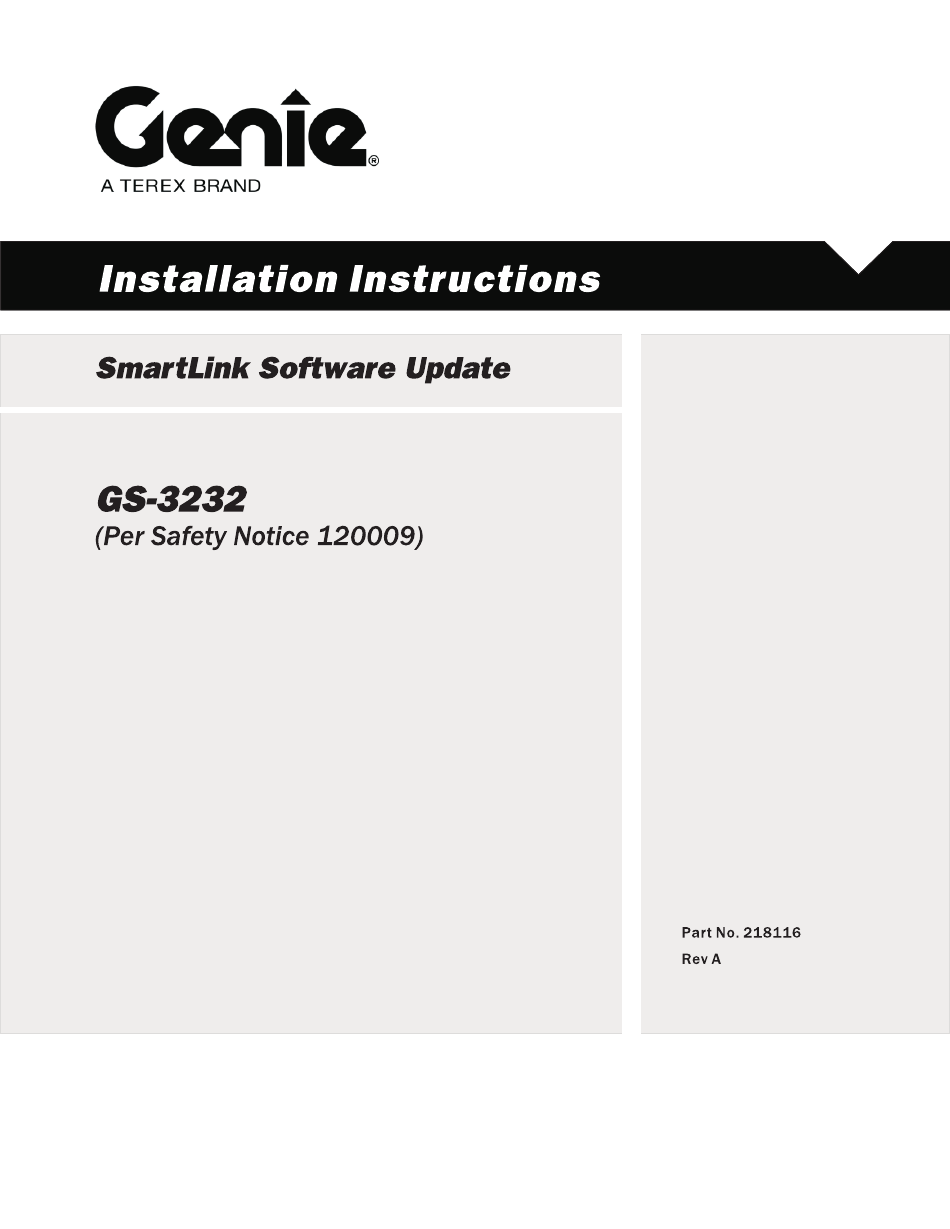

Terex Genie GS-3232 Installation Instructions Manual
Smartlink software update
Hide thumbs
Also See for Genie GS-3232:
- Installation instructions manual (15 pages) ,
- Service and repair manual (341 pages) ,
- Operator's manual (107 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Terex Genie GS-3232
Summary of Contents for Terex Genie GS-3232
-
Page 2: Tools Required
Installation Instructions Introduction REV A Tools required: Laptop or desktop computer with an Ethernet Port and Internet Browser Torx T10 screw driver CAT5 Ethernet Cable of suitable length Observe and Obey: Glossary of terms This procedure shall be completed by a person trained and qualified on the repair of this ECM - Electronic Control Module. -
Page 3: Diagnostic Port
Installation Instructions Procedure REV A Updating Machine Software 6 Locate the diagnostic port on the side of the GCON. 1 Turn on the laptop. Using a thumb drive: 2 Insert the thumb drive (Genie part number 218093) in the USB port. All applications: 3 At the GCON, turn the key switch to the GCON DIAGNOSTIC... - Page 4 Installation Instructions PROCEDURE REV A 10 Launch a web browser such as Internet 13 Select the Reprogram Device (s) button to Explorer ® or Firefox ® on your PC or laptop. start the ECM software update. Type in the IP address from steps 8 and 9 into Result: The following screen will be displayed the web browser address bar and press enter.
-
Page 5: Test Procedure
Installation Instructions REV A PROCEDURE Test Procedure 4 Press and hold the outrigger enable and extend buttons. 1 Turn the key switch to the PCON position. Pull Result: The alarm continues to sound and the out the red Emergency Stop buttons to the on outriggers do not extend. - Page 6 Installation Instructions PROCEDURE REV A 9 Perform function test. Refer to the Operator's If you have any further questions regarding these Manual on your machine. instructions or need assistance, please contact the Genie Service Department at one of the following 10 Return the machine to service.
- Page 7 SAFETY NOTICE 120009 Completion Form Your signature on this form will verify that you have performed the software update on the machines listed below. Fax to: United States 877-738-7530 United Kingdom 0044 1476 584 330 Canada 425-498-7530 France 0033 237 260 998 Australia 61 733751002 Germany...
