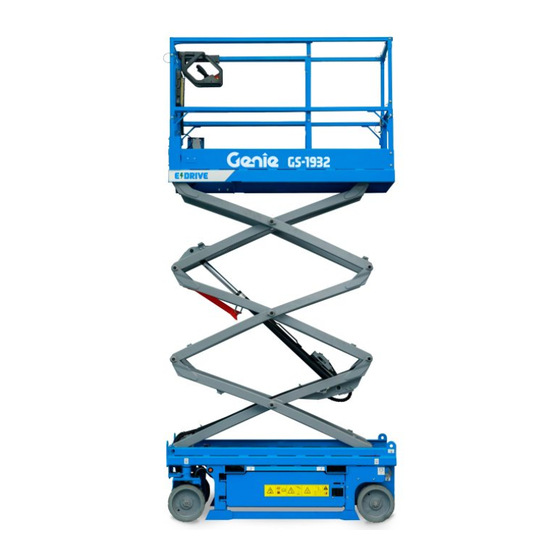

Terex Genie GS-1932 XH Operator's Manual
Hide thumbs
Also See for Genie GS-1932 XH:
- Service and repair manual (261 pages) ,
- Operator's manual (107 pages) ,
- Maintenance manual (99 pages)
Table of Contents
Advertisement
Quick Links
Operator's Manual
GS
-1530/32
™
GS
-1930/32
™
GS
-1932 XH
™
GS
-2032
™
GS
-2632
™
GS
-3232
™
GS
-2046
™
GS
-2646
™
GS
-2646 XH
™
GS
-3246
™
GS™-3246 XH
GS™-4046
Serial Number Range
from GS30P-200101
from GS32P-200101
from GS46P-200101
from GS30D-40101
from GS32D-10101
from GS46D-20101
ANSI/CSA
North America
South America
Asia
with
Maintenance
Information
Original Instructions
Eighth Edition
Second Printing
Part No. 1296776GT
Advertisement
Table of Contents
Related Manuals for Terex Genie GS-1932 XH
Summary of Contents for Terex Genie GS-1932 XH
- Page 1 Operator's Manual Serial Number Range -1530/32 ™ from GS30P-200101 ANSI/CSA from GS32P-200101 North America from GS46P-200101 -1930/32 ™ from GS30D-40101 South America from GS32D-10101 Asia from GS46D-20101 -1932 XH ™ -2032 ™ -2632 ™ with -3232 ™ Maintenance -2046 Information ™...
- Page 2 Operator's Manual Eighth Edition • Second Printing Operating Instructions Operating Instructions Fundamentals The Operating Instructions section provides instructions for each aspect of machine operation. It is the operator’s responsibility to follow all the safety rules and instructions in the operator’s, safety, and responsibilities manuals.
-
Page 3: Emergency Stop
Eighth Edition • Second Printing Operator's Manual Operating Instructions Emergency Stop Operation from Platform Push in the red Emergency Stop button to the off Be sure the battery pack is connected before position at the ground controls or the platform operating the machine. - Page 4 Operator's Manual Eighth Edition • Second Printing Operating Instructions Note: If the outrigger enable and extend buttons To Position Outriggers (GS-3232 models) are released too soon during extension, the To Extend Outriggers: outrigger indicator lights will continue to flash green, indicating the outriggers are not contacting the Press the outrigger function button.
- Page 5 Eighth Edition • Second Printing Operator's Manual Operating Instructions To Steer To Drive Press the drive function button. On the LED Press the drive function button. On the LED screen, a circle below the drive function symbol screen, a circle below the drive function symbol will turn on.
- Page 6 Operator's Manual Eighth Edition • Second Printing Operating Instructions To select drive speed To determine the slope grade: Measure the slope with a digital inclinometer OR The drive controls can operate in two different drive use the following procedure. speed modes. When the drive speed button light is on, slow drive speed mode is active.
-
Page 7: Platform Overload
Eighth Edition • Second Printing Operator's Manual Operating Instructions Operational indicator codes Platform Overload If the platform controls LED or ground controls LCD If the platform controls LED diagnostic readout diagnostic readout displays an operational displays a flashing OL and the ground controls indicator code such as LL, the fault condition must LCD diagnostic readout displays OL: Platform repaired or removed before resuming machine... -
Page 8: Battery Level Indicator
Operator's Manual Eighth Edition • Second Printing Operating Instructions Tilt Sensor Activation Settings Battery Level Indicator Tilt Sensor Activation Settings Use the LED diagnostic readout to determine the battery level. Chassis Angle (side to side) 1.5° Chassis Angle (front to back) 3°... -
Page 9: How To Use The Safety Arm
Eighth Edition • Second Printing Operator's Manual Operating Instructions At the rear of the main deck, remove the two How to Use the Safety Arm main deck lock pins. Raise the platform approximately 8ft/2.4 m to Keep hands free of pinch points. 13 ft/4.0 m from the ground. -
Page 10: How To Raise The Guardrails
Operator's Manual Eighth Edition • Second Printing Operating Instructions GS-2046, GS-2646, GS-3246 How to Raise the Guardrails The platform railing system consists of three fold Follow the fold down instructions but in reverse down rail sections for the extension deck and three order, ensuring all lock pins are in place and sections for the main deck. -
Page 11: Observe And Obey
Eighth Edition • Second Printing Operator's Manual Operating Instructions Lift Tools Pipe Cradle Observe and Obey: Instructions Lift Tools Pipe Cradle must be mounted on the inside of the platform. The Lift Tools Pipe Cradle assembly consists of 2 pipe cradles positioned at either side of the ... - Page 12 Operator's Manual Eighth Edition • Second Printing Operating Instructions Large pipe cradle capacity: 6” Maximum diameter. Lift Tools Pipe Cradle Operation See load chart for weight capacity. Place the load so that it rests in both Lift Tools Do not operate unless you are adequately Pipe Cradles.
- Page 13 Eighth Edition • Second Printing Operator's Manual Operating Instructions Panel Carrier Instructions Observe and Obey: The Lift Tools Panel Carrier assembly consists of a Lift Tools Panel Carrier must be mounted on carrier assembly and a strap assembly. the left side of the platform. ...
- Page 14 Operator's Manual Eighth Edition • Second Printing Operating Instructions Installation of Panel Carrier Strap Maximum Lift Tools Panel Carrier Capacity Load Chart Open the clamp and install it on the mounting tab with the 1/4" x 0.75" bolt (6). GS-1530, GS-1532, GS-1930, 100 lbs GS-1932, GS-1932 XH 45.4 kg...
- Page 15 Eighth Edition • Second Printing Operator's Manual Operating Instructions Lift Tools Work Tray Instructions Observe and Obey: Lift Tools Work Tray Installation The Lift Tools Work Tray assembly consists of one tray and two mounting brackets with hardware. Lift Tools Work Tray must be installed on the inside of the platform.
- Page 16 Operator's Manual Eighth Edition • Second Printing Operating Instructions Lift Tools Work Tray Operation Platform Height Restriction Instructions Place the load so that it rests inside the Lift Tools Work Tray. Platform Height Restriction allows the platform to be limited to a specific height. The Lift Tools Work Tray assembly weighs 4 lbs/1.8 kg.
- Page 17 Eighth Edition • Second Printing Operator's Manual Operating Instructions To remove the height limit: Observe and Obey: Platform Height Restriction Turn the key switch to platform control. Pull out the red Emergency Stop button to the Read, understand and obey all warnings and on position at the ground controls.
-
Page 18: To Charge Battery
Operator's Manual Eighth Edition • Second Printing Operating Instructions Standard Batteries Remove the battery vent caps and check the battery acid level. If necessary, add only enough distilled water to cover the plates. Do not overfill prior to the charge cycle. Replace the battery vent caps. -
Page 19: Transport And Lifting Instructions
Eighth Edition • Second Printing Operator's Manual Transport and Lifting Instructions Transport and Lifting Instructions The machine must be on a level surface or secured before releasing the brakes. Do not allow the rails to fall when the snap pins are removed. - Page 20 Operator's Manual Eighth Edition • Second Printing Transport and Lifting Instructions Brake Release Operation, Brake Release Operation, E-Drive Hydraulic Drive Option Option Chock the wheels to Chock the wheels or prevent the machine from tracks to prevent the rolling. machine from rolling. Be sure the winch line is properly secured to Be sure the winch line is properly secured to the drive chassis tie points and the path is clear...
-
Page 21: Securing To Truck Or Trailer For Transit
Eighth Edition • Second Printing Operator's Manual Transport and Lifting Instructions Inspect the entire machine for loose or unsecured Securing to Truck or Trailer for items. Transit Use chains or straps of ample load capacity. Always use the extension deck lock when the machine is transported. -
Page 22: Lifting The Machine With A Forklift
Operator's Manual Eighth Edition • Second Printing Transport and Lifting Instructions Lifting the Machine with a Forklift Be sure the extension deck, controls and component trays are secure. Remove all loose items on the machine. Fully lower the platform. The platform must remain lowered during all loading and transport Observe and Obey: procedures. - Page 23 Eighth Edition • Second Printing Operator's Manual Transport and Lifting Instructions Lifting Instructions, GS-30 Fully lower the platform. Be sure the extension deck, controls and component trays are secure. Remove all loose items on the machine. Determine the center of gravity of your machine using the table and the picture on this page.
