88 5180 15
Executive Desk
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

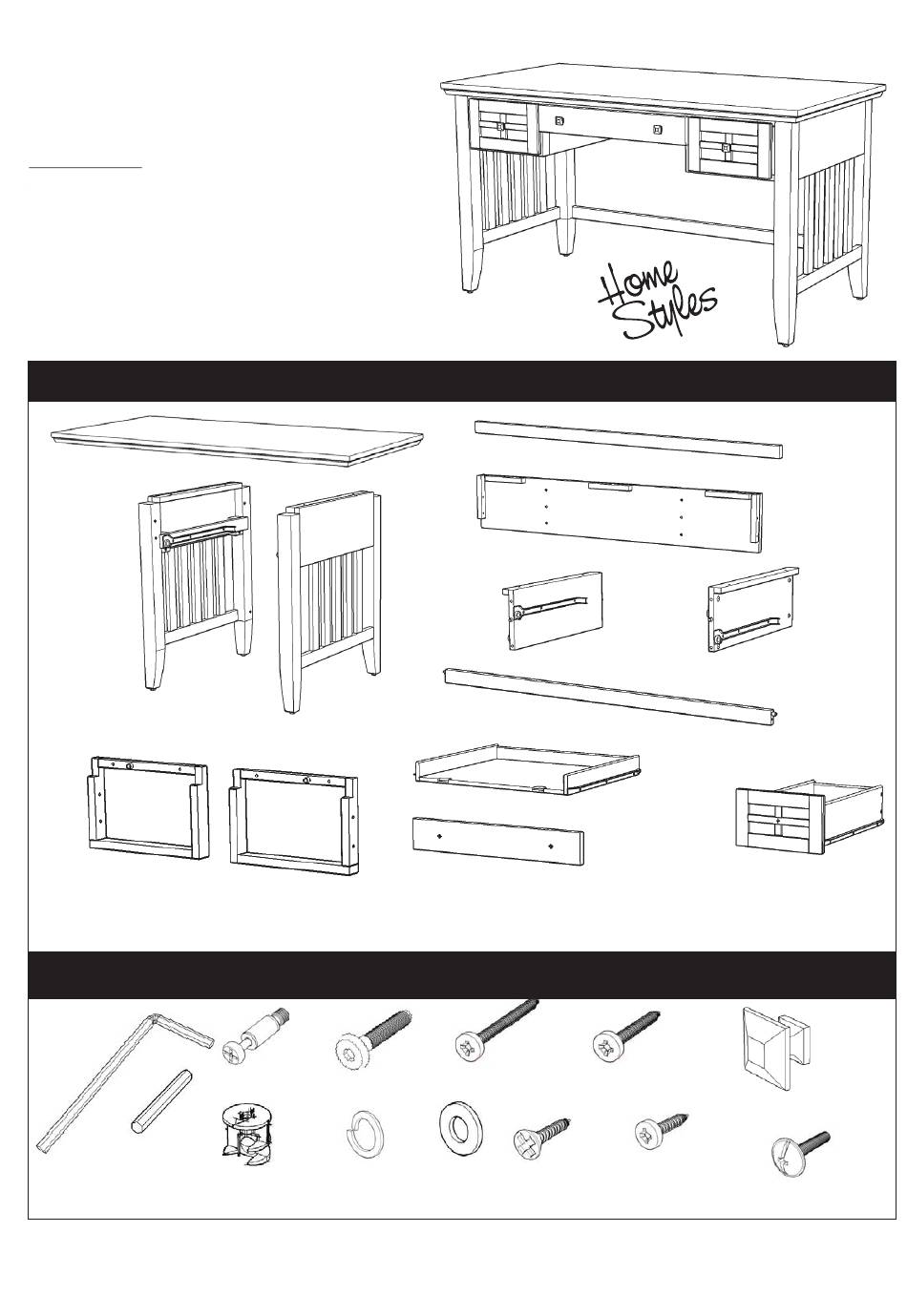

PART LIST
A.
Top
1 pc.
B.
Side Frame
1 pc.
D.
Front Frame
1 pc.
HARDWARE LIST
Small
Hex Wrench
Hex Wrench
1 pc.
1 pc.
Tools required for assembly : Phillips screwdriver, Level
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
C.
Side Frame
1 pc.
E.
Front Frame
1 pc.
M6x32
Cam Lock Screw
Head Cap Bolt
8 pcs.(+1 extra)
21 pcs.(+1 extra)
Cam Lock
Spring Washer
8 pcs.(+4 extra)
21 pcs.(+1 extra)
L.
Keyboard
1 pc.
M3x32
Wood Screw
6 pcs.(+1 extra)
M3x10
Wood Screw
Flat Washer
for Hinge
21 pcs.(+1 extra)
6 pcs.(+1 extra)
H.
Divider
1 pc.
K.
Keyboard
1 pc.
M.
Drawer
2 pcs.
(Please refer to the last page(s) of these
instructions for drawer assembly steps.)
M3x25
Wood Screw
for Drawer Side
16 pcs.(+1 extra)
M3x16
Wood Screw
for Drawer Bottom
8 pcs.(+1 extra)
F.
Front Rail
1 pc.
G.
Back Panel
1 pc.
I.
Divider
1 pc.
J.
Stretcher
1 pc.
Pull Handle
4 pcs.
M4x38
Machine Screw
4 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 88 5180 15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles 88 5180 15

  • Page 1 Drawer Bottom Machine Screw 1 pc. 1 pc. 8 pcs.(+4 extra) 21 pcs.(+1 extra) 21 pcs.(+1 extra) 6 pcs.(+1 extra) 8 pcs.(+1 extra) 4 pcs. Tools required for assembly : Phillips screwdriver, Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/5 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Key Wrench in a safe place as you may need to tighten up the Bolts in the future. * Use a soft cloth between these parts and the floor.
  • Page 3 Assembly Instructions 3/5 Wood Screw Flat Washer Spring Washer Head Cap Bolt STEP 4 Attach Side Frame (C) to unit with Head Cap Bolts, Spring Washers and Flat Washers. (See Figure 2) Attach Stretcher (J) to unit with Wood Screw. (See Figure 3) Attach Side Frame (B) to unit with Head Cap Bolts, Spring Washers, Flat Washers and Wood Screw.
  • Page 4 Assembly Instructions 4/5 Wood Screw (for Hinge) STEP 6 Attach Keyboard (L) to Keyboard (K) with Wood Screws (for Hinge). Attach Pull Handles to Keyboard with Machine Screws. (See Figure 4) Figure 4 STEP 7 Turn unit to its’ upright position. Slide Keyboard and Drawers (M) into place.
  • Page 5: Part List

    Assembly Instructions 5/5 Drawer (M) STEP 1 Attach M1 to M3 and M4, using long wood screws (4X), tighten halfway. Attach M2 to M3 and M4 using long wood screws (4X), tighten halfway. (See Figure 1) Figure 1 MAKE SURE ROLLER IS ON THE BACK STEP 2 Slide M5 into the grooves in M3...
