Arts & Crafts
Dining Hutch
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

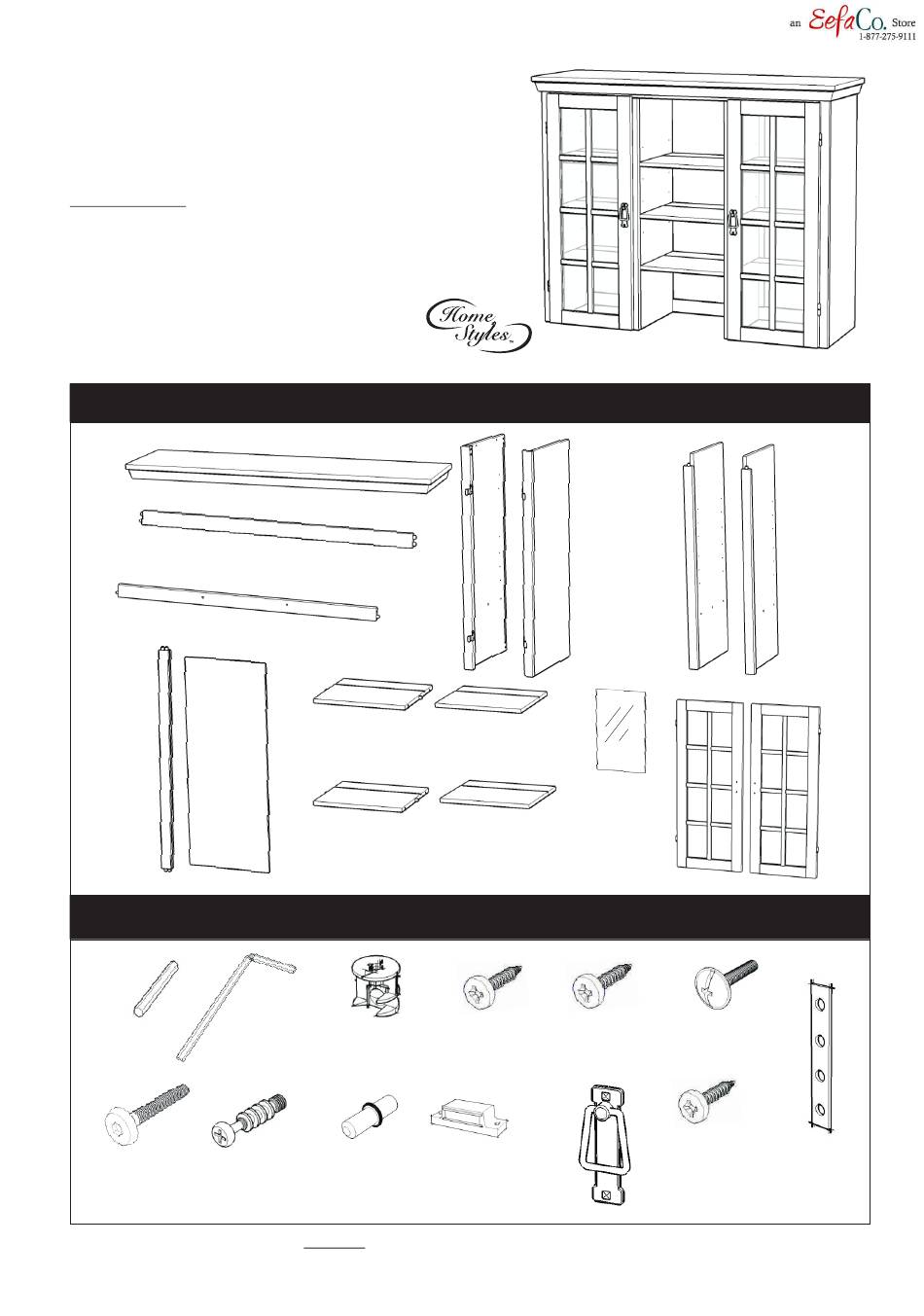

Hutch Unit Part List
A.
Top
1 pc.
F.
Front Rail
1 pc.
G.
Back Stretcher
2 pcs.
H.
Back Piece
2 pcs.
Hardware List
Small
Hex Wrench
Hex Wrench
1 pc.
1 pc.
Head Cap Bolt
Cam Lock Screw
8 pcs. (+1 extra)
16 pcs.(+1 extra)
Tools required for assembly : Phillips screwdriver
Casual Attire For Today's Home
B.
Side Panel
1 pc.
J1.
Fixed Shelf
2 pcs.
K1.
I.
Fixed Shelf
Back Panel
3 pcs.
1 pc.
Cam Lock
Wood Screw
16 pcs.(+1 extra)
12 pcs. (+1 extra)
Magnet
Adjustable Pin
4 pcs.
24 pcs. (+2 extra)
D.
Middle Panel
1 pc.
C.
Side Panel
1 pc.
J2.
Shelf
4 pcs.
L.
Glass Door
4 pcs.
K2.
M.
Shelf
Door
2 pcs.
1 pc.
Wood Screw
Machine Screw
for Magnet
4 pcs.
8 pcs. (+1 extra)
Wood Screw
for Steel Plate
Door
Connector
Pull Handle
8 pcs. (+1 extra)
2 pcs.
E.
Middle Panel
1 pc.
N.
P.
Door
Leg
1 pc.
1 pc.
Steel Plate
Connector
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles KF9119
Summary of Contents for Home Styles KF9119
- Page 1 88 5180 307 Arts & Crafts Dining Hutch IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
- Page 2 Assembly Instructions 2/3 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future. STEP 1 Put Cam Lock Screws into the pre-drilled holes of...
- Page 3 Assembly Instructions 3/3 STEP 4 Attach Front Rail (F) to the unit. Attach Side Panel (C) to the unit with Cam Locks. Cam Lock Head Cap Bolt STEP 5 Turn the unit to its upright position. Insert Adjustable Pins into side panels and middle panels at the desired level.
- Page 4 Attention ! For safety reasons, please follow these additional instructions to prevent the unit from tipping over. HARDWARE LIST Plastic Belt 2 pcs.(+1 extra) Wall Screw (long) 2 pcs.(+1 extra) Wood Screw (short) Bracket Anchor 2 pcs.(+1 extra) 4 pcs.(+1 extra) 2 pcs.(+1 extra) Assembly Instructions Wall Screw...
