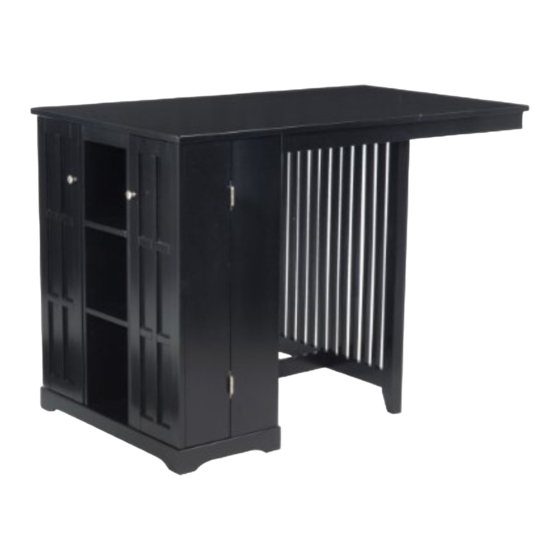

Art & Craft Island
Steamer Trunk Island Bar
(Black Finish)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
I.
Back Panel
2 pcs.
Also need the following from carton 88 5181 942 :
Part List in carton 88 5181 942
Middle Panel (D)
Middle Panel (E)
Side Panel (F)
Side Panel (G)
Back Piece (H)
Front Stretcher (J)
Back Stretcher (K)
Base (L)
Rail (M)
Leg (N)
Shelf (O)
Shelf (P)
Door (Q)
Door (R)
Tools Required For Assembly : Phillips screwdriver
Casual Attire For Today's Home
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
2 pcs.
1 pc.
2 pcs
1 pc.
4 pcs.
2 pcs.
1 pc.
1 pc.
A.
Top
1 pc.
B1.
Rail
1 pc.
C.
Rail
1 pc.
Hardware List in carton 88 5181 942
Small Hex Wrench
Hex Wrench
Head Cap Bolt
Cam Lock Screw
Cam Lock
Wood Screw for Back Panel
Wood Screw (long)
Adjustable Pin
Pull Handle
Machine Screw for Pull Handle
B2.
Rail
1 pc.
1 pc.
1 pc.
14 pcs.
21 pcs.
21 pcs.
9 pcs.
5 pcs.
26 pcs.
2 pcs.
2 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 5181 941
Summary of Contents for Home Styles 88 5181 941
- Page 1 88 5181 941 Art & Craft Island Steamer Trunk Island Bar (Black Finish) IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts.
- Page 2 4 pcs. (+1 extra) Adjustable Pin Machine Screw Back Panel Small Hex Wrench 24 pcs. (+2 extra) 2 pcs. 8 pcs. (+1 extra) 1 pc. For assembly see instructions in carton 88 5181 941 Tools Required For Assembly : Phillips screwdriver...
- Page 3 Assembly Instructions 2/4 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in a safe place as you may need to tighten the Head Cap Bolts in the future. Cam Lock Screw Cam Lock Screw STEP 1 Insert Cam Lock Screws into...
- Page 4 Assembly Instructions 3/4 STEP 3 Attach Front Stretcher (J) to Middle Panel (D) and (E). Attach Middle Panels (D) and (E) to unit from Step 2. Attach Base (L) to unit using Cam Locks. Cam Lock Wood Screw STEP 4 Attach Rails (M) to unit from Step 3 with Wood Screws.
- Page 5 Assembly Instructions 4/4 Cam Lock Screw STEP 5 Attach Rail (C) to Top (A) with Head Cap Bolts. Attach Rails (B1) and (B2) to unit with Head Cap Bolts. Cam Lock Head Cap Bolt Figure 1 Figure 2 STEP 6 Adjustable Pin Attach the Door (Q) and (R) by sliding the door lift hinges into the unit lift hinges.
