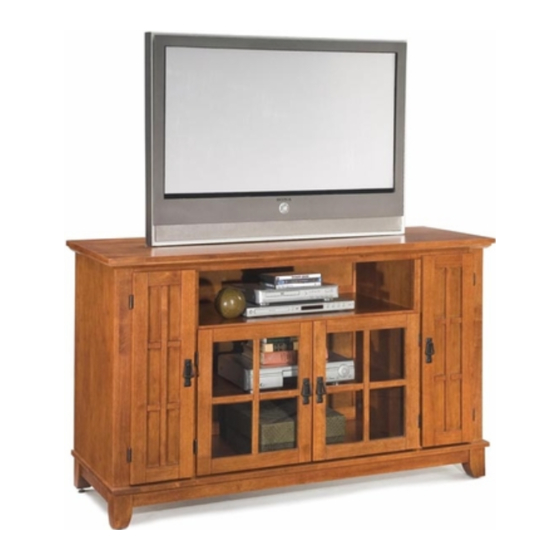

Entertainment Credenza
(Cottage Oak)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
G.
Back Stretcher
2 pcs.
I1.
Back Piece
1 pc.
Shelf
4 pcs.
Hardware List
Small
Hex Wrench
1 pc.
Head Cap Bolt (long)
8 pcs. (+1 extra)
For assembly see instructions in carton 88 5180 102
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
Casual Attire For Today's Home
I2.
Back Piece
1 pc.
O.
Head Cap Bolt
Hex Wrench
4 pcs. (+1 extra)
1 pc.
Cross Dowel
8 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
F.
Front Piece
1 pc.
H.
Back Piece
1 pc.
J.
Back Panel
2 pcs.
Cam Lock
14 pcs.(+1 extra)
Cam Lock Screw
14 pcs.(+1 extra)
K.
Back Panel
1 pc.
Wood Screw
Door
16 pcs. (+1 extra)
Pull Handle
4 pcs.
Machine Screw
Adjustable Pin
8 pcs.
20 pcs. (+2 extra)
N.
Shelf
1 pc.
P.
Base
1 pc.
