Axxess AX-AM-AU96 Installation Instructions Manual

Axxess AX-AM-AU96 Installation Instructions Manual

Audi(with mmi radio), hdmi and camera interface 2008-2012

Advertisement

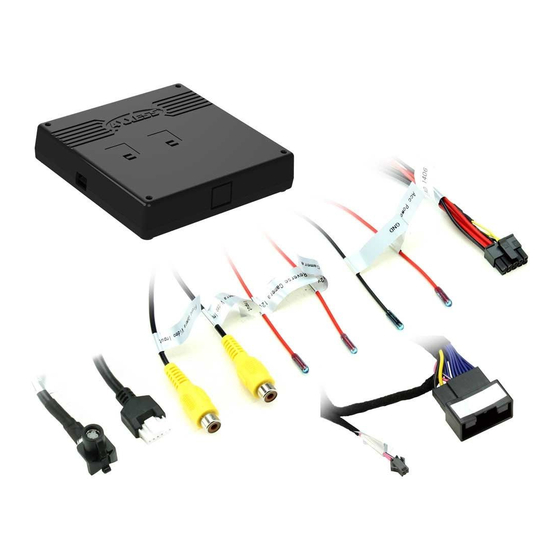

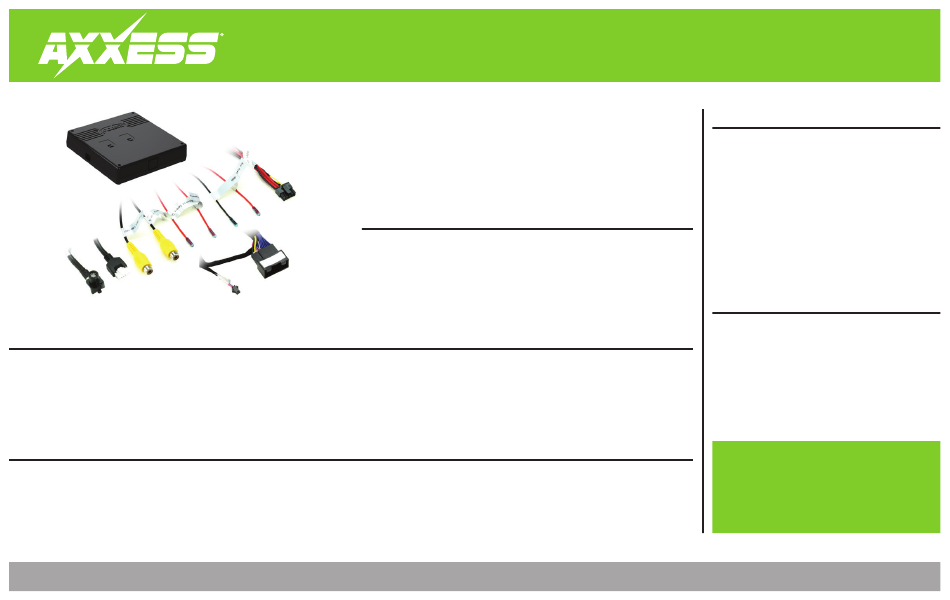

INTERFACE COMPONENTS
• AX-AM-AU96 interface
• AX-AM-AU96 harness (new style)
• AX-AM-AU96 harness (old style)
APPLICATIONS
AUDI
A4 (Typ 8K)
2009-2012
A5 (Typ B8)
2009-2012
A6 (Typ C6/C7)
2008-2012
AxxessInterfaces.com
Audi
HDMI and Camera Interface
* For vehicles with: 3 Basic 6.5-inch screen, 3G/3G+ 7-inch screen
INTERFACE FEATURES
• Provides front and rear camera inputs to the factory display screen
• Provides an HDMI input to the factory display screen
• Micro "B" USB updatable
• 20-pin "T" harness
• 6-pin to 4-pin LVDS (video) cable
• 10-pin harness with RCA jacks
Q5 (Typ B6)
2009-2012
Q7 (Typ 4L)
2009-2012
A8 (Typ D4)
2008-2012
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
(with MMI radio*)
2008-2012
AX-AM-AU96
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections to be made .......................................2
Configuring the AX-AM-AU96 ...............................3
Installing the AX-AM-AU96 ...................................4
User guide ..............................................................5
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 6/30/18 INSTAX-AM-AU96

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX-AM-AU96 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axxess AX-AM-AU96

  • Page 1 INTERFACE COMPONENTS • Connectors (example: butt-connectors, bell caps, etc.) • AX-AM-AU96 interface • 20-pin “T” harness • AX-AM-AU96 harness (new style) • 6-pin to 4-pin LVDS (video) cable • AX-AM-AU96 harness (old style) • 10-pin harness with RCA jacks APPLICATIONS...
  • Page 2: Connections To Be Made

    • If installing a front camera, connect the RCA jack labeled “Front Camera Video Input” (Connections Diagram) to the camera. • If adding an HDMI input to the factory display screen, connect an HDMI cable (Axxess part number AX-HDCABLE, sold separately), to the port on the AX-AM-AU96 labeled “HDMI IN”.
  • Page 3: Configuring The Ax-Am-Au96

    CONFIGURING THE AX-AM-AU96 Dip switch settings Remove the access door located on the top of the AX-AM-AU96 interface to access the dip switches. Dip 1 Dip 2 Dip 3 Dips 4 & 5 If the vehicle is equipped with a factory...
  • Page 4: Installing The Ax-Am-Au96

    • Connect the factory male factory connector into the female plug from the AX-AM-AU96 harness. • Connect the AX-AM-AU96 harness into the AX-AM-AU96 interface. • Remove the LVDS (video) cable from the radio, then connect it to the AX-AM-AU96 (Figure A) interface (LVDS OUT). (Figure A, connection 2) Note: This factory connector may be gray or yellow.
  • Page 5: User Guide

    • Press and hold the “RETURN/BACK” button for 2 seconds to switch between the factory View Version Number screen and the AX-AM-AU96 screen. • Double tap the “RETURN/BACK” button to disable the video-in-motion warning message. • Press and hold the “RETURN/BACK” button for 8 seconds to enter the firmware information screen.
  • Page 7 REV. 6/30/2018 INSTAX-AM-AU96...
  • Page 8 AX-AM-AU96 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
