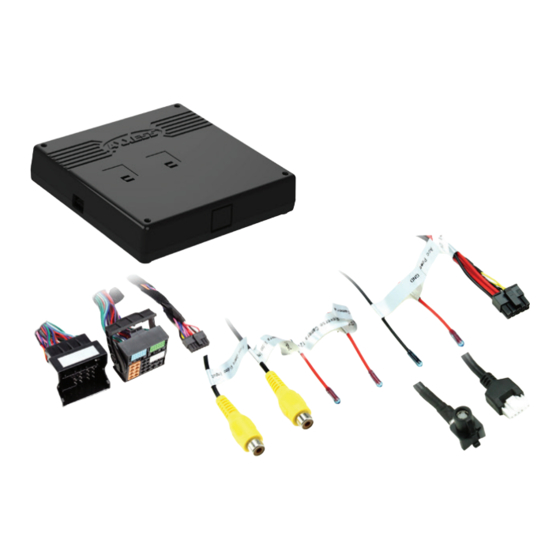

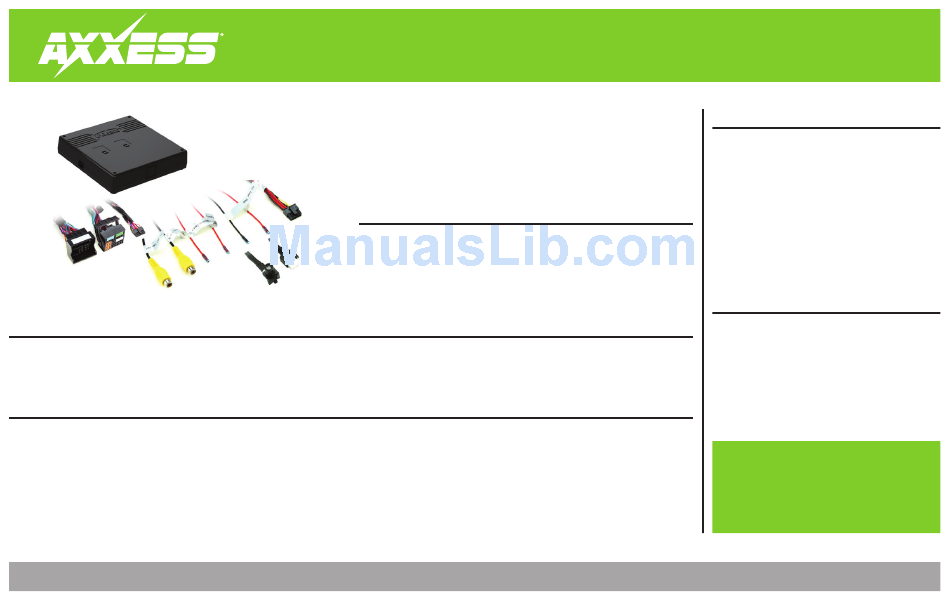

INTERFACE COMPONENTS
• AX-AM-VW91 interface
• AX-AM-VW91 harness
APPLICATIONS
VOLKSWAGEN
Golf/Rabbit (Typ 5G) (a) (c) (e)
Golf SV (Typ 5G) (b) (e) (f)
Passat/CC (Typ 3G) (c) (d)
(a) Composition Media 5.8"
(b) Composition Media 6.5"
AxxessInterfaces.com
Volkswagen
HDMI and Camera Interface
*Visit AxxessInterfaces.com for up-to-date vehicle specific applications.
INTERFACE FEATURES
• Provides front and rear camera inputs to the factory radio
• Provides an HDMI input to the factory radio
• Micro "B" USB updatable
• 6-pin to 4-pin LVDS (video) cable
• 10-pin harness with RCA jacks
2014-2017
Polo (Typ 6C) (b)
2014
Touran (Typ 5T) (b) (e)
2015-up
Tiguan (b) (e)
(c) Composition Media 8"
(d) Discover Media 8"
(with MIB platform)
(e) Discover Navigation 8"
(f) Discover Navigation Pro 8"
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
AX-AM-VW91
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections to be made .......................................2
2014-up*
Configuring the AX-AM-VW91 ...............................3
Installing the AX-AM-VW91 ...................................4
User guide ..............................................................5
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
2014-2017
CAUTION!
2015-2017
controls panels, and especially air bag indicator
2016-up
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
All accessories, switches, climate
REV. 6/30/18 INSTAX-AM-VW91
Advertisement
Table of Contents
Related Manuals for Axxess AX-AM-VW91
Summary of Contents for Axxess AX-AM-VW91
- Page 1 TABLE OF CONTENTS (with MIB platform) Connections to be made ........2 HDMI and Camera Interface 2014-up* Configuring the AX-AM-VW91 .......3 *Visit AxxessInterfaces.com for up-to-date vehicle specific applications. Installing the AX-AM-VW91 ........4 User guide ..............5 INTERFACE FEATURES • Provides front and rear camera inputs to the factory radio •...
-
Page 2: Connections To Be Made
• If installing a front camera, connect the RCA jack labeled “Front Camera Video Input” (Connections Diagram) to the camera. • If adding an HDMI input to the factory radio, connect an HDMI cable (Axxess part number AX-HDCABLE, sold separately), to the port on the AX-AM-VW91 labeled “HDMI IN”. -
Page 3: Configuring The Ax-Am-Vw91
CONFIGURING THE AX-AM-VW91 Dip switch settings Remove the access door located on the top of the AX-AM-VW91 interface to access the dip switches. Dip 1 Dip 2 Dip 3 Dips 4 & 5 If the vehicle is equipped with a factory... -
Page 4: Installing The Ax-Am-Vw91
(LVDS OUT). (Figure A) Note: This factory connector may be gray or yellow. • Connect the 6-pin to 4-pin LVDS (video) cable into the radio, and then into the AX-AM-VW91 interface (LVDS IN). • Connect the 10-pin harness with RCA jacks into the AX-AM-VW91 interface. -
Page 5: User Guide
USER GUIDE Button Configuration • The buttons on the factory radio, will be used to operate the AX-AM-VW91. HDMI access Rear camera access • Select AUX-IN as a source from the factory radio. • The backup camera will automatically activate while the vehicle is in reverse gear. - Page 7 REV. 6/30/2018 INSTAX-AM-VW91...
- Page 8 AX-AM-VW91 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
