INTERFACE COMPONENTS
• AXDIS-VL42 interface
• AXDIS-VL42 chime retention Interface
• AXSWC interface
• AXDIS-VL42 harness
• AXSWC harness
• Female 3.5mm connector with stripped leads
• M.O.S.T. jumper harness (qty. 2)
• Chime speaker
AxxessInterfaces.com
Volvo XC90 Data Interface with SWC
* For models with rear parking sensors
INTERFACE FEATURES
• Provides accessory power
• Retains R.A.P. (retained accessory power)
• Includes amplifier bypass harness
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains parking sensor chimes
• Retains balance and fade
• Micro-B USB updatable
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
AXDIS-VL42
I N S TA L L AT I O N I N S T R U C T I O N S
2004-2014*
TABLE OF CONTENTS
Connections ............................................................2
Installing The Axdis-Vl42 Interface .................. 3-4
Programming The Axswc Interface .....................5
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.) • Zip ties
Product Info
REV. 2/4/20 INSTAXDIS-VL42
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axxess AXDIS-VL42
Summary of Contents for Axxess AXDIS-VL42

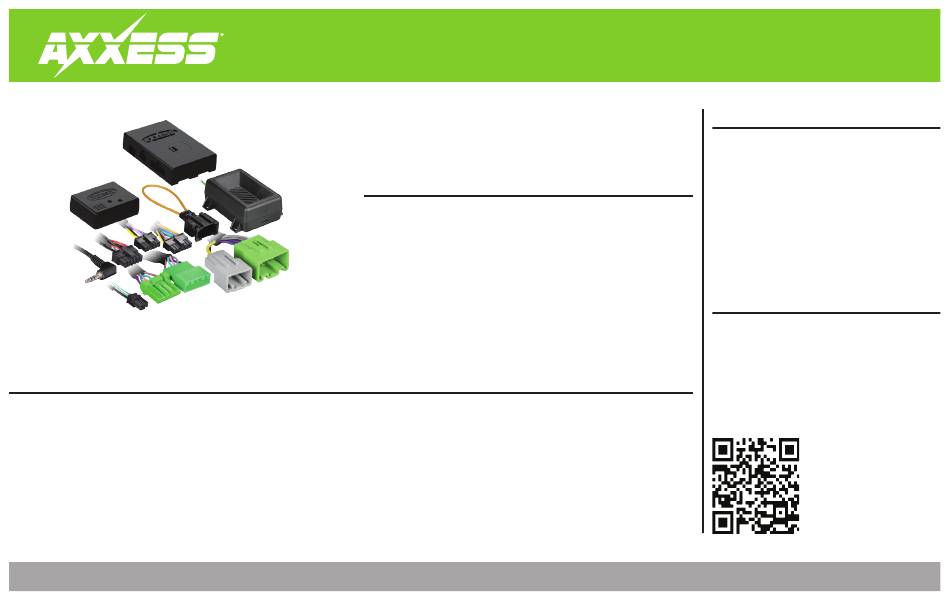

- Page 1 Volvo XC90 Data Interface with SWC 2004-2014* TABLE OF CONTENTS Connections ............2 * For models with rear parking sensors Installing the AXDIS-VL42 interface ....3-4 Programming the AXSWC interface .....5 INTERFACE FEATURES • Provides accessory power • Retains R.A.P. (retained accessory power) • Includes amplifier bypass harness •...
- Page 2 CONNECTIONS From the aftermarket radio to the AXDIS-VL42 harness: From the aftermarket radio to the AXSWC harness: This harness is only to be used if the vehicle is equipped with steering wheel controls. • Connect the Black wire to the ground wire. • Connect the Red wire to the accessory wire. • Connect the Yellow wire to the battery wire.
- Page 3 • Locate the Green 10-pin connector behind the radio display. (Figure B) • Unplug the connector, then plug in the Green male 10-pin connector from the AXDIS-VL42 harness into the radio display. • Connect the factory male 10-pin connector, into the Green female 10-pin connector from the AXDIS-VL42 harness.
- Page 4 (Figure C) (Figure D) from the display screen. • Connect the AXDIS-VL42 harness to the AXDIS-VL42 interface. • Connect the AXDIS-VL42 harness to the AXDIS-VL42 chime retention Interface. • Zip tie the chime speaker under the dash to a location where it will be heard clearly by the driver, then route the harness to the radio location.
- Page 5 PROGRAMMING THE AXSWC INTERFACE • Press and hold the Volume-Up button on the steering wheel. L.E.D. feedback • Turn the ignition on, the L.E.D. in the AXSWC interface will start flashing rapidly, which The (18) Red L.E.D. flashes represent what brand radio the AXSWC believes it is connected means the AXSWC is looking for the vehicle and the radio.
- Page 7 REV. 2/4/2020 INSTAXDIS-VL42...
- Page 8 AXDIS-VL42 I N S TA L L AT I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 386-257-1186 ext. 8300 Or via email at: techsupport@metra-autosound.com...
