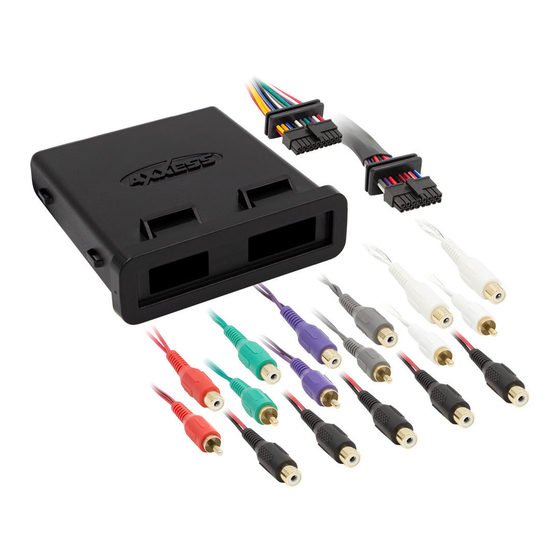

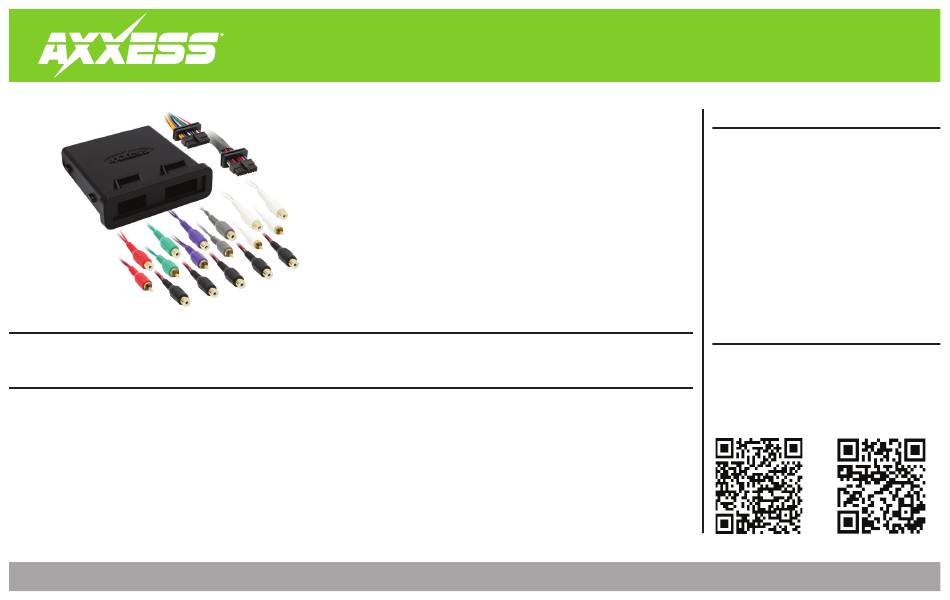

INTERFACE COMPONENTS
• AX-DSP-X circuit board • AX-DSPX-WR harness (with gaskets) • AX-DSPX-WR enclosure (w/ case, cap,and O-ring)
INTERFACE FEATURES
• Water resistant enclosure with zip tie mounts included
• 31 Band graphic EQ
• 6 Inputs, 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Easy behind the radio installation in most applications
• Designed for motorcycle and UTV applications
AxxessInterfaces.com
Axxess 10-Channel Digital Signal Processor
with Water Resistant Case
• Clipping detection and limiting circuits
• Bass knob included
• Settings adjusted via Bluetooth® in a smart device application (tablet
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
AX-DSPX-WR
I N S T A L L A T I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Preface ....................................................................2
Installation Options ...............................................2
Installation .............................................................3
Connections
- Aftermarket radio system ..................................4
- Adding a subwoofer to an existing radio .........5
- Full range system to an existing radio ..............6
AX-DSP-X app .................................................... 7-16
Pinout ....................................................................17
Specifications ........................................................18
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
Apple App Store
Google Play Store
iOS 12.1 or higher
REV. 10/14/19 INSTAX-DSPX-WR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axxess AX-DSPX-WR
Summary of Contents for Axxess AX-DSPX-WR
-
Page 1: Table Of Contents
Pinout ..............17 Specifications ............18 INTERFACE COMPONENTS TOOLS & INSTALLATION ACCESSORIES REQUIRED • AX-DSP-X circuit board • AX-DSPX-WR harness (with gaskets) • AX-DSPX-WR enclosure (w/ case, cap,and O-ring) • Crimping tool and connectors, or solder gun, solder, and heat shrink • Tape • Wire cutter INTERFACE FEATURES •... -
Page 2: Preface
Full range system to an existing radio: assigned however needed for the installation at hand. If 10 channels of a subwoofer signal is This option allows the Installer to wire the AX-DSPX-WR directly to the speaker outputs from an needed, the AX-DSPX-WR can do it. existing radio for a full range audio signal (high-level). -
Page 3: Installation
4. Slide the assembly into the case, then click it shut. Zip-tie the enclosure to a secure location Circuit Board to secure it. Make sure the Axxess logo is facing up to further ensure that no outside elements can enter the enclosure. -
Page 4: Aftermarket Radio System
AFTERMARKET RADIO SYSTEM Aftermarket Radio Bass Knob (included) RCA Jacks (sold separately) Do not use amp turn-on from aftermarket radio! Rear Front Orange - Control Wire Optional Black - Chassis Ground Yellow - Battery Power Red - Accessory Power AX-DSP-X & Enclosure (included) Assignable Outputs Labeled CH 6-10 An SPDT relay, Metra part number... -
Page 5: Adding A Subwoofer To An Existing Radio
ADDING A SUBWOOFER TO AN EXISTING RADIO Bass Knob (included) Factory Radio Orange - Control Wire Wire information on page 17 (RCA Jacks shown cut off) These outputs can be used for AX-DSP-X & Enclosure (included) additional sub amps, or for adding onto the system at a later date RCA Jacks (sold separately) -
Page 6: Full Range System To An Existing Radio
FULL RANGE SYSTEM TO AN EXISTING RADIO RCA Jacks Bass Knob (included) (sold separately) Factory Radio Wire information on page 17 Orange - Control Wire Assignable Inputs Labeled CH 6-10 (RCA Jacks shown cut off) AX-DSP-X & Enclosure (included) An SPDT relay, Metra part number E-123, must be used if more than one amplifier will be installed Blue/White - Amp Turn-On Wire... -
Page 7: Ax-Dsp-X App
AX-DSP-X APP Setup Instructions • General information tab for installing the AX-DSP-X. Continued on the next page REV. 10/14/2019 INSTAX-DSP-X... - Page 8 AX-DSP-X APP (CONT.) Bluetooth Connection • Scan - Press this button to start the Bluetooth pairing process, then select the AX-DSP-X from the mobile device. The AX-DSP-X must be powered during this process. Confirmation that you are connected will show in the top left corner of the app. •...
- Page 9 AX-DSP-X APP (CONT.) Configuration • Identify - Click this button to confirm that the AX-DSP-X is connected properly. If so, a chime will be heard from the front left speaker. • Reset to Defaults - Resets the AX-DSP-X to factory settings. During the reset process the amplifiers will shut off for 5-10 seconds.
- Page 10 AX-DSP-X APP (CONT.) Configuration (Cont.) • About - Displays information about the app, , AX-DSP-X, and mobile device. • Set Password - Assign a 4-digit password to lock the AX-DSP-X. If no password is desired, use “0000”. This will clear out any currently set password.
- Page 11 AX-DSP-X APP (CONT.) Outputs Output Channels • Location - Location of speaker. • Group - Used to join channels together. Example, left front woofer/ midrange and left front tweeter will be considered simply left front to the AX-DSP-X. The letter M denotes the speaker assigned as the master speaker.
- Page 12 AX-DSP-X APP (CONT.) Crossover Adjust • If installing a subwoofer, the front and rear outputs will default to a 100Hz high pass filter to keep the low frequency signals out of the full range speakers. If a subwoofer is not being installed, change the front and rear crossover points down to 20Hz for a full range signal, or to the lowest frequency the speakers will play to.
- Page 13 AX-DSP-X APP (CONT.) Equalizer Adjust • All channels can be adjusted independently within this tab with 31 bands of available equalization. It is best to tune this by using an RTA (Real Time Analyzer). • The Gain slider on the far left is for the channel selected. Continued on the next page REV.
- Page 14 AX-DSP-X APP (CONT.) Delay Adjust • Allows a delay of each channel, up to 10 milliseconds. First measure the distance (in inches) from each speaker to the listening position, then enter those values. If a delay is desired, add to the desired channel(s), up to 99 inches.
- Page 15 AX-DSP-X APP (CONT.) Inputs/Levels • Clipping Level - Use this feature to protect sensitive speakers like tweeters from being driven past their capabilities. If the output signal of the AX-DSP-X clips the audio will be reduced by 20dB. Turning down the stereo will allow the audio to come back at a normal level.
- Page 16 AX-DSP-X APP (CONT.) Locking Down Data Last and the most important. You must lock down your configuration!!!
-
Page 17: Pinout
PINOUT Input Connector Output Connector CH9 CH10 CH9 CH10 Input 6 - Subwoofer Right Input Black - Chassis Ground Input 5 - Subwoofer Left Input Pink -Not applicable in this application. Blue/White - Amp Turn-On Purple RCA Jack - User Assignable Output Purple RCA Jack - Rear Right Input * Blue/Pink -Not applicable in this application. Red/White - Future Use Green RCA Jack - User Assignable Output Green RCA Jack - Rear Left Input * Brown - Future Use... -
Page 18: Specifications
SPECIFICATIONS Specifications General Input Impedance 1M Ohm Operating Voltage 10 - 16VDC Input Channels 6 High/Low level Selectable Standby Current Draw ~7mA Input Options High Level or Low Level Operation Current Draw ~150mA Input Type Differential-Balanced Adjustments/Controls Application via Bluetooth Input Voltage 12VDC, Signal Sense 0 - 28v Peak to Peak... - Page 19 REV. 10/14/2019 INSTAX-DSP-X...
- Page 20 AX-DSPX-WR I N S T A L L A T I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 1-800-253-TECH Or via email at: techsupport@metra-autosound.com...
