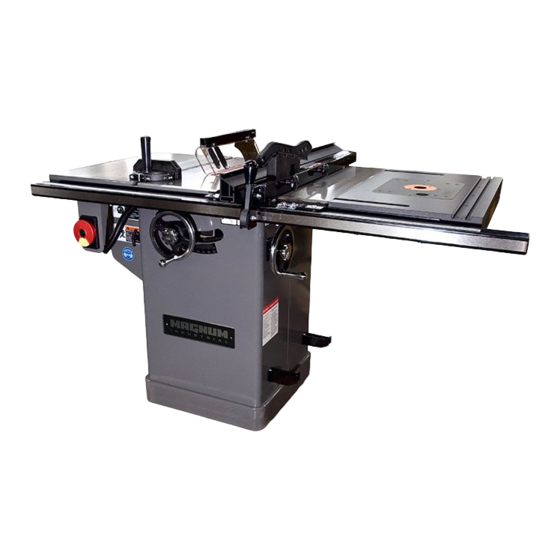

MODEL NO.: MI-51180
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MI-51180 and is the answer not in the manual?

Questions and answers

Related Manuals for Magnum Industrial MI-51180

Summary of Contents for Magnum Industrial MI-51180

  • Page 1 MODEL NO.: MI-51180 Owner's Manual...

  • Page 2: Rules For Safe Operation

    RULES for SAFE OPERATION MAGNUM INDUSTRIAL MI-51180 TABLE SAW To help ensure safe operation, please take a moment to learn how to operate the machine and understand its applications and limitations, as well as potential hazards. KMS Tools and Equipment disclaims any real or implied warranty and holds itself harmless for any injury that may result from the improper use of this equipment.
  • Page 3 RULES for SAFE OPERATION MAGNUM INDUSTRIAL MI-51180 TABLE SAW • Maintain a balanced stance at all times so that you do not fall or lean against the blade or other moving parts. Do not overreach or use excessive force to perform any machine operation.

  • Page 4: Specifications

    SPECIFICATIONS MAGNUM INDUSTRIAL MI-51180 TABLE SAW Model: MI-51180 Motor: 1.75 HP, 115 / 230 V, 1 Phase Blade diameter: 10" Arbor: 5/8" Arbor speed: 4,200 rpm Maximum cutting depth: 3-1/8" (79 mm) Maximum cutting depth at 45 degrees: 2-1/8" (54 mm) Length of table in front of blade at maximum cut: 10"...

  • Page 5: Unpacking The Box

    UNPACKING THE BOX MAGNUM INDUSTRIAL MI-51180 TABLE SAW WARNING Do not connect the saw to a power source until it has been fully assembled. WARNING This table saw is heavy. To move the saw, use a hoist with a minimum capacity of 313 lbs (142 kg) or the assistance of another person.

  • Page 6: Assembling The Saw

    ASSEMBLING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW WARNING Do not connect the saw to a power source until it has been fully assembled. Assembling Motor Access Door • See Figures 1 and 2. • Tools: 17 mm wrench The saw is shipped with a bracket (A) that secures the motor during transportation.
  • Page 7 ASSEMBLING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW WARNING Do not connect the saw to a power source until it has been fully assembled. Extension Wing Installation • See Figures 3 and 4. • Tools: 17 mm wrench, straightedge HARDWARE 6 x 7/16"...
  • Page 8 ASSEMBLING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW CAUTION Use care when working with or near sharp blades. Installing and Replacing Blades • See Figure 5. • Tools: 27 mm wrench Installing a Blade Disconnect machine from power source 2. Turning the front handwheel, raise the blade all the way 3.
  • Page 9 ASSEMBLING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW NOTE Blade guard and riving knife assembly may not be exactly as shown Installing Riving Knife and Blade Guard • See Figures 6 and 7. Set the saw blade to the 0 degrees and raise it to full height.
  • Page 10 ASSEMBLING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW FIGURE 8: RIP FENCE RAIL SCHEMATIC FIGURE 9: RAIL INSTALLATION LOCATIONS Installing the Rip Fence and Rails With the extension wings properly aligned, mount the rail and fence assembly to the saw.

  • Page 11: Using The On/Off Switch

    USING THE ON/OFF SWITCH MAGNUM INDUSTRIAL MI-51180 TABLE SAW PLEASE NOTE The On/Off switch is thermally protected. When an overload or power interruption occurs, the switch turns off. If this happens, wait a few minutes for the saw to cool down then press the Off switch to reset the saw.

  • Page 12: Adjusting The Saw

    ADJUSTING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW WARNING Always turn OFF the power switch and unplug the machine before making any adjustments. Raising and Lowering the Blade The front handwheel (A) raises and lowers the blade. The side handwheel (B) controls the blade tilt. The blade tilts to the left from 90 to 45 degrees.

  • Page 13: Adjusting Riving Knife

    ADJUSTING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW WARNING Always turn OFF the power switch and unplug the machine before making any adjustments. Adjusting Riving Knife Lateral Alignment To help prevent kickback, ensure the blade and riving knife are aligned. Check and adjust the alignment after each blade change.

  • Page 14: Blade Alignment

    ADJUSTING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW WARNING Always turn OFF the power switch and unplug the machine before making any adjustments. Blade Alignment • See Figures 19 and 20. • Tools: 8 mm hex wrench, combination square, marker At the factory, the blade is aligned with the table.

  • Page 15: Maintaining The Saw

    MAINTAINING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW WARNING Always turn OFF the power switch and unplug the machine before making any adjustments. Changing the Belt • See Figure 21 • Tools: 17 mm wrench Inspect the drive belt on a regular basis. When the V-belt begins to show signs of wear, such as fraying or cracking, or if it slips under load, replace the belt.

  • Page 16: Maintenance Schedule

    MAINTAINING THE SAW MAGNUM INDUSTRIAL MI-51180 TABLE SAW WARNING Always turn OFF the power switch and unplug the machine before making performing maintenance. Maintenance Schedule NOTES Assuming the saw is used daily, follow this schedule for cleaning and maintenance. Daily Maintenance •...

  • Page 17: Troubleshooting

    TROUBLESHOOTING MAGNUM INDUSTRIAL MI-51180 TABLE SAW Issue Possible Causes Solutions • Overload is tripped • Allow motor to cool and press Off switch to reset • Saw stops during use • Saw is unplugged • Check all power connections • Saw will not start •...
  • Page 18 Because product specifications can change without notice, some details in this manual may not apply to the product you purchased. DISCLAIMER KMS Tools and Equipment and Magnum Industrial holds itself harmless for any injury or property damage that may result from the use of this product.
  • Page 19 PARTS LIST FOR MI-51180 ( Table and Cabinet Assembly )
  • Page 20 PARTS LIST FOR MI-51180 ( Table and Cabinet Assembly ) lndexNo. PartNo. Description Size Qty. MI-51180-T1 Handle MI-51180-T2 Miter Gauge Body MI-51180-T3 Hex Nut MI-51180-T4 Pointer MI-51180-T5 Stop Link MI-51180-T6 Set Screw M5X5 MI-51180-T7 Special Pin M3X6 MI-51180-T8 Round Head Screw...
  • Page 21 PARTS LIST FOR MI-51180 ( Table and Cabinet Assembly ) lndexNo. PartNo. Description Size Qty. MI-51180-T36 Cable Gland MI-51180-T37 Hook MI-51180-T38 Flat Washer MI-51180-T39 Lock Washer 1/4” MI-51180-T40 Round Head Cap Socket Screw M6X16 MI-51180-T41 Dust Hose Adapter 3” MI-51180-T42 Dust Hose Adapter 4”...
  • Page 22 PARTS LIST FOR MI-51180 ( Motor and Trunnion Assembly ) 128 130 104A (Optional)
  • Page 23 PARTS LIST FOR MI-51180 ( Motor and Trunnion Assembly ) lndexNo. PartNo. Description Size Qty. MI-51180-M101 Arbor Nut MI-51180-M102 Arbor Flange MI-51180-M103 Saw Blade (Optional) MI-51180-M104 Arbor With Flange MI-51180-M105 M5X25 MI-51180-M106 Ball Bearing 6203ZZ MI-51180-M107 Set Screw M8X20 MI-51180-M108...
  • Page 24 PARTS LIST FOR MI-51180 ( Motor and Trunnion Assembly ) lndexNo. PartNo. Description Size Qty. MI-51180-M136 Lock Washer M6X8 MI-51180-M137 Hex Cap Bolt M6X25 MI-51180-M138 Tilt Shaft 3.5X25 MI-51180-M139 Lock Pin MI-51180-M140 Fiber Washer MI-51180-M141 Eccentric Bushing MI-51180-M142 Hex Nut...
  • Page 25 PARTS LIST FOR MI-51180 ( Motor and Trunnion Assembly ) lndexNo. PartNo. Description Size Qty. MI-51180-M171 Lock Pin Base MI-51180-M172 Socket Head Cap Screw M5X20 MI-51180-M173 Spring MI-51180-M174 Lock Pin MI-51180-M175 Set Screw M6X6 MI-51180-M176 Pilot Link Plate MI-51180-M177 Special Screw...
  • Page 26 PARTS LIST FOR MI-51180 ( Blade Guard Assembly )
  • Page 27 PARTS LIST FOR MI-51180 ( Blade Guard Assembly ) lndexNo. PartNo. Description Size Qty. MI-51180-B1 Riving Knife MI-51180-B1.1 Riving Knife 1"t MI-51180-B2 Blade Guard Body M3x12 MI-51180-B3 Bushing ( L ) MI-51180-B4 Bushing ( R ) MI-51180-B5 Flat Head Screw...
  • Page 28 PARTS LIST FOR MI-51180 ( Rail and Extension Table Assembly ) " Bolt package and scales are located inside guide rail # 8 remove plastic end cap to access " lndexNo. PartNo. Description Size Qty. l i a MI-51180-R2 Hex Cap Screw 1/4”...
  • Page 29 PARTS LIST FOR MI-51180 ( Fence Assembly ) 9(2) 9(2) 10(2) 11(2) 14(2) 4(2) 5(2) 5(2) 4(2) 6(2) 7(2)
  • Page 30 PARTS LIST FOR MI-51180 ( Fence Assembly ) lndexNo. PartNo. Description Size Qty. MI-51180-F1 Stop Profile MI-51180-F2 Fence Body Assembly MI-51180-F3 Tube Cap MI-51180-F4 Rubber Washer MI-51180-F5 Lock Knob MI-51180-F6 Socket Set Screw 3/8”X3/8” MI-51180-F7 Fluor way Pad MI-51180-F8 MI-51180-F9...
