Summary of Contents for Magnum Industrial MI-91350
- Page 1 MODEL NO.: MI-91350 OPERATING MANUAL...
-
Page 2: Rules For Safe Operation

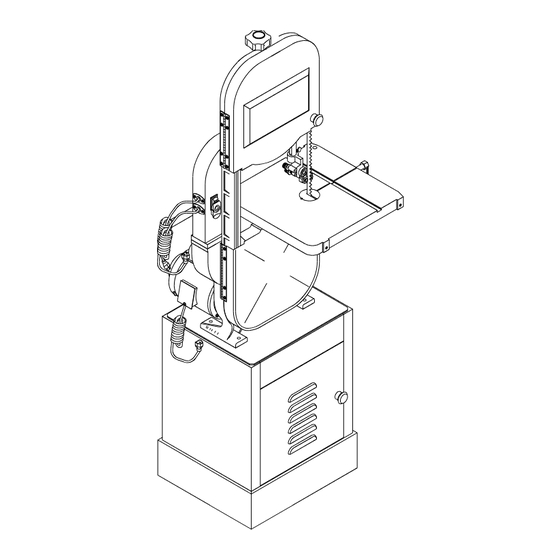

RULES for SAFE OPERATION MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW To help ensure safe operation, please take a moment to learn the how to operate the machine and understand its applications and limitations, as well as potential hazards. KMS Tools and Equipment disclaims any real or implied warranty and holds itself harmless for any injury that may result from the improper use of its equipment. -
Page 3: Tool Overview
TOOL OVERVIEW MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW MAIN COMPONENTS (A) BLADE TENSION ADJUSTMENT KNOB (K) FENCE (B) UPPER BLADE GUIDE LOCK KNOB (L) ON/OFF SWITCH (C) TABLE INSERT (M) UPPER WHEEL COVER DOOR (D) MITRE GAUGE (N) BLADE GUARD ADJUSTMENT KNOB... -
Page 4: Additional Requirements For Set Up
ASSEMBLY INSTRUCTIONS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW • Before you assemble your band saw, review the parts breakdown and keep it ready for reference. • Start by removing the parts from the packaging. • Carefully check the packaging for small pieces before you continue. -
Page 5: Lifting And Handling The Machine
ASSEMBLY INSTRUCTIONS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW WARNING! This saw is heavy. You will need the help of at least one other person or a hoist for the following steps! To limit the risk of serious injury or damage to the machine, any equipment used to lift this... -
Page 6: Electrical Requirements
INSTALL THE BAND SAW ONTO THE BASE CABINET The MI-91350 band saw includes a base cabinet, which provides storage for your mitre gauge and replacement blades. To install the band saw onto the cabinet, follow these steps. -
Page 7: Installing The Tension Lever Handle
ASSEMBLY INSTRUCTIONS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW WARNING! This tool is for indoor use only. Do not expose to rain or use in wet or damp locations. INSTALLING THE TENSION LEVER HANDLE Thread the TENSION LEVER (A) onto the TENSION LEVER SEAT (B). -
Page 8: Attaching The Table
ASSEMBLY INSTRUCTIONS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW ATTACHING THE TABLE Remove the TABLE INSERT (A) and the TABLE ALIGNMENT PIN (B) from the table opening. See Figure 11. Flip the table so the work surface faces up. Check to see that the TRUNNION BOLTS (C) point down. -
Page 9: Rip Fence And Rail
ASSEMBLY INSTRUCTIONS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW ATTACHING DUST PORT The 91-350 has a 4" DUST PORT (A) that connects the saw to a dust collection system. To install the DUST PORT (A), see Figures 17 and 18, and follow these steps: Align the three holes in the DUST PORT (A) with the three HOLES (B) located at the rear of the machine. -
Page 10: Cutting Specifications
BASIC ADJUSTMENTS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW CUTTING SPECIFICATIONS This band saw is supplied with a 3/8" wide general purpose blade, yet it can accommodate blades from 1/8" to 3/4" wide. Ideal blade length for this model is 93- 1/2". -
Page 11: Tilting The Table
BASIC ADJUSTMENTS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW WARNING! To avoid injury, ensure the power switch is OFF and the power cord is unplugged before adjusting the band saw. ADJUSTING 90º TABLE STOP AND RE-ALIGNING THE ANGLE POINTER To ensure accurate cuts, align the table so the angle pointer reads 0 when the table is set to 90°,... -
Page 12: Removing And Installing The Blade
BASIC ADJUSTMENTS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW REMOVING AND INSTALLING THE BLADE This band saw is designed to handle several blade widths ranging from 1/8" to 3/8" for tight radius curves, and from 1/2" to 3/4" for larger radius curves and cutting thicker stock. -
Page 13: Blade Installation
BASIC ADJUSTMENTS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW BLADE REMOVAL (CONTINUED) Remove the TABLE ALIGNMENT PIN (I) from the table slot and the TABLE INSERT (J) from the centre of the table. See Figures 31 and 32. Remove the BLADE GUARD (L). Loosen the two PHILLIPS HEAD SCREWS (K) just enough so you can slide off the guard. -
Page 14: Adjusting Blade Tension
ADJUSTING BLADE TENSION FIGURE 37: ADJUSTING BLADE TENSION The Magnum Industrial MI-91350 band saw features a BLADE TENSION SCALE (A), which you can use to reference ideal tension settings for various blade widths. It also has a quick- release TENSION LEVER (B). -
Page 15: Adjusting Blade Tracking
BASIC ADJUSTMENTS MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW ADJUSTING BLADE TRACKING While it's nearly impossible to set a band saw blade to run perfectly true, you can adjust the tracking so the blade runs as close to centre as possible. If the blade tracks too close to the front, it could slip off while cutting. -
Page 16: Changing Speed Settings
WARNING! To avoid injury, ensure the power switch is OFF and the power cord is unplugged before adjusting the band saw. CHANGING SPEED SETTINGS The MI-91350 has two speed settings: 1,800 LFM (low) and 3,000 LFM (high). • Low speed is ideal for cutting soft woods over 4" in height or hardwoods over 2"... -
Page 17: Periodic Maintenance And Lubrication
MAINTENANCE MAGNUM INDUSTRIAL MI-91350 DELUXE 14" WOOD BAND SAW WARNING! Always disconnect the machine from the power source before performing any lubrication or maintenance. PERIODIC MAINTENANCE and LUBRICATION Lubrication Keep the RACK AND PINION (A) and BLADE TENSION ADJUSTMENT SCREW (B) well greased and free of dust and debris. - Page 18 MI-91350 ASSEMBLY...
- Page 19 MI-91350 ASSEMBLY...
-
Page 20: Specification
Part List For MI-91350 PART NO. DESCRIPTION SPECIFICATION MI91350-01 BASE MI91350-02 UPPER ARM MI91350-03 STEEL PIN 1/4"x16mm MI91350-04 HEX. SCREW 3/4"x2-1/2" MI91350-05 FLAT WASHER 3/4" MI91350-06 SPRING WASHER 3/4" MI91350-07 HEX. NUT 3/4" MI91350-08 LOWER SHAFT MI91350-09 BALL BEARING 6204ZZ... - Page 21 Part List For MI-91350 PART NO. DESCRIPTION SPECIFICATION MI91350-50 KNOB 5/16"x1-1/4" MI91350-51 STEEL BALL 1/4" MI91350-52 SPRING MI91350-53 SET SCREW 5/16"x5/16" MI91350-54 UPPER BLADE GUIDE HOLDER MI91350-55 SET SCREW M6x10L MI91350-56 BEARING SHAFT MI91350-57 BALL BEARING 6200ZZ MI91350-58 C-RING S-10...
- Page 22 Part List For MI-91350 PART NO. DESCRIPTION SPECIFICATION MI91350-99 DUST CHUTE 4" MI91350-100 FLAT WASHER 3/16"x12x1 MI91350-101 CROSS SCREW 3/16"x2-1/4" MI91350-102 SPRING CLIP HEAD MI91350-103 BLADE GUARD MI91350-104 FLAT WASHER 5/16"x23 MI91350-105 HEADLESS SCREW 3/16"x3/8" MI91350-106 MOTOR MI91350-107 FLAT WASHER 1/2"x28...
- Page 23 Part List For MI-91350 PART NO. DESCRIPTION SPECIFICATION MI91350-148 GUIDE SHAFT ψ15x62.65L MI91350-149 GUIDE GEAR(PLASTICS) ψ26x20T MI91350-150 PAD ψ15x34.5L MI91350-151 KNOB MI91350-152 SET SCREW M6x12L MI91350-153 BRACKET 33x23.5x15 MI91350-154 SHAFT ψ15x74L MI91350-155 SPRING PIN M3x14L MI91350-156 SEAT ψ35x40L MI91350-157 SET SCREW 5/16"x3/8"...
-
Page 24: Year Limited Warranty
Because product specifications can change without notice, some details in this manual may not apply to the product you purchased. DISCLAIMER KMS Tools and Equipment and Magnum Industrial holds itself harmless for any injury or property damage that may result from the use of this product.
