Magnum Industrial MI-51100A Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

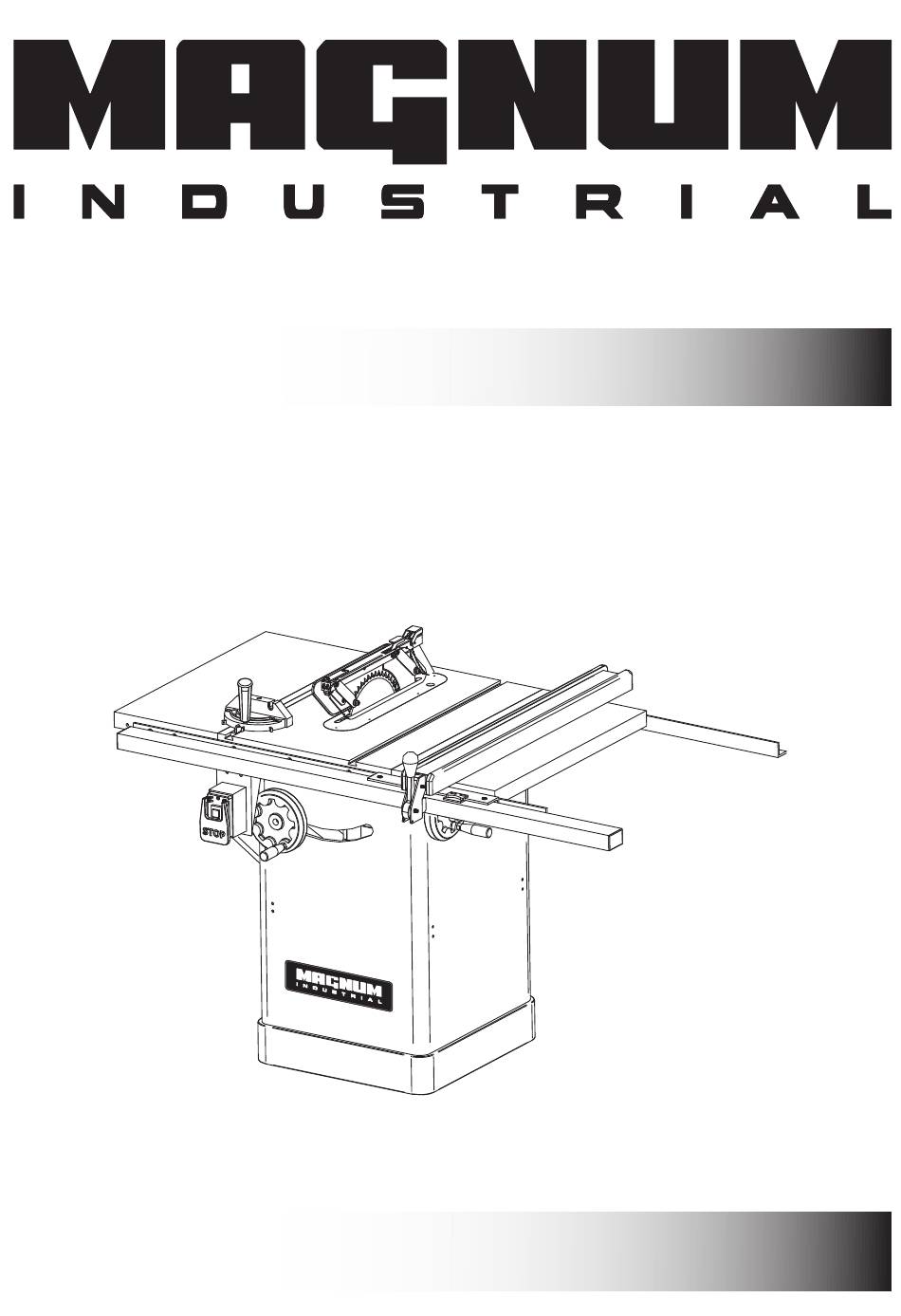

MODEL NO.: MI-51100A
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MI-51100A and is the answer not in the manual?

Questions and answers

Related Manuals for Magnum Industrial MI-51100A

Summary of Contents for Magnum Industrial MI-51100A

  • Page 1 MODEL NO.: MI-51100A OPERATING MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PREFACE .......................... 2   SYMBOLS DEFINITIONS ....................2   GENERAL POWER TOOL SAFETY WARNINGS ............3   SAFETY INSTRUCTIONS FOR TABLE SAWS ............. 5   ASSEMBLY INSTRUCTION ................... 8   SPECIFICATIONS ......................9   ELECTRICAL ........................9  ...

  • Page 3: Preface

    PREFACE Thank you for choosing this tilting arbor table saw. We are pleased to offer you our best machinery and service, and trust that you will find our machinery economical, productive and easy to operate. This manual covers the proper operation, safety and maintenance of the machine. It is important that this manual be read in its entirety before operating the machine.

  • Page 4: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS △ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or ！ seriousinjury. Save all warnings and instructions for future reference. The term ″power tool″...
  • Page 5 will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or BATTERY pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

  • Page 6: Safety Instructions For Table Saws

    h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. 5) SERVICE a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
  • Page 7 length stop when cross cutting with the miter gauge. Guiding the workpiece with the rip fence and the miter gauge at the same time increases the likelihood of saw blade binding and kickback. d) When ripping, always apply the workpiece feeding force between the fence and the saw blade. Use a push stick when the distance between the fence and the saw blade is less than 150 mm, and use a push block when this distance is less than 50 mm.
  • Page 8 standing in front and in line with the saw blade. b) Never reach over or in back of the saw blade to pull or to support the workpiece. Accidental contact with the saw blade may occur or kickback may drag your fingers into the saw blade. c) Never hold and press the workpiece that is being cut off against the rotating saw blade.

  • Page 9: Assembly Instruction

    d) Frequently clean and remove sawdust from under the saw table and/or the dust collection device. Accumulated sawdust is combustible and may self-ignite. e) The table saw must be secured. A table saw that is not properly secured may move or tip over. f) Remove tools, wood scraps, etc.

  • Page 10: Specifications

    SPECIFICATIONS MODEL MI-51100 Diameter of arbor 5/8”(16mm) Diameter of cut 10”(254mm) ” 8 MAX. depth of cut at 45. 2-1/8”(54mm) Distance in front of blade 10.23”(260mm) Table (LXM) 686X512mm Extension wing(LXW) 686X305mm Motor 2HP(115V-19A/230V-9.5A) NetWeight 138kg All specification, dimensions and design characteristics shown in this catalogue are subject to change without notice.
  • Page 11 Do not operate this tool on direct current(DC). A substantial voltage drop will cause a loss of power and the motor will overheat. If the saw does not operation when plugged into an outlet, double check the power supply. SPEED AND WIRING The no-load speed of your table saw is approximately 3600 rpm.

  • Page 12: Blade Information

    3. Grounded, cord-connected tools intended for use on a supply circuit having a nominal rating between 150-250V, inclusive: METAL SCREW This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Sketch D in Figure 1.2. The tool has a COVER OF GROUNDED GROUNDING PIN OUTLET BOX...

  • Page 13: Wiring Diagrams

    WIRING DIAGRAMS When rewiring the supplied electric motor, be sure power cord is unplugged then change the connection as illustrated below. Always secure wire nuts with friction tap. A new plug will be required. NOTE: The reconnection shall be made by qualified electrician or service personnel. 1.

  • Page 14: Glossary Of Terms For Woodworking

    GLOSSARY OF TERMS FOR WOODWORKING Anti-Kickback Pawls A cutting operation made with the miter gage at any angle other than 0˚ Toothed safety devices behind the blade designed to stop a workpiece from being kicked back at the Molding operator during a ripping operation. A non-through cut that gives a varied shape to the workpiece and requires a special blade.

  • Page 15: Machine Legend

    Worktable The surface on which the workpiece rests while performing a cutting operation. MACHINE LEGEND Blade cover Spreader Handle Anti-kickback pawls Extension Wing Blade Rip fence Miter gauge Front rail Rear rail Electromagnetic switch Extension Wing Bevel handwheel Height handwheel Rip fence handle Fig.
  • Page 16 OVERVIEW The upper position of the blade projects up through the table,surrounded by an insert called the thruplate. The height of the blade is set with a hand wheel on the front of the cabinet. To accommodate wide panels,the tabletop has extensions on each side. Detailed instructions are provided in the Operation section of this manual for the basic cuts：Cross cuts, miter cuts, bevel cuts, and compound cuts.
  • Page 17 RIP FENCE HANDLE – The handle on the front of the rip fence releases the rip fence or locks it in place. RIVING KNIFE OR SPREADER – Located directly behind the blade, it keeps cut edges from binding and supports the blade guard. SCALE –...

  • Page 18: Operation Overview

    OPERATION OVERVIEW To complete a typical operation, the operator does the following: 1. Examines workpiece to make sure it is suitable for cutting. 2. Adjusts blade tilt, if necessary, to correct angle for desired cut. 3. Adjusts blade height no more than 1⁄ "...

  • Page 19: Assembleand Adjustments

    ASSEMBLE AND ADJUSTMENTS ASSEMBLE THE RAISING AND TILTING HANDWHEELS AND LOCK KNOBS Place the wheels in position over the raising and tilting screws being sure to engage the slots, a (Fig.3), in back of each wheel with the roll pins, b(Fig.3), as shown at right. Screw on lock knobs c(Fig.4), to hold wheels in place, then attach silver handles, d(Fig.4) tightening them with the supplied 12mm combination wrench.

  • Page 20: Assembleand Adjustments

    ASSEMBLE AND ADJUSTMENTS CHECK HEELING (PARALLELING) MARKED TOOTH OF THE SAWBLADE TO THE MARKED TOOTH MITER GAGE GROOVE AT FRONT MITER GAGE GROOVE See Figures 7 and 8. DO NOT loosens any screws until you have checked with a square and made sure adjustments are necessary.

  • Page 21: Assembleand Adjustments

    ASSEMBLE AND ADJUSTMENTS CHECKING SQUARENESS OF EXTENSION TABLES SAW TABLE See Figure 9 and 10. The extension wing should be checked for squatness to the saw table for smooth operation of the rip fence and rails. Place a square on the saw table, with the short end up and check .The long end of the square should extend across one of the extension wing.

  • Page 22: Assembleand Adjustments

    ASSEMBLE AND ADJUSTMENTS CHANGING THE SAW BLADE. Attention: left hand thread. Remove the arbor nut (J) and flange (I). Place saw blade on arbor shaft making sure teeth point down at the front of the saw. Reinstall flange and arbor nut and securely tighten. Remove the locking pin (K).
  • Page 23 The handle(L) should keep up as Fig.13. When install the riving knife. Then fix the handle(L) by rotation after riving knife installation as Fig.14. Fig. 13 Fig. 14 TO ADJUST THE RIVING KNIFE: 1. Disconnect the saw from the power source. 2.
  • Page 24 6. Use the set screws shown in Figure 17 to adjust the riving knife bracket and re-install the riving knife. Fig.17(set screw for adjusting riving knife) 7. Repeat step 3-7 until the riving knife is centered on the blade and aligned at 90∘to the table. 8.
  • Page 25 4. Put down the guards(N) as Fig.20 and lock the handle(M), then fix the handle(M) as Fig.21. Fig.20 Fig.21 Check the 45 setting. Tilt the blade with the bevel hand wheel as far as it will go to the left. Place the square against the blade (be sure the square is not against one of the saw teeth).

  • Page 26: Adjusting The Miter Gauge

    DUST COLLECTING TUBE SIZE AND INSTALLATION POSITION The dust collecting hole is located at the rear of the frame and is 4 inches in size. It must be locked and not detached during installation. After the machine has been used, remove the dust collecting tube, clean the wood chips in the dust collecting hole, and keep it clean.

  • Page 27: Kickbacks

    KICKBACKS Kickbacks can cause serious injury. A kickback occurs when a part of the workpiece binds between the saw blade and the rip fence, or other fixed object, rises from the table and is thrown toward the operator. The risk of kickback can be minimized by attention to the following instructions. HOW TO REDUCE THE RISK OF KICKBACKS AND PROTECT YOURSELF FROM POSSIBLE INJURY: Be certain that the rip fence is parallel to the saw blade.

  • Page 28: Cutting Aids And Accessories

    CUTTING AIDS AND ACCESSORIES PUSH STICK In order to operate your table saw safely, you must use a push stick whenever the size or shape of the workpiece would otherwise cause your hands to be within 6-inches (152mm) of the saw blade or other cutter. A push stick is included with this saw.
  • Page 29 unless the workpiece is large enough to allow you to hold it more than 6 inches (152 mm) from the table.  Before leaving the saw unattended, lock out power switch, or take other appropriate measures to prevent unauthorized use of the saw. Fig.27 RIP CUTS Remove miter gauge.
  • Page 30 13. Do not push or hold onto the free or cut-off side of the workpiece. 14. Continue pushing the workpiece until it is clear of the blade. Do not overload the motor by forcing the workpiece into the blade. 15. When cut is complete, turn saw off. Wait for blade to come to a complete stop before removing workpiece from table.
  • Page 31 Turn saw on. Let blade build up to full speed before moving workpiece into the blade. 10. Hand closest to blade should be placed on miter gauge lock knob and hand farthest from blade should hold workpiece firmly against the miter gauge face. Do not push or hold onto the free or cut-off side of the workpiece.

  • Page 32: Maintenance

    MAINTENANCE △ WARNING: To reduce the risk of injury, turn unit off and disconnect it from power source before cleaning or servicing, before installing and removing accessories, before adjusting and when making repairs. An accidental start-up can cause injury KEEP MACHINE CLEAN Periodically blow out all air passages with dry compressed air.

  • Page 33: Assembly Diagram

    ASSEMBLY DIAGRAM...

  • Page 34: Assembly Diagram

    ASSEMBLY DIAGRAM...
  • Page 35 PARTS LIST FOR MI-51100A PART NO. DESCRIPTION Q'TY MI-51100A-1 13300001P Table MI-51100A-2 E1210005 Extension wing MI-51100A-3 12700003b Table insert MI-51100A-4 13300019 Cabinet MI-51100A-5 13200004 Motor cover MI-51100A-6 10105056a handle MI-51100A-7 13300032 Hand wheel MI-51100A-8 13200032 Wheel cover MI-51100A-9 13200013 MI-51100A-10...
  • Page 36 PARTS LIST FOR MI-51100A PART NO. DESCRIPTION Q'TY MI-51100A-51 11105080 Spring MI-51100A-52 C9001920 Bearing MI-51100A-53 13200038 Screw bushing MI-51100A-54 12900037 Sleeve MI-51100A-55 12700013 Shaft MI-51100A-56 C1206202A Bearing MI-51100A-57 C5151102 Bearing MI-51100A-58 13200028 Ring MI-51100A-59 S0050505M Set screw M5XP0.8X5 MI-51100A-60 S0021025M Hex.
  • Page 37 PARTS LIST FOR MI-51100A PART NO. DESCRIPTION Q'TY MI-51100A-102 10102032 Spring MI-51100A-103 S0120400M Locking nut M4XP0.7 MI-51100A-104 S0310325 Pin Ø3X25 MI-51100A-105 S0010520M Cap screw M5XP0.8X20 MI-51100A-106 S0230500M Spring washer Ø5 MI-51100A-107 S0020640M Hex. Screw M6XP1.0X40 MI-51100A-108 S0110600M Hex. Nut M6XP1.0...

  • Page 38: Assembly Diagram

    ASSEMBLY DIAGRAM...

  • Page 39: Assembly Diagram

    ASSEMBLY DIAGRAM...
  • Page 40 PARTS LIST FOR MI-51100A PART NO. DESCRIPTION Q'TY MI-51100-A1 13000004 Riving knife MI-51100-A2 12700005 Supporting arm MI-51100-A3 12700006 Guard (left) MI-51100-A4 12700007 Guard (right) MI-51100-A5 12700067 "see thru" plate MI-51100-A6 10606102 Anti-back kick plate MI-51100-A7 10103040 Spring MI-51100-A9 S0030508M Philip Hd. Screw M5xp0.8x8...

  • Page 41: Assembly Diagram

    ASSEMBLY DIAGRAM...
  • Page 42 ASSEMBLY DIAGRAM " Bolt package and scales are located inside FRONT FENCE GUIDE # D2 remove plastic end cap to access "...
  • Page 43 PARTS LIST FOR MI-51100A PART NO. DESCRIPTION Q'TY MI-51100A-C1 11020001 Fence Body Assembly MI-51100A-C2 11020002 Foot Cam MI-51100A-C3 11020003 Handle MI-51100A-C4 11020004a Tube Cap MI-51100A-C5 11020005 Cursor MI-51100A-C6 11020006 MI-51100A-C7 11020007 Fluoroway Pad MI-51100A-C8 11020008 Compression Spring MI-51100A-C9 11020009 Knob...
