MODEL NO.: MI-92100
STOP
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MI-92100 and is the answer not in the manual?

Questions and answers

Related Manuals for Magnum Industrial MI-92100

Summary of Contents for Magnum Industrial MI-92100

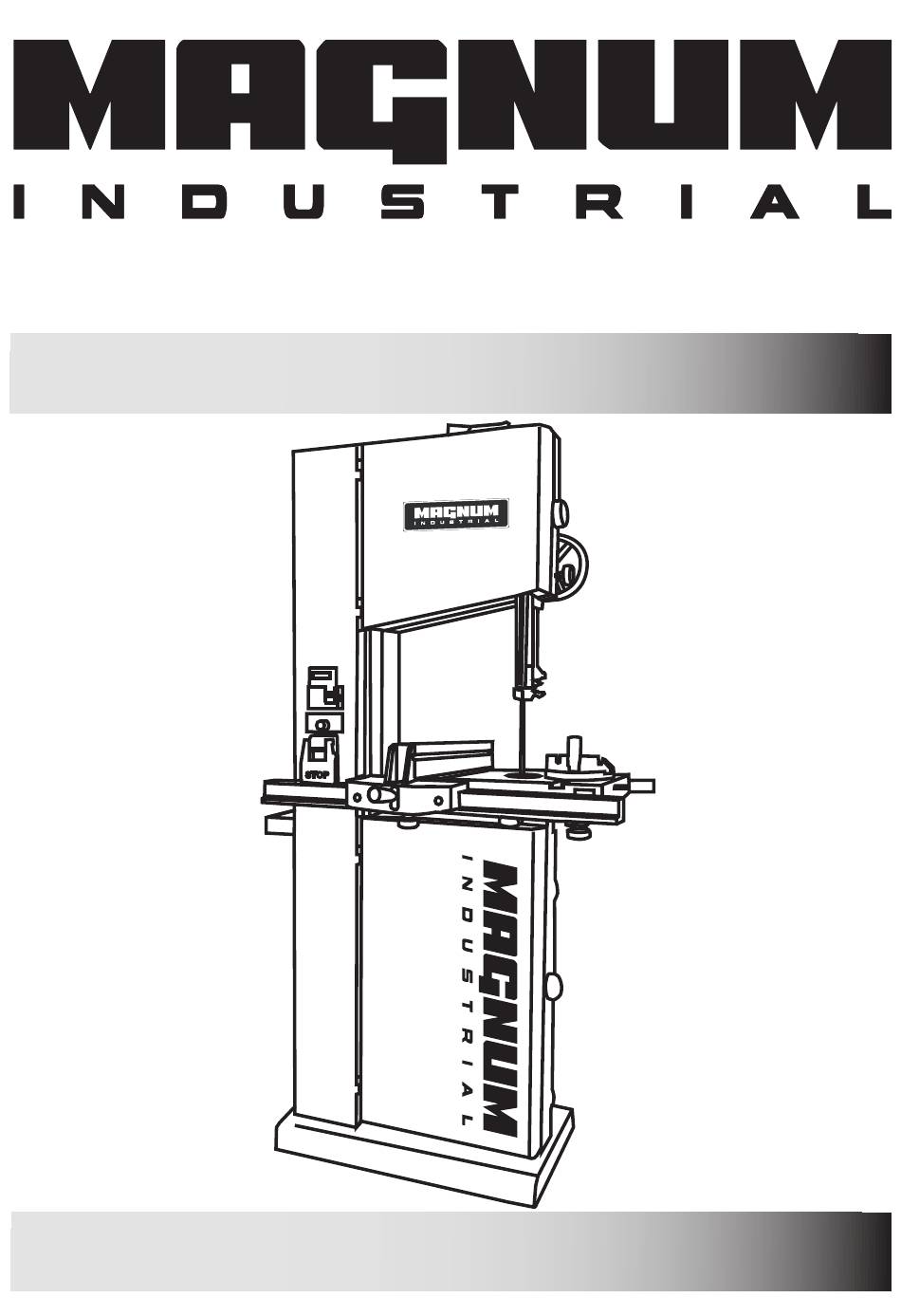

  • Page 1 MODEL NO.: MI-92100 STOP OPERATING MANUAL...

  • Page 2: Safety Rules

    SAFETY RULES WARNING: FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY. FOR YOUR OWN SAFETY, READ INSTRUCTION MANUAL BEFORE OPERATING THE TOOL. Learn the tool’s application and limitations as well as the specific hazards peculiar to it. 2.

  • Page 3: Additional Safety Rules For Band Saws

    16. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories. 17. DISCONNECT TOOLS before servicing; when changing accessories, such as blades, bits, cutters, and the like. 18. REDUCE THE RISK OF UNINTENTIONAL STARTING. Make sure switch is in off position before plugging in.

  • Page 4: Grounding Instructions

    10. Made sure that the saw blade teeth point downward toward the table. 11. Adjust upper guide to just clear work piece. 12. Disconnect machine from the power source when making repairs. 13. Replace all guards after servicing. 14. Turn off band saw if the material is to be backed out of an uncompleted cut. 15.
  • Page 5 The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal. Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded.
  • Page 6 FIGURE 1 Grounding methods METAL SCREW GROUNDING COVER OF GROUNDED OUTLET BOX Note : In Canada, the use of a temporary adaptor is not permitted by the Canadian Electrical Code. ADAPTER GROUNDING GROUNDING MEANS Table 1 Minimum gage for cord...
  • Page 7 Volta Total length of cord in feet 120V 25ft. 50ft. 100ft. 150ft. Ampere Rating 240V 50ft. 100ft. 200ft. 300ft. More More Than Than Not Recommended...
  • Page 8 STOP A.Adjusting Handle B.Cross Knob C.Guide Bar Handle D.Guide Bar E.Blade Guide Support (Upper) F.Blade G.Working Table H.Blade Gukde Support (Lower) I.Switch J.Tool Box...
  • Page 9 Quick release / blade tensioning Lifting the quick release handle to release blade tension. Remove blade and replace with new one. Turn down the handle to tighten blade. Turn the handle clockwise to minor tighten blade tension and counterclockwise to release blade tension. A blade under tension may also pull drive wheel out of alignment.
  • Page 10 Adjusting blade support Whenever changing a blade or adjusting tension and tracking, the upper and lower blade support bearings and guide blocks must be re-adjusted. Always adjust the assemblies away from the blade before installing a new blade or making blade tracking adjustments. After blade tension and tracking are set correctly, re-adjust the upper and lower support bearings and guide block assemblies into position.
  • Page 11 Fence install...
  • Page 12 ADJUSTMENTS ADJUSTING KNOB TABLE 90 ﾟ Shaft for 90 °...
  • Page 13 Parts List For MI-92100...
  • Page 14 Parts List For MI-92100 REF.NO. DESCRIPTION REF.NO. DESCRIPTION MI-92100-1 BODY MI-92100-42 SHAFT PHILLIPS FLAT HEAD SCREW MI-92100-43 BELT MI-92100-2 3/16*1/2" MI-92100-44 SHAFT MI-92100-3 CONTROLLER COVER PLATE MI-92100-45 BEARING MI-92100-4 HEX NUT 3/16" MI-92100-46 TENSION LABLE MI-92100-5 AC MOTOR CONTROLLER MI-92100-47 HEX NUT 5/16"-18P...
  • Page 15 Parts List For MI-92100...
  • Page 16 Parts List For MI-92100 REF.NO. DESCRIPTION REF.NO. DESCRIPTION MI-92100-101 HEX BOLT 1/4-20P*3/8" MI-92100-164 ADJUSTMENT BAR BRACKET MI-92100-102 LOCK WASHER 1/4" MI-92100-168 HEX BOLT 3/8*3/4" MI-92100-103 FLAT WASHER 1/4-16*1.2mm MI-92100-170 SET SCREW 1/4-20P*1/4" MI-92100-104 GUIDE BAR COVER MI-92100-106 RACK MI-92100-107 GUIDE BAR...
  • Page 17 Parts List For MI-92100 REF.NO. DESCRIPTION SUPPORT BRACKET CAST MI-92100-B1 IRON 7/8" ID MI-92100-B2 SUPPORT BEARING SHAFT MI-92100-B3 BEARING 6200ZZ EXTERNAL RETAINING RING MI-92100-B4 MI-92100-B5 SET SCREW 1/4-20P*1/4" MI-92100-B6 HEX BOLT 1/4-20*1/2" MI-92100-B7 THUMBSCREW 1/4*3/4"20P MI-92100-B8 HEX BOLT 1/4-20P*3/8" MI-92100-B9 FLAT WASHER 1/4"-25...
  • Page 18 Parts List For MI-92100 REF.NO. DESCRIPTION REF.NO. DESCRIPTION MI-92100-F15 L TYPE PLATE MI-92100-F01 FENCE BODY FLAT HEAD CAP SCREW MI-92100-F16 KNOB 5/16"*5/8" MI-92100-F02 M10*25mm MI-92100-F17 HEX NUT M6 FLAT HEAD CAP SCREW MI-92100-F19 POINTER MI-92100-F03 M5*10mm SOCKET HEAD CAP SCREW...

  • Page 19: Fault Display

    FAULT DISPLAY...

  • Page 20: Troubleshooting

    Fault, maintenance and trouble shooting A. Descriptions The inverter equips with complete protective functions. If protective function is activated, power transistors will be turned off and display will show what fault is. After proper trouble shooting, to short RST and COM, or press in keypad, inverter will operate.
  • Page 21 Protections Functions Trouble Shooting and display Protection for unbalanced output current. Check the leakage current of Break of fuse inside the inverter motor. GF protection Change inverter EEPROM error Change inverter Disconnection of operating keypad, Check keypad and inverter Err_00, Err_01 KP-201C or KP-202C.
