INSTALLATION

2
INSTALLATION
On delivery, please check that all the following standard components are present in the
packing box:
Easidew Portable
Swagelok
Swagelok
Battery charger
Mains lead
3 pole ¼" jack plug (inside lid)
Certificate of calibration
Before using the Easidew for the first time it is recommended that the battery pack is
charged for a minimum of 12 hours.
The supplied Swagelok
can be connected to the instrument. See below:

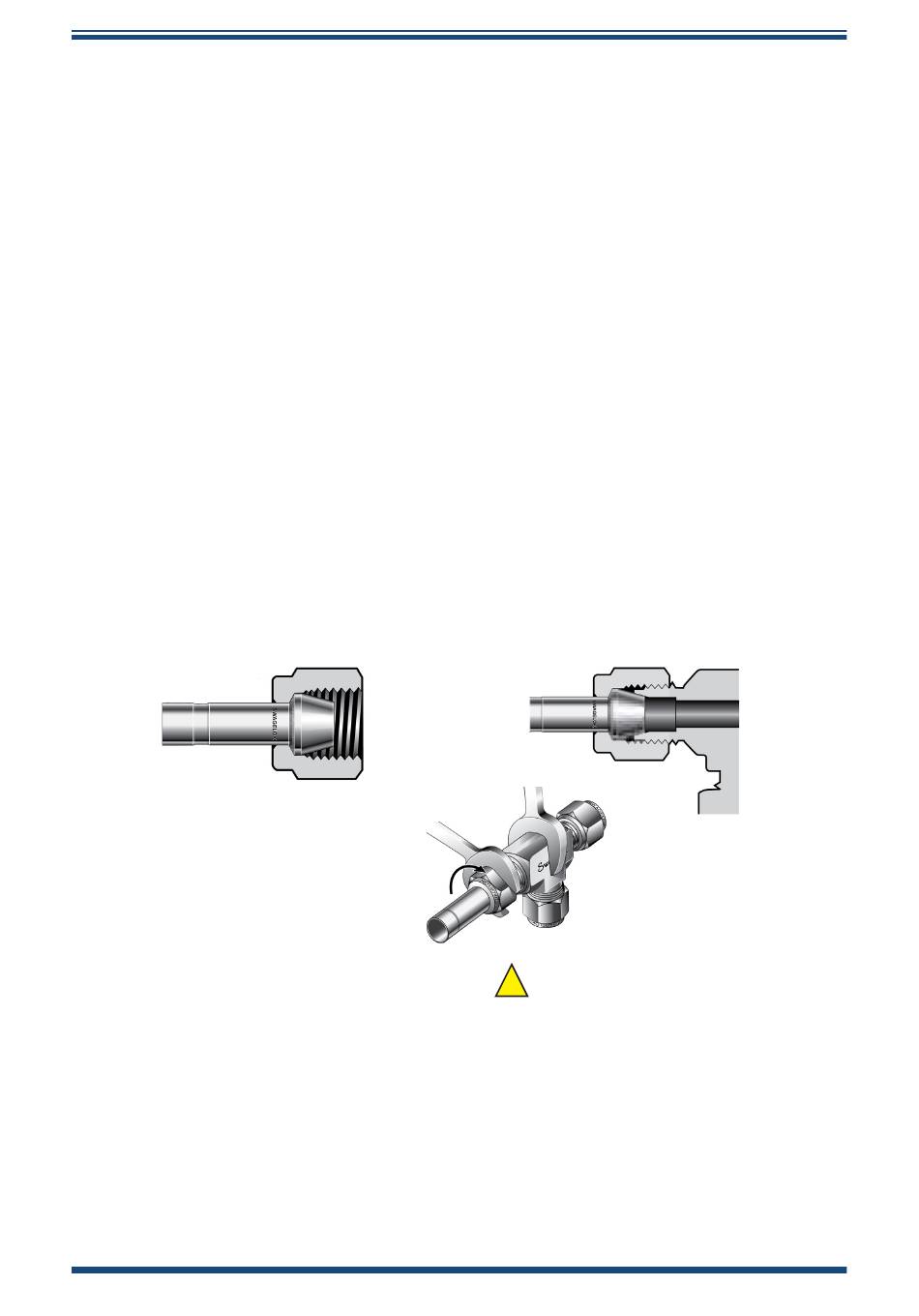

1. Slip the nut over the
machined ferrule end of
the port connector
3. While holding the fitting
body steady, tighten the
nut one-quarter turn
2
6mm metering valve
®
6mm tube port adaptor
®
port adaptor needs to be assembled before the metering valve
®
Easidew Portable HP User's Manual
2. Insert the port connector
into the end connection and
finger-tighten the nut
Do not use the Swagelok gap inspection
!
gauge with machined ferrule ends.
97120 Issue 2.3, October 2019
