Packing List
Left Side Panel
Right Side Panel
Top Panel
Sizing
Size
Installation
1
Attach the side panels following the directions below.
Place the panels into position. Key-hole slots
allow the panels to be installed without removing
the screws. Tighten the screws to secure.
Page 1 of 2

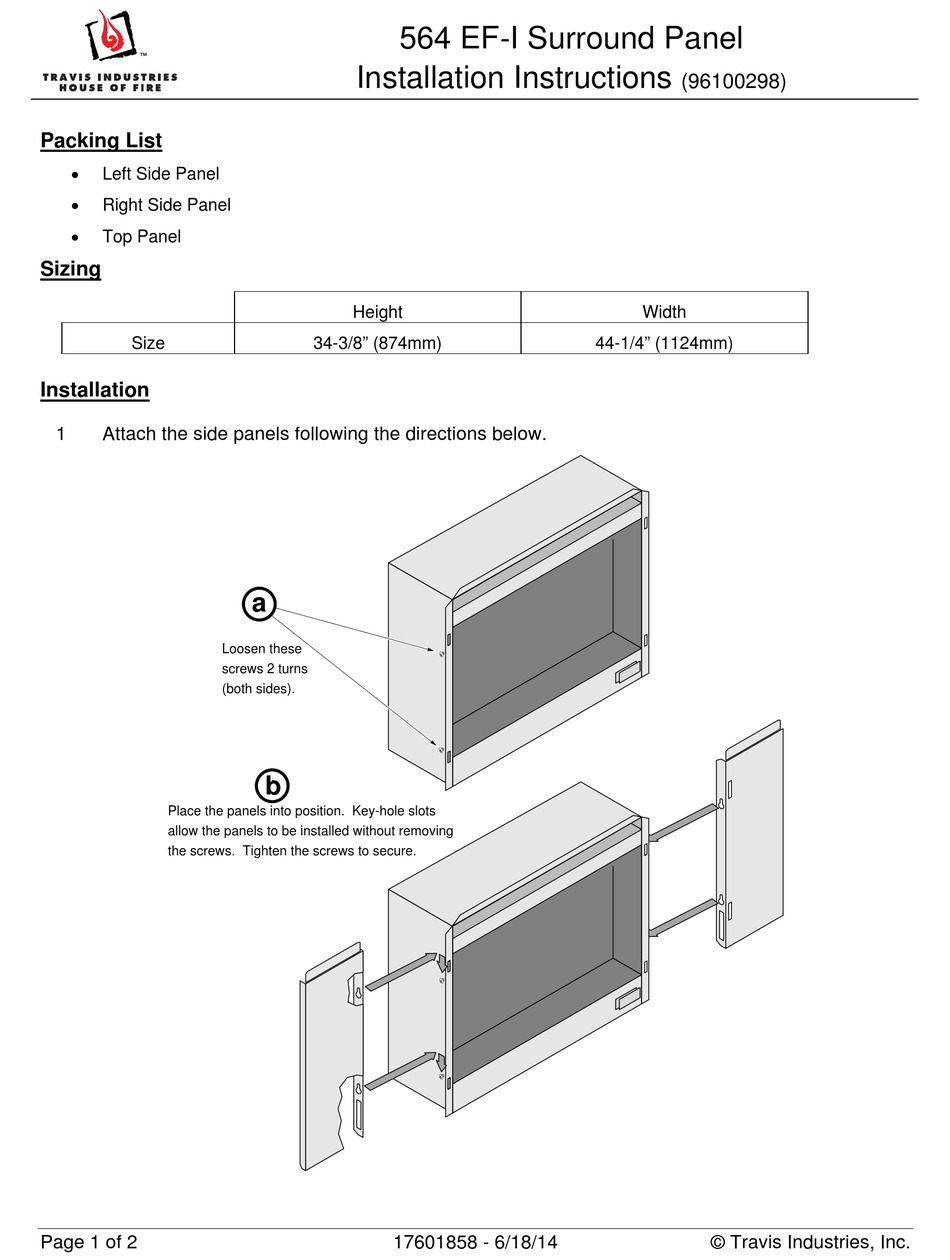

564 EF-I Surround Panel
Installation Instructions
Height
34-3/8" (874mm)
a
Loosen these
screws 2 turns
(both sides).
b
`
17601858 - 6/18/14
(96100298)
Width
44-1/4" (1124mm)
© Travis Industries, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries 564 EF-I
Summary of Contents for Travis Industries 564 EF-I
- Page 1 564 EF-I Surround Panel Installation Instructions (96100298) Packing List Left Side Panel Right Side Panel Top Panel Sizing Height Width Size 34-3/8” (874mm) 44-1/4” (1124mm) Installation Attach the side panels following the directions below. Loosen these screws 2 turns (both sides).
- Page 2 564 EF-I Surround Panel Installation Instructions (96100298) The top panel has joggles on the back of the panel that slide over the flanges on the panels (see illustration below). Attach the top panel, making sure the ends are square with the side panels.
