PB 36 CF, 564 25K & 35K Deluxe Log Set
Part Numbers / Compatibility
Name
Classic Oak
Birch
Classic Oak*
* The first version of the classic oak log set (94500625) is not compatible with the 564 25K. The log set was updated with
additional locating pins and holes to aid in alignment. It was given a new part number (94500626) and is now
compatible with the 564 25K. Both classic oak log sets, when installed, look the same (94500625 and 94500626). If
replacement parts are needed for the old set (94500625) use the part numbers for the new set shown below – you may
need to remove a pin if using a new log.
Installation Warnings
NOTE: Consult the installation manual for order of installation. If using propane (LP), convert the appliance
before installing the log set. If using firebacks, install them prior to installing the log set.
The logs are fragile, especially after being exposed to heat.
Make sure the gas control valve is OFF and the heater is cool prior to conducting service.
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically
approved with this appliance may result in property damage or personal injury.
The burner must be correctly positioned before installing the log set. Make sure the burner is fully seated
and the pilot is properly aligned. See owner's manual for details on burner removal.
Installation – Oak vs. Birch
Both log sets are nearly identical in shape. The only difference is the paint scheme and some textural details.
Page 2 contains a picture of the birch log set installed. The installation pictures show the classic oak log set.
Log Set Overview – Classic Oak 94500625 & 94500626

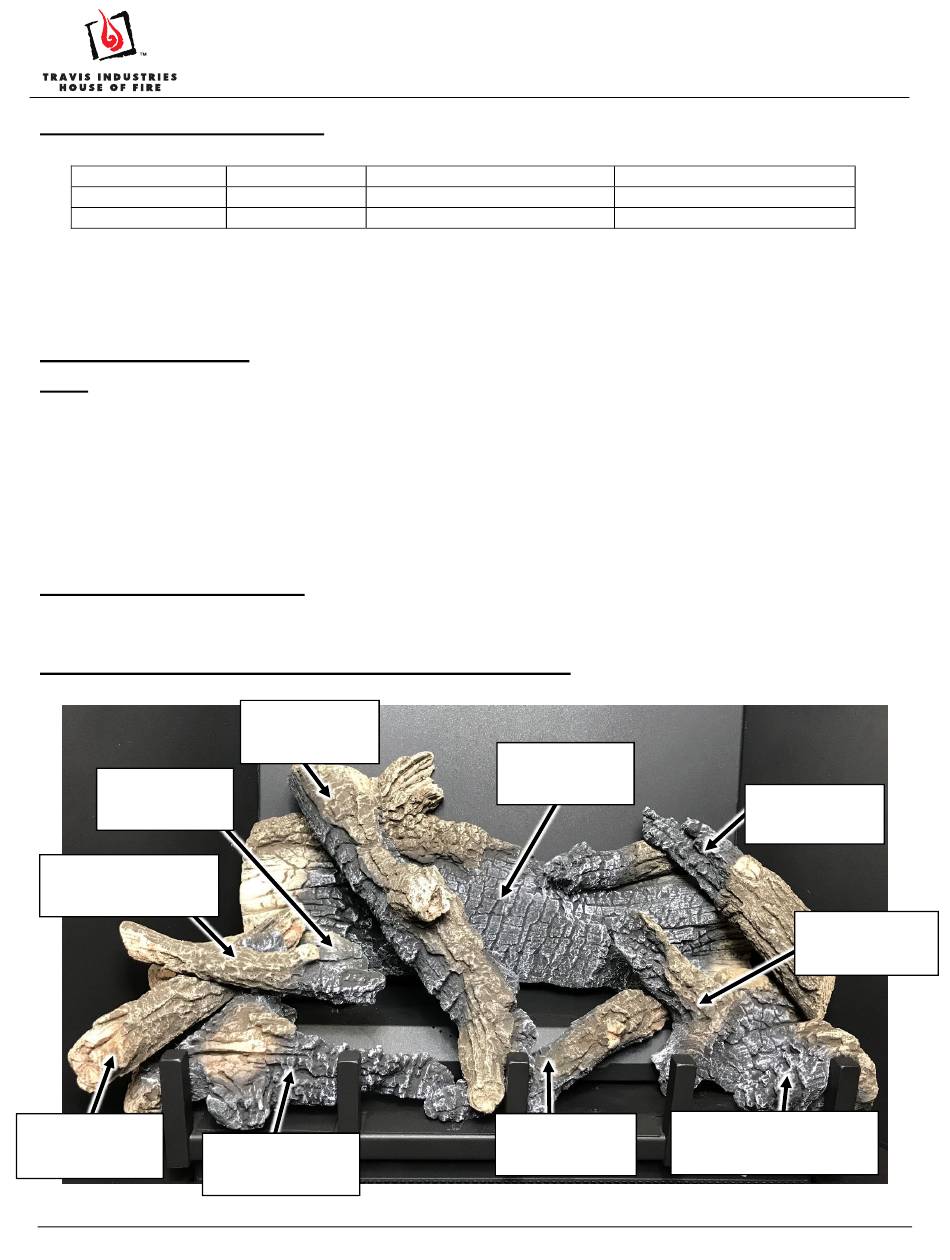

When installed, the ten (10) logs should appear as shown below.
Left Log
250-04918
Center Left Twig
250-04921
Left Twig
Front Left Log
250-04922
Page 1 of 9
See Part Numbers / Compatibility Below
SKU
94500626
94500624
94500625
Center Log
250-04924
250-04916
17602053 — 10/16/20
ProBuilder 36 CF
Yes
Yes
Yes
Rear Log
250-04915
Center Twig
250-04923
564 25K & 35K (CF or Std)
Yes
Yes
No
Right Twig
250-04920
Front Ember Chunk
250-04917
© Travis Industries, Inc.
Right Log
250-04919
Advertisement
Related Manuals for Travis Industries 94500626
Summary of Contents for Travis Industries 94500626
- Page 1 * The first version of the classic oak log set (94500625) is not compatible with the 564 25K. The log set was updated with additional locating pins and holes to aid in alignment. It was given a new part number (94500626) and is now compatible with the 564 25K.
- Page 2 Rear Log 250-04925 Left Log Right Twig 250-04928 250-04930 Center Left Twig Right Log 250-04931 250-04929 Left Twig Center Twig 250-04932 Front Left Log 250-04933 Front Ember Chunk 250-04926 250-04927 Page 2 of 9 17602053 — 2/26/20 © Travis Industries, Inc.
- Page 3 The rear log has two pockets that insert over two tabs on the back burner (see photos below). Place the log in place and push it back. The log straddles the burner and does not cover any burner holes. Page 3 of 9 17602053 — 2/26/20 © Travis Industries, Inc.
- Page 4 The right log has a channel on the bottom that fits over the ridge on the burner. Place the log in place and slide it to the rear. Make sure log placement does not obstruct any burner holes Page 4 of 9 17602053 — 2/26/20 © Travis Industries, Inc.
- Page 5 The front left log has a channel that fits over the grate. When in place, the knob on the front of the log fits over the grate as well. Front Ember Chunk The front ember chunk has a groove on the bottom that fits over the grate. Place it as shown below. Page 5 of 9 17602053 — 2/26/20 © Travis Industries, Inc.
- Page 6 The center log has a hole on the back and a fork on the front. Position the log so this fits over the locating pin on the rear log. Make sure the fork on the front of the log fits over the grate as shown below. Page 6 of 9 17602053 — 2/26/20 © Travis Industries, Inc.
- Page 7 The center left twig is flat on the bottom with one hole. Place the twig on the locating pin as shown below. Make sure the twig is positioned so it does not cover any burner holes. Page 7 of 9 17602053 — 2/26/20 © Travis Industries, Inc.
- Page 8 Embers are provided to further enhance the firebox. Place the embers on the firebox floor and on the burner. Do not place embers over any of the burner holes or air channels. Page 8 of 9 17602053 — 2/26/20 © Travis Industries, Inc.
-
Page 9: Rock Wool Placement
Do not use the entire bag of rock wool. Use only a small amount and save the remainder. Over-use of rock wool will diminish the glow and may cause sooting or other adverse conditions. Page 9 of 9 17602053 — 2/26/20 © Travis Industries, Inc.
