Travis Industries FIREPLACE XTRORDINAIR 4035 Installation Manual

Black glass fireback

Advertisement

Quick Links

Compatibility
4237 Fireplace EG (FIREBACKS ARE REQUIRED BEFORE OPERATING THE 4237 EG FIREPLACE)
4035 Fireplace (FIREBACKS ARE REQUIRED BEFORE OPERATING THE 4035 FIREPLACE)
GLASS FIREBACK WARNINGS
HANDLING THE FIREBACKS: The glass firebacks are fragile – especially the edges. Take care to prevent
contacting/scraping the glass against metal or rough surfaces. You may wish to lay out a blanket during
installation in case you need to set the firebacks down.
We recommend the use of gloves and safety glasses during the installation of the glass firebacks.
CLEANING
These firebacks require periodic cleaning. Do not use ammonia-based cleaners (this may cloud the glass). We
recommend ammonia-free glass cleaner (i.e., vinegar and water) to clean the fireback.
Install the firebacks after the fireplace is in position.
Install the firebacks before installing the glass windbreaks and glass media.

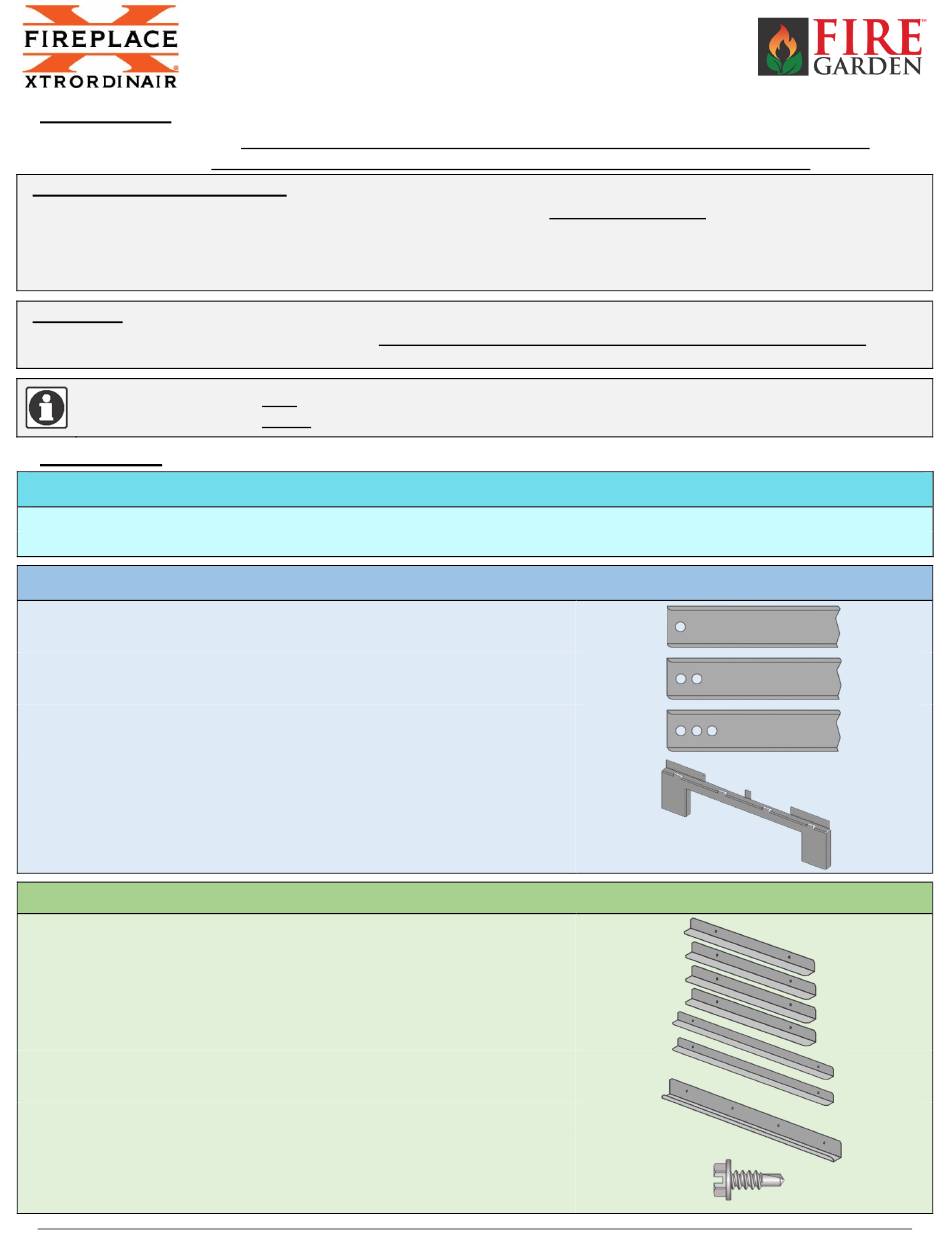

Packing List
Rear Fireback Panel
Left and Right Side Fireback panels (each side fireback has a small notch at the front of the upper edge)
(4) Front and back side panel spacers (marked with 1 hole on
each end).
(4) Top and bottom side panel spacers (marked with 2 holes on
each end).
(2) Top and Bottom rear panel spacers (marked with 3 holes on
each end).
Rear shelf bracket (rear fireback rests on this bracket)
(4) Side spacer brackets (Shorter "L" bracket with (2) screw holes).
(2) Rear spacer brackets (Longer "L" bracket with (2) screw holes).
(1) Rear shelf bracket ("J" shaped bracket with (4) screw holes).
(16) 1/2" self-drilling screws
Page 1 of 8
4035/4237 EG Black Glass Fireback
Installation
4237 EG / 4035 Common Parts
4237 EG Specific Parts
4035 Outdoor Traditional Specific Parts
sku# 96100884
17602287 - 4/5/24
Travis Industries, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FIREPLACE XTRORDINAIR 4035 and is the answer not in the manual?

Questions and answers

Summary of Contents for Travis Industries FIREPLACE XTRORDINAIR 4035

  • Page 1 (4) Side spacer brackets (Shorter “L” bracket with (2) screw holes).  (2) Rear spacer brackets (Longer “L” bracket with (2) screw holes).  (1) Rear shelf bracket (“J” shaped bracket with (4) screw holes).  (16) 1/2” self-drilling screws Page 1 of 8 17602287 - 4/5/24 Travis Industries, Inc.
  • Page 2 4. Use a 1/4” nut driver to remove the three screws from the back wall of the firebox. 5. Insert the support bracket between the rear wall of the firebox and the log shelf assembly Page 2 of 8 17602287 - 4/5/24 Travis Industries, Inc.
  • Page 3 #5. Once the entire fireback is resting on the shelf bracket, tilt the fireback parallel to the back of the firebox and center it side to side. Reinstall the rear fireback clips to secure the fireback in place. Page 3 of 8 17602287 - 4/5/24 Travis Industries, Inc.
  • Page 4 Reinstall the fireback clips to secure the fireback in place. 9. Repeat the same step with the other side fireback. 10. Restore the fireplace to the correct configuration (see manual for details). Page 4 of 8 17602287 - 4/5/24 Travis Industries, Inc.
  • Page 5 3. Use a 1/4 driver and the included 1/2” self-drilling screws to secure the side spacer brackets to both sides of the firebox as shown to the right Page 5 of 8 17602287 - 4/5/24 Travis Industries, Inc.
  • Page 6 NOTE: Make sure to center the rear fireback on the rear wall of the fireplace. If it is not centered there will be a visible gap in the corners when the side firebacks are installed. Page 6 of 8 17602287 - 4/5/24 Travis Industries, Inc.
  • Page 7 Tilt the top of the fireback until it is in contact with the spacer bracket. NOTE: The chamfered corners on the side fireback panels should be facing toward front of the fireplace. Page 7 of 8 17602287 - 4/5/24 Travis Industries, Inc.
  • Page 8 11. Use a 1/4” driver to tighten the screws, securing the retainer bracket in place. 12. Repeat steps 9 through 11 with the other side fireback. Page 8 of 8 17602287 - 4/5/24 Travis Industries, Inc.

This manual is also suitable for:

Fireplace xtrordinair 4237 eg
