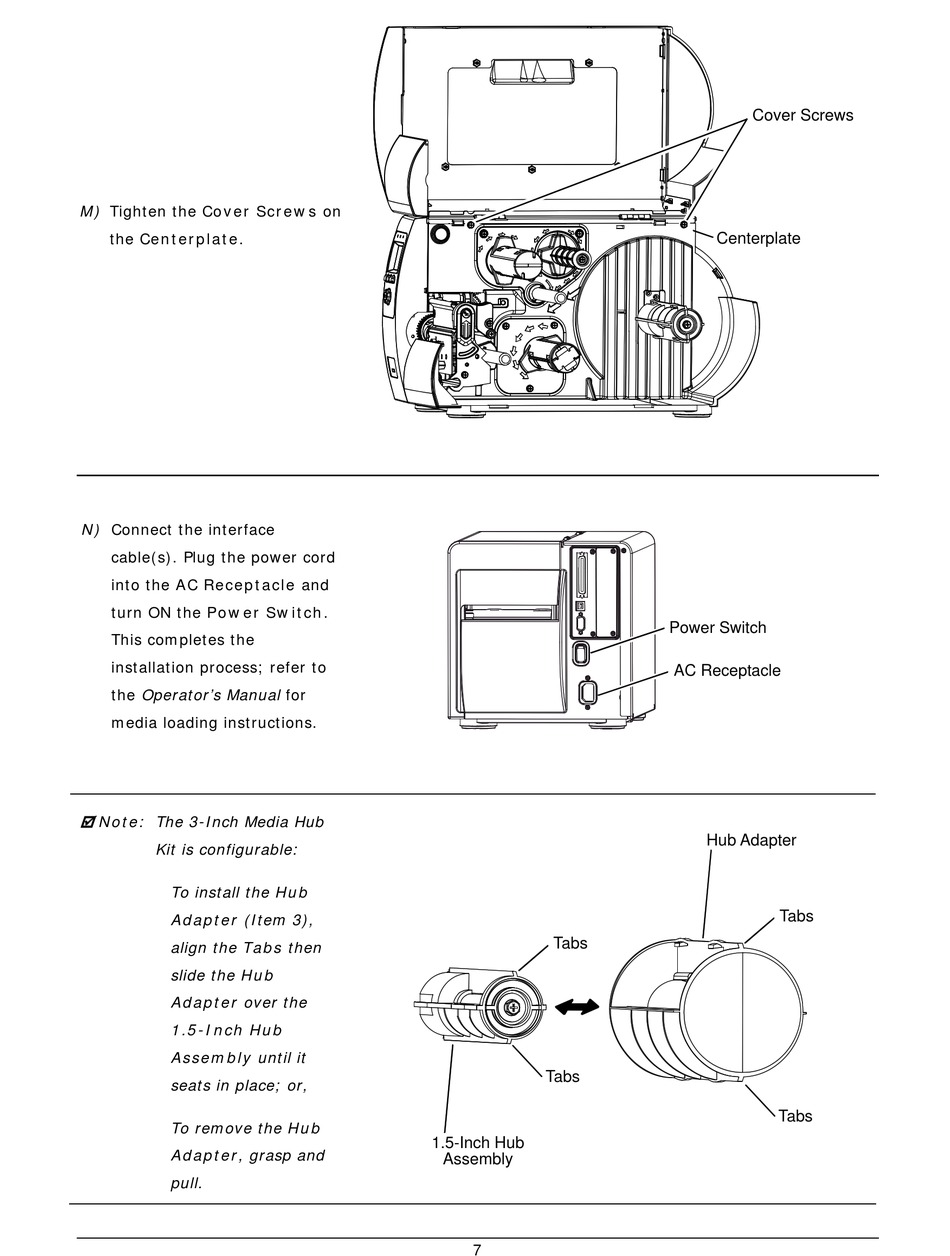

M) Tighten the Cover Screws on
the Centerplate.
N) Connect the interface
cable(s). Plug the power cord
into the AC Receptacle and
turn ON the Power Switch.
This completes the
installation process; refer to
the Operator's Manual for
media loading instructions.
Note: The 3-Inch Media Hub
Kit is configurable:
To install the Hub
Adapter (Item 3),
align the Tabs then
slide the Hub
Adapter over the
1.5-Inch Hub
Assembly until it
seats in place; or,
To remove the Hub
Adapter, grasp and
pull.
Tabs
Tabs
1.5-Inch Hub
Assembly
7
Cover Screws
Centerplate
Power Switch
AC Receptacle
Hub Adapter
Tabs
Tabs
