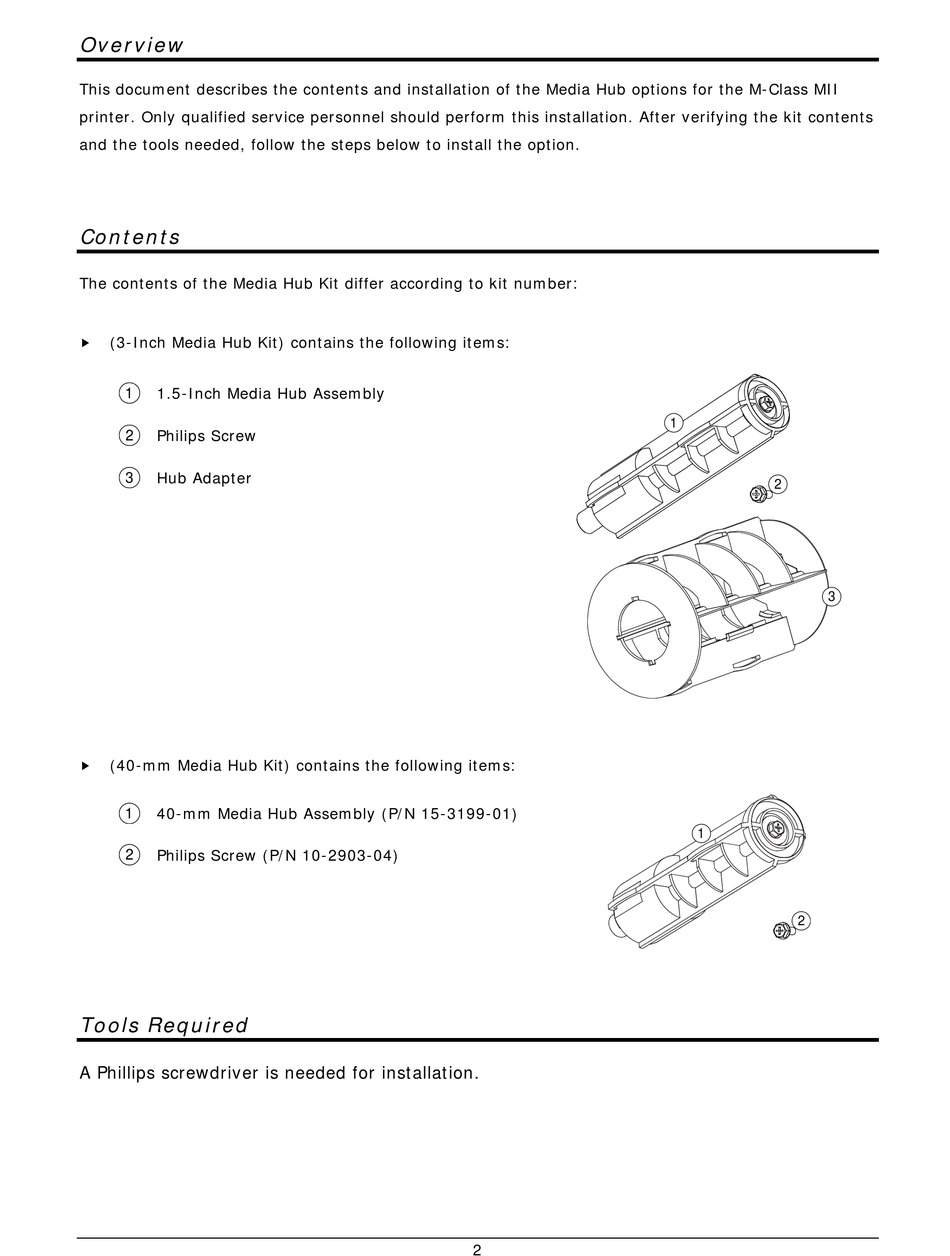

Overview
This document describes the contents and installation of the Media Hub options for the M-Class MII
printer. Only qualified service personnel should perform this installation. After verifying the kit contents
and the tools needed, follow the steps below to install the option.
Contents
The contents of the Media Hub Kit differ according to kit number:
(3-Inch Media Hub Kit) contains the following items:
1.5-Inch Media Hub Assembly
1
Philips Screw
2
Hub Adapter
3
(40-mm Media Hub Kit) contains the following items:
40-mm Media Hub Assembly (P/N 15-3199-01)
1
Philips Screw (P/N 10-2903-04)
2
Tools Required
A Phillips screwdriver is needed for installation.
2
1
2
3
1
2
