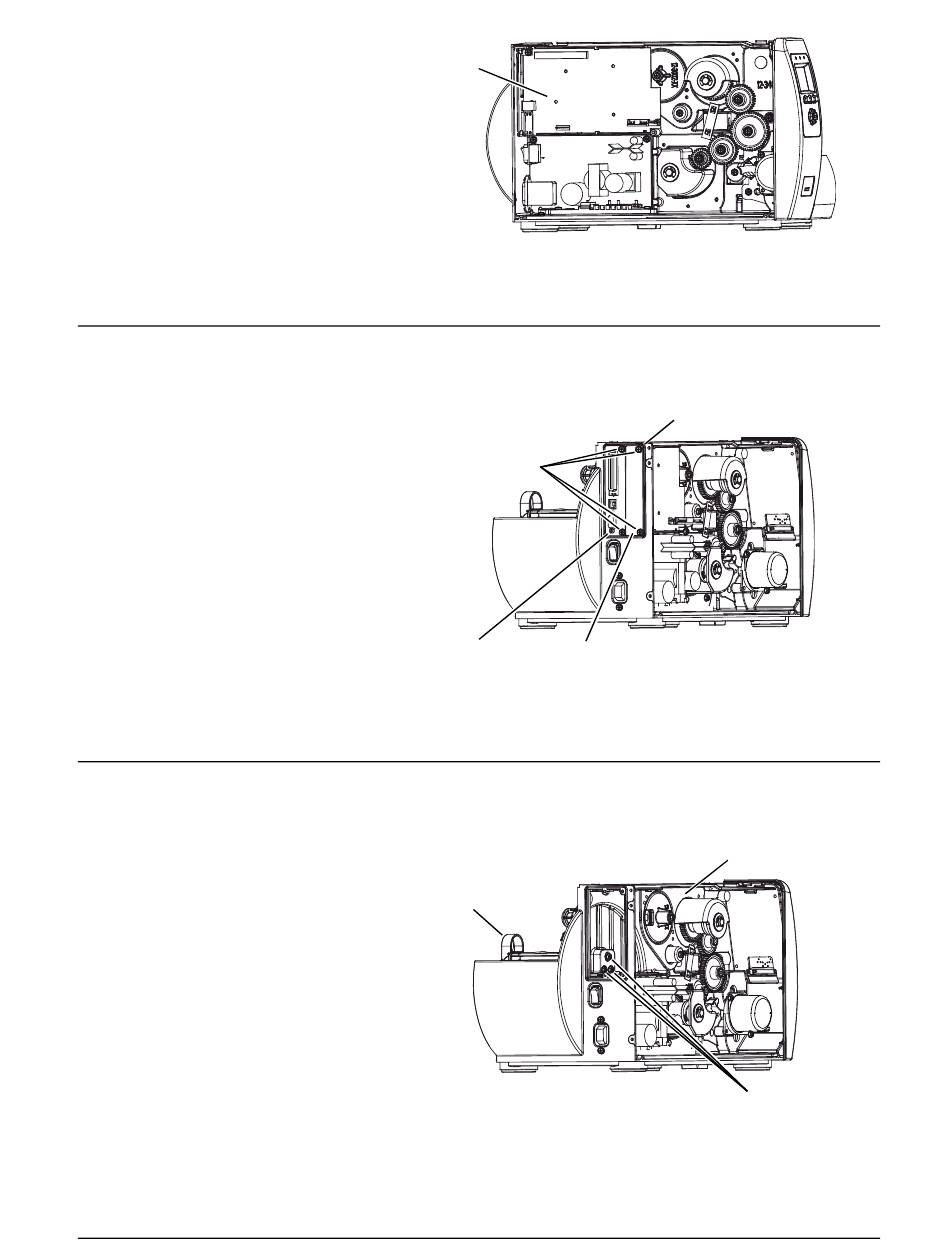

D) Disconnect the cables from
the Main Logic Card.
E) Remove the Screws that
secure the Main Logic Card
and the Fill Plate to the Card
Cage. Remove the Fill Plate
then slide the Main Logic
Card out of the printer.
F) Remove the Hanger Screws
that secure the Media
Hanger to the Centerplate
and then remove the Media
Hanger.
Main Logic
Card
Screws
Main Logic
Fill
Card
Plate
Media
Hanger
4
Card Cage
Centerplate
Hanger
Screws
