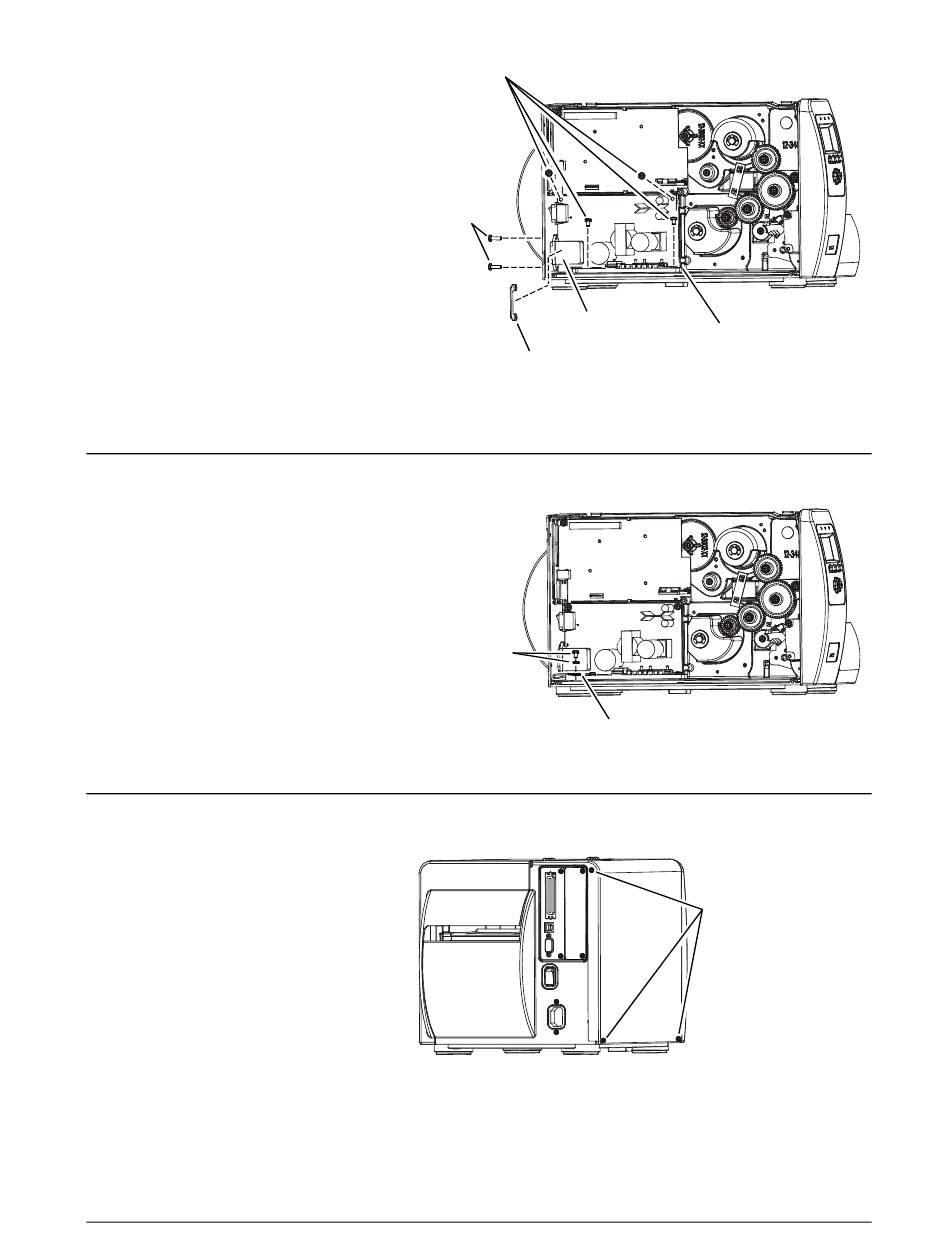

J) Install the Power Supply
then place the Line Filter
Bracket onto the Line Filter.
Secure the Power Supply
using the Power Supply
Screws and the Line Filter
Screws.
K) Insert the Ground Strap
Screw into the Lock Washer
and the Ground Strap Lug.
Then secure the Ground
Strap Lug to the chassis
using the Ground Strap
Screw and Lock Washer.
L) Check all Power Supply cable
connections then place the
Cover onto the printer. Install
and tighten the Cover
Screws on the outside of the
printer.
Power Supply
Screws
Line Filter
Bracket Screws
Line Filter
Bracket
Ground Strap Screw
and Lock Washer
6
Line Filter
Power Supply
Ground Strap Lug
Cover Screws
