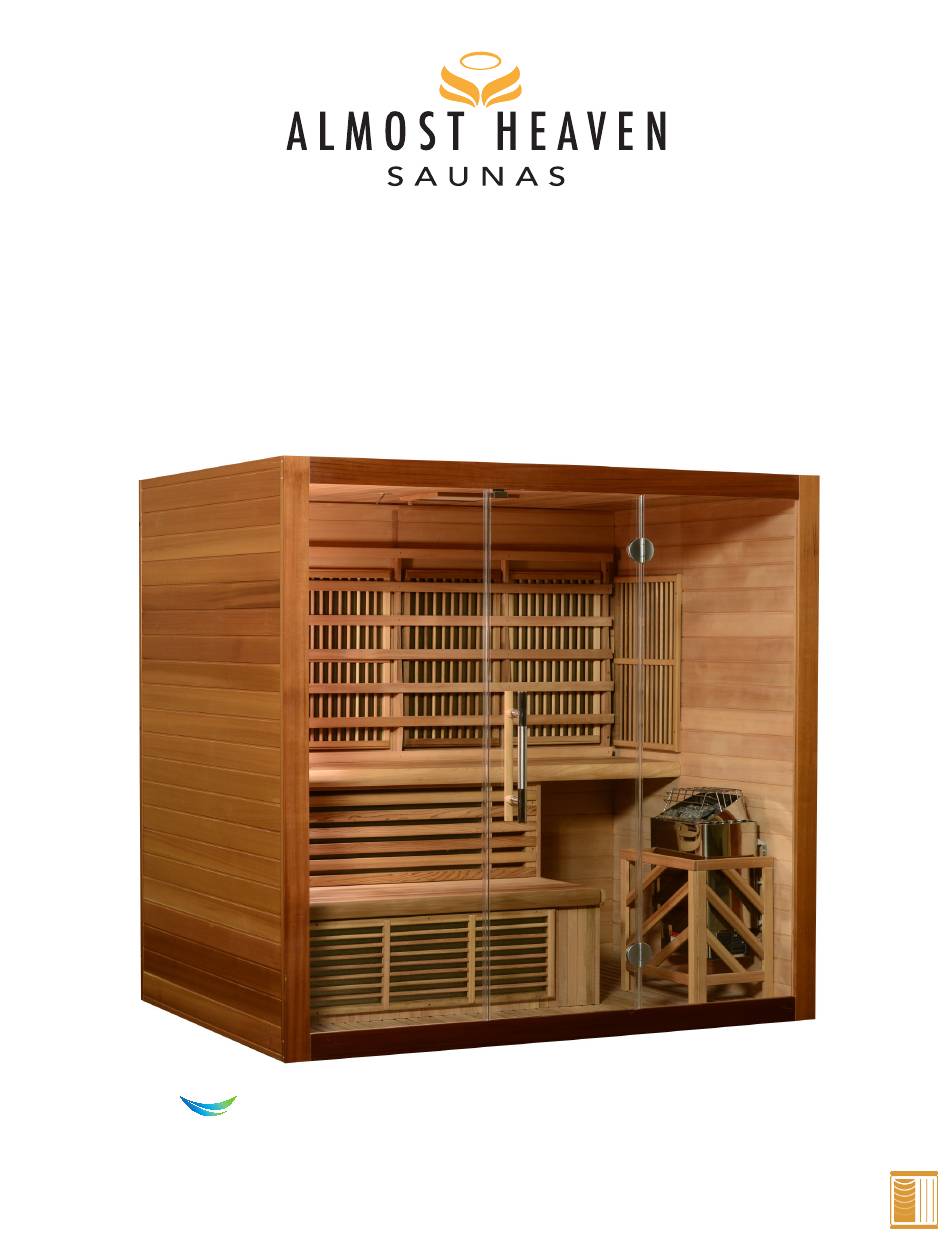

- Page 1 ® Newport Hybrid Sauna Installation & Owner’s Manual Hybrid...
- Page 2 Installation on a carpeted surface is not recommended. NOTE: Your Newport hybrid sauna requires two dedicated 20 amp outlets for proper operation. A separate hard-wired 220V, 30 amp circuit is required for the traditional sauna heater.
- Page 3 Pre-Assembly Suggestions While you can move the completed Newport very gently by sliding it across the floor, we suggest that you assemble the sauna in the location where you plan to use it. Terms such as “left” and “right” refer to the location when facing the completed sauna from the front, or glass side. Place the floor section in the location where you will want the sauna and position the rear wall so that it is on the outside of the floor section as shown (1).
- Page 4 Find the front lower bench support with single heater. Place the left side between the vertical boards on the left wall and position against the vertical board on the right bench support as shown. Screw in place (9). Plug one of the wires from the rear wall section into the wire from the bench support.
- Page 5 Position the top horizontal frame piece, ensuring that the glass is in the grooves and the tongue fits into the groove on the vertical frame pieces. Screw into place as shown (21). With two people, position the assembled front wall section so that the pins align with the slots (22).
- Page 6 Reattach the hinges to the door, tightening with the hex wrench so they are snug. Note: You may have to loosen the screws again when the door is attached to adjust the fit of the door. Once the fit is completed you may tighten the screws in the hinges (33).
- Page 7 Control panel operation Display Temperature display Temperature (-) Temperature(+) Temperature+ Temperature - Time (-) Time(+) Time - Time+ Time display bar Bluetooth Heater Bluetooth Light wave Light Control Light control Power on/off Power on/off CONTROL OPERATION Power on/off Power On/Off In energized state , the system is under standby , when first press “Power on/off”...
- Page 8 from your device. The speakers are located above the ceiling and are not visible from inside the sauna. Lighting To turn on the overhead light, press the Light button, which will immediately turn green on the display. The color of the overhead light will be the same as when the unit was last turned off. The light has 9 settings which display as L1-L9.
