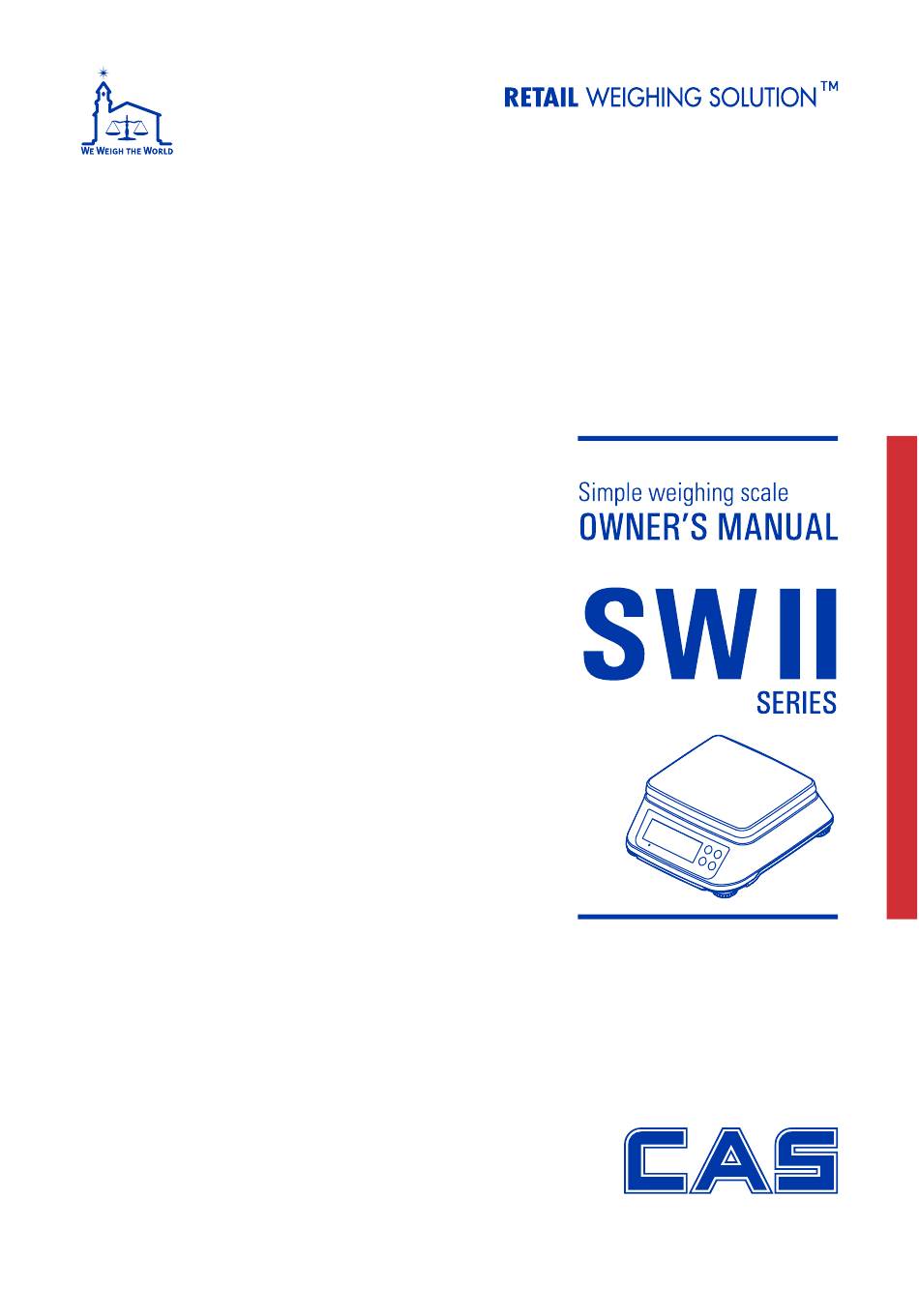

CAS SW II Series Owner's Manual

Simple weighing scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW II Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAS SW II Series

Summary of Contents for CAS SW II Series

  • Page 2: Table Of Contents

    PRECAUTIONS PREFACE NAMES AND FUNCTIONS OPERATIONS 1. Simple Weighing Mode 2. Weighing with Tare 3. Changing Unit of Weight 4. Hold Function 5. Comparator Function 6. Counting Function 7. Setup Mode 8. Interface in Detail BATTERY MAINTENACE ERROR MESSAGE SPECIFICATIONS...

  • Page 5: Preface

    Thank you for purchasing CAS SWΙΙ series. These series have been designed with CAS reliability, under rigid quality control and with outstanding performance. Your special departments can enjoy these high quality reliable CAS products. We believe that your needs will be satisfied and you will have proper reliability.
  • Page 6 DISPLAY KEY FUNCTIONS KEYS FUNCTIONS Used to set the zero point. Used to input or cancel the weight of tare. Used to change the unit of weight, and shown as following sequence on the display. [kg]  [WL on or off]  [PCS]  [kg] Used to select and hold or unit conversion function Used to convert the unit of weight.

  • Page 7: Operations

    ● Turn on the ON/OFF switch. Then, the display will show all the segments and count up "9" to "0". ● When the weight becomes stable the display shows the stable sign ( ) on. ● You may need to make it "0.000" by pressing key unless the display indicate "0.000"...

  • Page 8: Changing Unit Of Weight

    ④ Remove container and commodity, then the display will show the weight of the container with "-" symbol. ⑤ Press the key, then display will show the "0.000". 3. Changing Unit of Weight ● Press the You may select kg, lb, or oz as the unit of weight. 4.

  • Page 9: Comparator Function

    5. Comparator Function - HI / LOW Limit Setting ① Press the key until the display s hows "WL OFF". "WL OFF" means that compar ator function is not activated. ② Press key to activate this function. The display shows "WL ON". ③...

  • Page 10: Counting Function

    scale continues to beep slowly. If the weight loaded is above 2.990kg, HIGH limit, the scale continues to beep rapidly. 6. Counting Function ● Counting without Tare ① Initial display as above. ② Press key twice to go to sample unit selection mode ③...
  • Page 11 ● Counting with Tare ① Press key twice to go to sample unit selection mode. "P = 0" is shown on the display, ② Put the container on the scale and press key to set weight of tare. You can select 10, 20, 50, 100,200, or 500 as a sample unit, by pressing key.

  • Page 12: Setup Mode

    * "e" value may be various on capacity of product model. Please refer to "SPECIFICATION". For example, a product model which capacity is 3.000 kg has 1g as "e" value 7. Setup Mode This function is helpful to setup user setting, which is about Backlight and communication.
  • Page 13 TABLE 1. MENU DISPLAY DESCRIPTION Do not use a back-light Backlight Use back-light when you put on the weight Use back-light always If weight is stable, transmit the data. RS-232C Transmit the data contiunally Communicate with PC...

  • Page 14: Interface In Detail

    8. Interface in Detail This function is helpful to understand RS-232C Communication user setting. The following is the communication information of RS-232C. ● RS-232C Port Connection  8-BIT ASCII code  None parity  1 stop bit  baud rate 9600 ●...
  • Page 15 ● RS-232C Protocol Transmission Data description DATA Value(HEX) Description Start of heading Start of text S(53h),U(55h) S: Stable , U:Unstable SIGN -(2Dh),SP(20h) Sign of the weight data W5~W0 Weight data UN1,UN2 KG,LB Unit of Weight Block check character exclusive or(^) End of text End of transmission COMMAND : DC1(0X11) SCALE->PC DATA FORMAT...

  • Page 16: Battery Maintenace

    Error Message on Description Solution Display The "Z-Err" occurs when a current Please call your CAS zero point has shifted from the last dealer. span calibration. When HIGH and LOW limit are set as the same or above maximum Please reset the maximum capacity it still shows "Err"...

  • Page 17: Specifications

    MODEL : SWΙΙ Dual Dual Dual Dual Single Single Single Single Interval Interval Interval Interval Capacity 1.5/3kg 3/6kg 6/15kg 15kg 15/30kg 30kg e=1g e=2g e=5g e=10g e=0.5g e=1g e=2g e=5g e=0.5/1g e=1/2g e=2/5g e=0.5/1g e=0.2g e=0.5g e=1g e=2g e=0.1g e=0.2g e=0.5g e=1g 1/3000~...
