CAS CI-1500 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CONTENTS
PRECAUTIONS ............................................................. 4
INTRODUCTION ........................................................... 6
FEATURES .................................................................... 6
TECHNICAL SPECIFICATION ....................................... 7
MEASURE OF APPEARANCE ...................................... 8
FRONT PANEL ............................................................. 9
REAR PANEL ............................................................... 10
INSTALLATION & CONNECTION ................................. 11
TEST MODE ................................................................. 13
CALIBRATION MODE ................................................... 16
SET MODE ................................................................... 20
WEIGHING MODE ........................................................ 28
RS-232C INTERFACE/CLOCK ...................................... 32
38

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CI-1500 and is the answer not in the manual?

Questions and answers

مجیدداورپناه
February 20, 2025

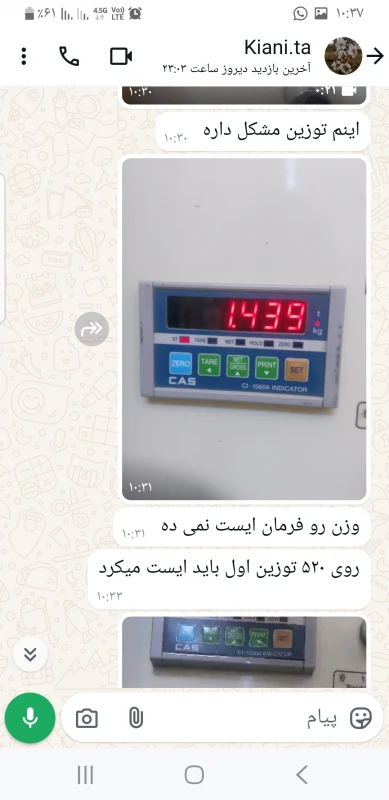

باسلام وقتی به وزن مشخص شده میرسه فرمان رو به خروجی نمیده خروجی روی ۵وcom وصل شده

User image 67b6d523112ac
0
1 comments:
Mr. Anderson
May 14, 2025

If the CAS CI-1500 does not send a command to output when it reaches the specified weight, possible issues could include:

1. The relay output settings (LOW, HIGH, FINAL) may not be correctly configured.
2. The weight might not have reached the threshold adjusted by L-FALL or H-FALL values.
3. The system may not be in the correct mode (e.g., Packer or Checker mode).
4. The relays (OUT RELAY 1–4) might be OFF due to incorrect logic or configuration.

Check relay settings and thresholds to ensure proper output triggering.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for CAS CI-1500

Summary of Contents for CAS CI-1500

  • Page 1: Table Of Contents

    CONTENTS PRECAUTIONS ............. 4 INTRODUCTION ............6 FEATURES ..............6 TECHNICAL SPECIFICATION ........7 MEASURE OF APPEARANCE ........8 FRONT PANEL ............. 9 REAR PANEL ............... 10 INSTALLATION & CONNECTION ......... 11 TEST MODE ..............13 CALIBRATION MODE ........... 16 SET MODE ..............

  • Page 2: Precautions

    PRECATUTIONS Place the indicator on a flat and stable Do not subject the scale to sudden Do not use inflammable materials in surface. temperature changes. cleaning This scale must be installed in a dry and Do not severely press because the light Keep the scale away from strong EMI noises may cause incorrect weight reading liquid free environment.

  • Page 3: Introduction

    INTRODUCTION TECHNICAL SPECIFICATION We greatly appreciate your purchase of the CI-1500 weighing indicator. These goods Analog Part & A/D Conversion perform excellently and exhibit splendid properties through strike tests. CAS indicator Load cell Excitation Voltage DC 5V (CI-series) is delicately designed to coincide with the special requirements of several industrial fields and includes many functions and various external interfaces.

  • Page 4: Measure Of Appearance

    GENERAL SPECIFICATION FRONT PANEL Power AC 220V, 50/60 Hz Size 110(W) x 130(D) x 66(H) Temperature -10 ℃ ~+40 ℃ Weight Approx 750g Power Consumption Approx 10W MEASURE OF APPEARANCE 1. Weight display Lamp n ST Lamp : turn on when the weight is stable. n TARE Lamp : turn on when tare weight is stored.

  • Page 5: Rear Panel

    REAR PANEL INSTALLATION & CONNECTION Load cell connection Pin1: Excitation voltage+ Pin2: Excitation voltage- Pin3: Sense voltage+ Pin4: Sense voltage- Pin5: Shield n Connecting method Each L/C manufacturer’s or model’s wire color could be different. In that case, please note the following n INPUT : External input diagram.

  • Page 6: Test Mode

    n Resolution to load cell output rate TEST MODE 10V impression to load cell Max. Recommended resolution load cell output n How to enter 2 mV 1/1,000(Max) Turn on the power while pressing the ZERO key on the front of the indicator. 4 mV 1/2,000(Max) When test is done, Press SET key.
  • Page 7 Note 5. The test output format of printer is as the follows. TEST 4 n FUNCTION : RS-232 test with computer (SERIAL port) ----------------- DISPLAY DESCRIPTION CI-1500A http://www.cas.co.kr Waiting for transmission and reception TEST OK SET : to next menu ----------------- Transmitted : none, Received : 1...

  • Page 8: Calibration Mode

    TEST 6 (CI-1560A) 3. Calibration Menu (CAL 1- CAL 7) n FUNCTION : External input/output (relay test) CAL 1 : Maximum Capacity Set CAL 2 : Minimum Division Set DISPLAY DESCRIPTION CAL 3 : Setting Weight in Span Calibration SET : Move to next Waiting for key and External input CAL 4 : Zero Calibration menu...
  • Page 9 CAL 3 CAL 5 n FUNCTION : Setting Weight In Span Calibration n FUNCTION : Span Calibration RANGE 1~Maximum capacity of CAL 1 DISPLAY DESCRIPTION DISPLAY DESCRIPTION CAL 5 condition CAL 3 condition CAL 5 SET key : store and CAL 3 Load the weight which was set in move into next menu...

  • Page 10: Set Mode

    SET MODE Function Display Description F02 0 is Hold key SET key usage(0~2) F02 1 is Total data print 1. How to enter Turn on the power while pressing the TARE key on the front of the indicator. F02 2 is Start key in relay mode 2.
  • Page 11 Function Display Description Function Display Description F07 0 weight backup is off F11 0 600bps(bit per second) Weight backup (OFF, ON) F11 1 1200bps F07 1 weght backup is on Baud rate Note 1. In case occurring sudden power failure, it can be memoried the moment F11 2 2400bps (Unit of speed In...
  • Page 12 ※ When you select 1 of F14. ※ You can set Lo, H - FALL, L - FALL value same as above. n HI, Lo, H - FALL, L - FALL Function Display Description Function Display Description C1 99 Year : 1999 Set Year (00~99) Set Hi, Lo, H - FALL, 100 kg...
  • Page 13 n Limit Mode n Limit Type Checker Mode WEIGHT WEIGHT (LOW limit) (HIGH limit) (LOW limit) (HIGH limit) RELAY RELAY 0 kg 50 kg 100 kg 0 kg 50 kg 100 kg ZERO ZERO (OUT RELAY 1) (OUT RELAY 1) (OUT RELAY 2) (OUT RELAY 2) HIGH...

  • Page 14: Weighing Mode

    n Example 2. Tare Function Usage WEIGHING MODE Display or Key On platform Description 1.How to enter step 1 Contaiiner Tare weight : 200kg Turn ON/OFF switch on and you will enter the WEIGHING Mode. Store current weight as the TARE step 2 2.
  • Page 15 n Example 3. To display NET or GROSS weight. Note 1. Choose HOLD type in SET menu (F13) Average HOLD(F13 0): Compute the average weight of oscillating weights. Display or Key On platform Description Peak HOLD(F13 1) : Choose the maximum weight among oscillating Article weight : 10.00kg weights.

  • Page 16: Rs-232C Interface/Clock

    ※ Simple communication program (C) RS-232C INTERFACE/CLOCK #include <bios.h> #include <conio.h> Transmit mode : RS-232C interface #define COM1 Baud rate 600, 1200, 2400, 4800, 9600, 19200 #define DATA_READY 0x100 Output mode stable, Unstable, Data is required #define TRUE #define FALSE n Type : EIA - RS - 232C n Method : Full-duplex, asynchronous transmission Fomat #define SETTINGS ( 0x80 | 0x03 | 0x00 | 0x00)
  • Page 17 CAS TOP printer connection (P-202) RS- 232C Port Connection n RS 232C port connection to PC RXD 3 ㅇ ㅇ 9 Transmit Data Connect SERIAL port on the rear panel of the indicator to serial port of PC as the TXD 2 ㅇ...

  • Page 18: Error Message And Trouble Shooting

    ERR 24 ERROR MESSAGE & TROUBLE SHOOTING n Reason Load Cell output Volltage is too low at span Calibration. (1) In Weighing Mode ERR 25 ERR 02 n Reason n Reason Load Cell output Volltage is too high at span Calibration. Load cell connection failure or error in A/D conversion part.
