Setting HF Bus Mode
„ Connect the read/write head to the interface converter using a suitable connection cable
(e.g. RK4.5T-2/S2500) according to the following color coding:
STW-RS485-USB
VCC
GND
RS485-A
RS485-B
„ Connect a USB cable to the interface converter (USB1.1 type B).
„ Connect the unconnected end of the USB cable to a free USB port on the PC
(USB1.1 type A).
„
Set the switches for termination on the side of interface converter to [ON].
„ Connect the interface converter to a power supply via the STW plug-in power supply
unit.
UHF RFID read/write head
e.g. TN-CK40-H1147/C53

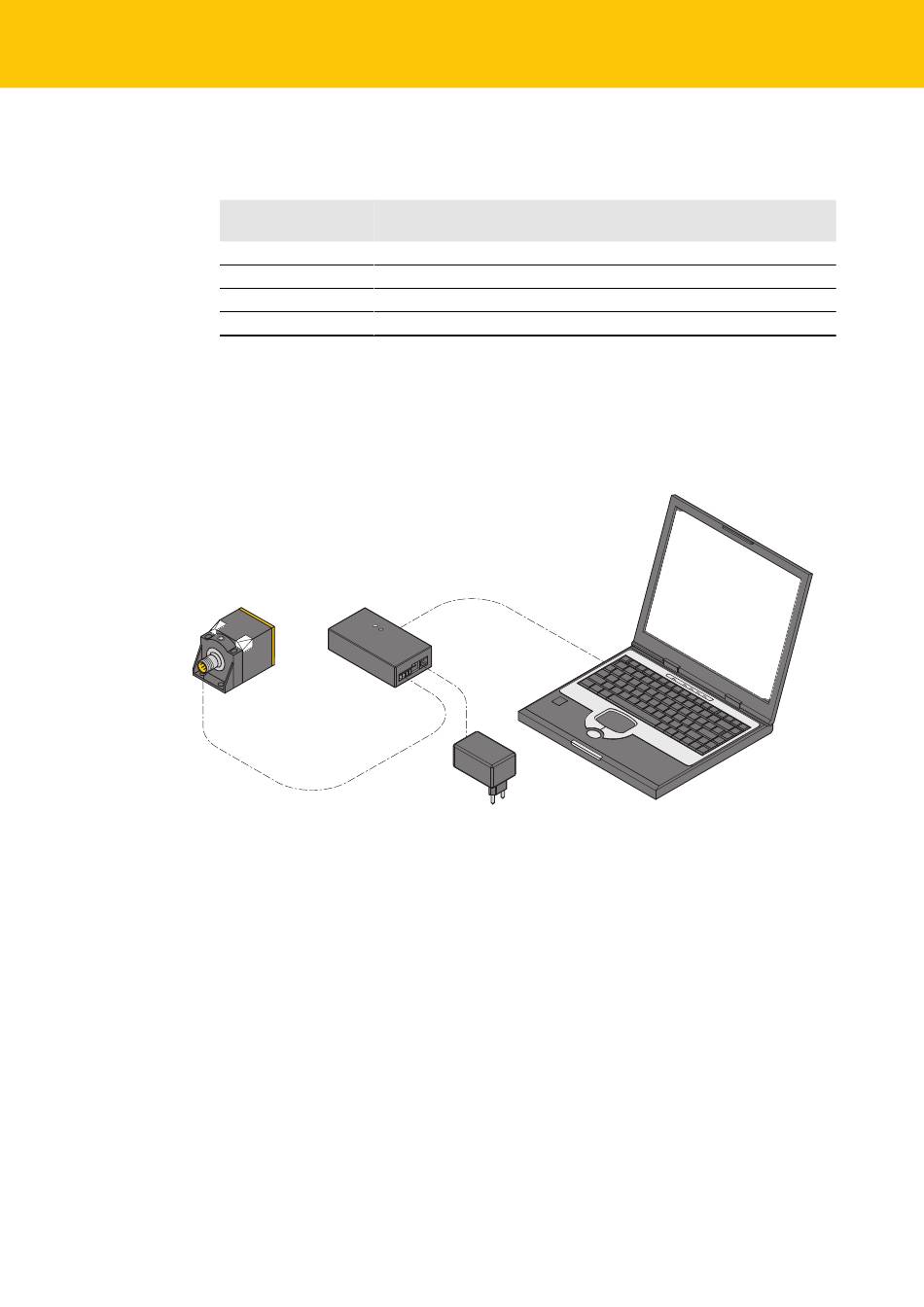

Fig. 3: Connecting the read/write head to a PC via the interface converter
10
.../S2500
connector
Brown (BN)
Blue (BU)
White (WH)
Black (BK)
Interface converter
STW-RS485-USB
RFID cable Power supply
e.g. RK4.5T/S2500 STW-RS485-USB-PS
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
.../S2501 .../S2503
connector connector
Brown (BN) Red (RD)
Blue (BU) Black (BK)
Black (BK) White (WH)
White (WH) Blue (BU)
PC / Notebook
with USB-interface
