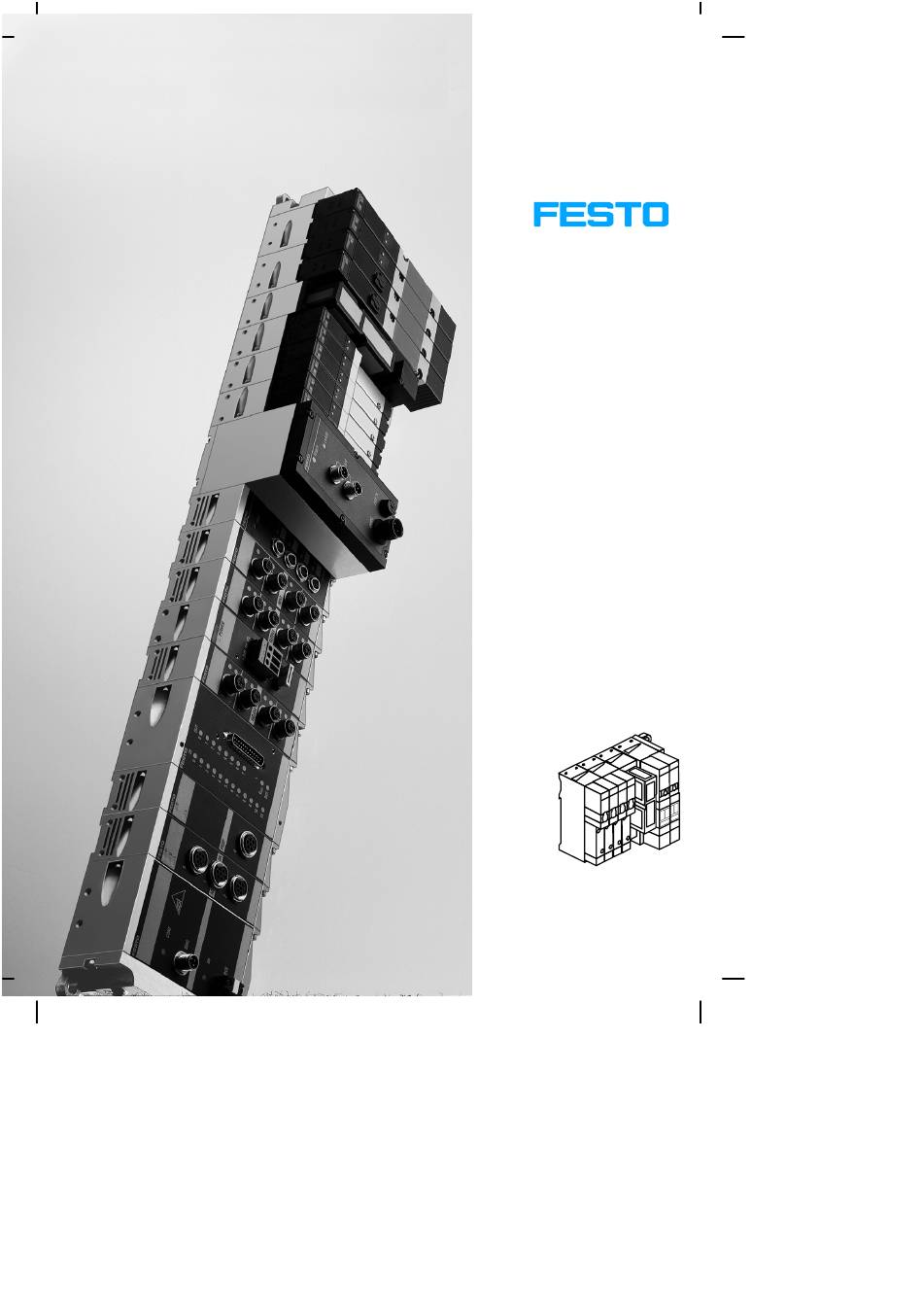

Valve terminal type 03
Pneumatics
manual
Valve terminal with
MIDI/MAXI
pneumatics
Type IFB..-03
Manual
152 771
en 0209f

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IFB-03 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Festo IFB-03 Series

Summary of Contents for Festo IFB-03 Series

  • Page 1 Valve terminal type 03 Pneumatics manual Valve terminal with MIDI/MAXI pneumatics Type IFB..-03 Manual 152 771 en 0209f...
  • Page 3 ....... German text Layout ....Festo SE AG & Co., Dept. KG-GD Type setting .
  • Page 4 Contents and general instructions Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 5: Table Of Contents

    ........Overview of multifunctional Festo valve terminals .
  • Page 6 ............Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 7: Designated Use

    Observe also national and local regulations. Target group This manual is directed exclusively at technicians trained in control and automation technology. Service Please consult your local Festo repair service if you have any technical problems. Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 8: Notes On The Use Of This Manual

    All information on power supply and on the electric modules can be found in the relevant electronics manuals for the CPX terminal or valve terminal 03/04B (see following tables). Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 9 Contents and general instructions The following Festo manuals are necessary for the complete documentation of the modular valve terminal, depending on what you have ordered and on further equipment for your complete system: Valve terminal type 03 with CPX terminal...
  • Page 10 Pneumatics “Valve terminals with Information on fitting, installing, commission- manual midi/maxi pneumatics” ing and diagnosing midi/maxi pneumatics type P.BE-Midi/ Maxi-03-... (this manual) Table. 0/3: Manuals for valve terminal type 03 with electrical periphery type 03/04B. VIII Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 11: Important User Instructions

    This means that failure to observe this instruction may result in damage to property. The following pictogram marks passages in the text which describe activities with electrostatically sensitive compo- nents. Electrostatically sensitive components may be damaged if they are not handled correctly. Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 12 Accessories: Information on necessary or sensible accessories for the Festo product. Environment: Information on environment-friendly use of Festo products. Text markings The bullet indicates activities which may be carried out in • any order. 1. Figures denote activities which must be carried out in the numerical order specified.

  • Page 13: Abbreviations

    Common term for valves, cover plates, large surface-mounted si- lencers, throttles and regulators Pneumatic modules Common term for sub-bases, pressure supply, pressure zone supply and end plates Regulator Pressure regulating valve Table. 0/4: Product-specific terms and abbreviations Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 14 Contents and general instructions Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 15: Summary Of Components

    Summary of components Chapter 1 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 16 ........Overview of multifunctional Festo valve terminals .
  • Page 17 CPX terminal periphery type 03/04B Field bus ”Electronics manual” “CPX field bus node” I/O modules ”Supplementary manual for the “CPX I/O modules” I/O modules” Pneumatic interface “CPX I/O modules” Table 1/1: Overview of supplementary manuals Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 18 1. Summary of components Festo assists you in solving your automation tasks at machine level with valve terminals. Valve terminals type 03 are built up on a modular basis and permit combinations of pneumatic modules type 03 and modular electrical periphery type 03/04B or CPX terminal.

  • Page 19: Overview Of Multifunctional Festo Valve Terminals

    – Special modules for (additional) pressure supply, pressure zone forming, pressure regulation and throttling – End plate right, with/without integrated regulator or with/with- out pneumatic common line connections Table 1/2: Overview of the modules on the multifunctional Festo valve terminals Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 20: Component Description Of The Pneumatic Modules

    Pessure regulating screw Valve location identification field Work connections (2) per valve, one Unused valve location with cover plate above the other) Fig. 1/1: Display, connecting and operating elements of the midi modules type 03 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 21 Unused valve location with cover plate Work connections 2, 4 (two per valve, one above the other) Regulator for limiting the pressure for auxiliary pilot air Fig. 1/2: Display, connecting and operating elements of the maxi modules type 03 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 22 – external auxiliary pilot air, separately pressure-regulated (4-6 bar) Further modules for pressure supply are also available, e.g. in order to permit work to be carried out with different work pressures. Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 23 1. Summary of components As an alternative for electrical switching, a multipin node with integrated left-hand end plate can be used. Multipin node with integrated (left-hand) end plate Fig. 1/3: Valve terminal type 03 with multipin node Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 24 1. Summary of components 1-10 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 25 Fitting Chapter 2 Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 26: Commissioning

    ........Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 27 “Supplementary description of the I/O modules” for fit- ting electrical I/O modules of the modular electrical pe- riphery type 03/04B – “CPX I/O modules“for fitting the electronic components of the modules and sub-bases of valve terminal type 03 with CPX terminal. Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 28: Valve Terminal Type 03 With Modular Electrical Periphery Type 03/04B

    – If your terminal does not have a hat-rail clamping unit, you can order this and fit it at a later stage. – The existing end plates (MIDI/MAXI) determine whether MIDI or MAXI clamping elements are to be used. Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 29 The levers must be locked with retaining screws (item 6). • Lever Rubber foot (self-adhesive) Flat-head screw Clamping elements O-ring Retaining screw *) Different lever lengths with midi and maxi Fig. 2/1: Fitting the hat rail clamping unit Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 30 (dia- gram item 3). Hat-rail clamping unit unlocked Hat rail clamping unit locked Retaining screw Fig. 2/2: Example of fitting the valve terminal onto a hat rail Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 31: Fitting Onto A Wall

    Check to see if you require support brackets for the I/O modules. 3. If necessary, use washers. 4. Fasten the valve terminal as shown in the table below. The valve terminal can be fitted in any position. Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 32 2. Fitting 7,6 mm M6 screw Fig. 2/3: Fastening possibilities for fitting onto a wall Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 33 Installation Chapter 3 Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 34: Diagnosis

    Address assignment of the valves ........3-20 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 35 03 with multipin connection can be found in the relevant information supplied with the product. Further information on addressing the inputs and outputs of valve terminal type 03 can be found in the manual for your field bus. Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 36: Preparing The Compressed Air

    (see ISO 8573-1 class 4). You will thereby avoid functional damage to the valves. Excessive residual oil cannot be permitted irrespective of the compressor oil, as otherwise the basic lubrication will be washed out during the course of time. Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 37: Operation With Lubricated Compressed Air

    Incorrect additional oil and too much residual oil content in the compressed air will reduce the service life of the valve terminal. – Use Festo special oil OFSW-32 or the other oils listed in the Festo catalogue (as per DIN51524-HLP32, basic vis- cosity 32cST at 40 °C).
  • Page 38 A further indication of excessive lubrication is the col- ouring or status of the exhaust silencer. A distinctly yellow colouring of the filter element or drops of oil on the silencer indicate that the lubricator setting is too high. Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 39: General Connecting Methods

    By slightly greasing the seal rings, you can increase the sealing effect. If elbow screw connectors or multiple distributors are • used, the airflow will be reduced slightly. Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 40 1. Loosen the locking screw or locking ring of the screw con- nector. 2. Pull out the tubing. 3. If necessary, replace the screw connector with a blanking plug (C). Connecting Removing Fig. 3/1: Tubing variants Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 41: Connecting The Valve Terminal

    – Any sequence is possible in the case of screw connectors with socket head screw. – In the case of screw connectors with external hexagon connection must be made from left to right (space for the wrench). Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 42 Screw connector in end plate without regulator (not necessary for end plate with regulator) Exhaust G 1/2 Screw connector (with non-return 82/84 G 1/8 (G 1/4) valve or silencer) Table 3/1: Pneumatic connections on the sub-bases 3-10 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 43 System 1 central 82/84 System 2 common 3/5 common 82/84 common 3/5 common 82/84 common 3/5 Valve terminal central 3/5 Valve termi Fig. 3/2: Common lines with non-return valve 3-11 Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 44: Auxiliary Pilot Air

    Please note that the regulated auxiliary pilot air for all pneu- matic modules is supplied or branched via common lines at only one point. This also applies when the valve terminal is operated with different pressure zones. 3-12 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 45 In the case of valve terminals with several pressure zones and internally branched auxiliary pilot air: – In the pressure zone via which the valve terminal is also supplied with internal auxiliary pilot air, the supply pres- sure must be at least 4 bar. 3-13 Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 46: Pressure Supply Modules

    10 valves (rated supply pressure 6 bar) – with large-volume actuators Caution If additional pressure supplies are used, the valve terminal must be exhausted via connections 3 and 5 of this module. 3-14 Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 47: Operation With Pressure Zones

    Caution If pressure zone supplies are used, the valve terminal must be exhausted via connections 3 and 5 of this module. 3-15 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 48 Isolating discs can only be placed in the sub-bases. The pressure for the zones is supplied with the following modules: – Additional pressure supply – Pressure supply adapter – Right-hand end plate An isolating disc cannot be inserted 3-16 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 49 3. Installation Fig. 3/4: Position of the isolating disc for maxi pressure zones 3-17 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 50 The regulating accuracy will thereby be increased. Pressure zone 1 with vacuum oper- Pressure zone 3 with 6 bar operating ation pressure Pressure zone 2 with 8 bar operating pressure Fig. 3/5: Example: Valve terminal type 03 with three pressure zones 3-18 Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 51: Connnecting Vacuum/Underpressure

    This regulator only works in pressure operation (> 3 bar). The valve terminal can, therefore, only be operated with ex- ternally regulated auxiliary pilot air with vacuum or low pres- sure (<3 bar). 3-19 Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 52: Address Assignment Of The Valves

    4. Pressure supply modules and pressure zone supply mod- ules do not occupy any addresses. Please note If two addresses are assigned for a valve location, the following assignment applies: – lower value address: pilot solenoid 14 – higher-value address: pilot solenoid 12 3-20 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 53 Valves each with two solenoid coils on Valve location numbers sub-base VIGI-03-... Valves each with one solenoid coil on sub-base VIGI-03-... Fig. 3/6: Example: Address assignment of valve terminal type 03 with 8 valve locations (top view) 3-21 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 54 This applies in the follow- ing cases: – If pneumatic sub-bases are inserted or removed at a later stage. – If a pneumatic sub-base VIGM-03-... Valves is replaced by a sub-base VIGI-03-... or vice versa. 3-22 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 55 2 and 3) coils Fig. 3/7: Example: Address assignment of valve terminal type 03 with 8 valve locations (top view) Remarks on Fig. Pressure supply modules and pressure zone supply modules do not occupy any addresses. 3-23 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 56 3. Installation 3-24 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 57 Commissioning Chapter 4 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 58 LED display of the valves ........4-17 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 59 ”Supplementary description of the I/O modules.” Further information on the possible connection methods of the I/O modules as well as information on the pneumatic in- terface can be found in the manual “CPX I/O modules.” Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 60: Settings

    4. Turn the regulating screw in a clockwise direction until the manometer shows the desired pressure (see following diagrams). Regulating screws Lock nut Connection for pressure display Fig. 4/1: Position of the regulating screws on the pressure regulator Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 61 Fig. 4/3: Characteristic flow curves of the maxi pressure regulator type ILR-03- ... -7,0 5. Exhaust the valve terminal again. 6. Replace the connecting tube with manometer again by the blanking plug with sealing disc. 7. If required, repeat this setting on all the other pressure regulator plates. Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 62 5. Conclude the test run. 6. Exhaust the valve terminal again. Regulating screws for work connection 2 Regulating screw for work connec- tion 4 Fig. 4/4: Position of the regulating screws on the one-way flow control valve Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 63: Commissioning Tests

    (all field bus slaves) Program control via PLC/industrial Table 4/1: Commissioning variants Commissioning by manual override is described below. Com- missioning by program is described in the relevant manual for the node. Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 64: Checking The Valve Functions

    By actuating the manual override, you can switch the valve without an electric signal. You only need to switch on the compressed air supply. Solenoid valve, single-solenoid Double-solenoid valve Mid-position valve Manual override Slot for screw- driver Fig. 4/6: Position of the midi manual override Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 65 4. Commissioning Solenoid valve, single-solenoid, locking Double-solenoid valve, non-lock- Mid-position valve, locking Manual override Slot for screw- driver Fig. 4/7: Position of the maxi manual override Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 66 After operation the ma- tomatic return (non- nual override is reset by lock) a spring. Locking manual override The manual override re- mains actuated until it is reset by hand. Table 4/3: Types of manual override 4-10 Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 67: Checking The Valve-Cylinder Combination

    The cylinder would suddenly move in or out, depending on the valve function, as the slow build-up in pressure of the complete supply cannot have an effect on the cylinder. 4-11 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 68 Externally supplied auxiliary pilot air (4 to 6 bar) branched from the safety start-up valve Safety start-up valve (slow build up of pressure of com- plete supply) Fig. 4/8: Example of valve-cylinder combination with slow increase in pressure of the complete supply 4-12 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 69 3. With locking manual override: After testing the valves, check that all manual override actuations are in their basic positions again. 4. Switch off the compressed air supply after checking the valves. 4-13 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 70 Protecting the manual override On open accessible systems the manual override can be pro- tected against unauthorized use. The manual override can be protected if the adjusting toggle is removed (keep in a safe place). 4-14 Festo P.BE-MIDI/MAXI-03-EN en 0209f...

  • Page 71: Eliminating Faults

    – does not react Servicing required • Check the basic setting , controller • connection (apply pressure > 3 bar at – Basicposition controller) Table 4/5: Operating status of the pneumatic system 4-15 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 72 When there are control signals: tion after EMERGENCY connections for the auxiliary pilot The auxiliary pilot air must be at STOP full pressure immediately after being switched on. Table 4/6: Causes of possible deviations from the nominal status 4-16 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 73 12 LED for pilot sole- noid coil 14 Plunger for pilot valve 14 (manual override 14) Plunger for pilot valve 12 (manual override 12) Fig. 4/9: Position of the LEDs and manual overrides 4-17 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 74 – compressed air supply not OK or – pilot exhaust blocked or – auxiliary pilot air outside the range 4 ... 6 bar or – servicing required Table 4/8: Example of LED display of switching status of the valve solenoid coil 4-18 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 75 Diagnosis and error treatment Chapter 5 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 76 ..........5-24 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 77 03. Combination possibilities valve/ sub-base Please note The valve locations are intended for Festo valves of the appropriate size and may only be fitted with the valves approved of by Festo. The valve locations must not be used for any other pur- pose.
  • Page 78 IGR-03-...-QS6 base, double-solenoid valve single-solenoid VIGI-03-4,0 JMT2H-5/2-4,0-... MT2H-5/2-4,0-... (supports control of two solenoid coils per 5/3-way valve, valve location) mid-position G, E, B MT2H-5/3-4,0-... Pressure regulator Cover plate plate ILR-03-...-4,0 IAP-03-4,0 Table 5/1: Combination possibilities valve/sub-base–Midi Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 79 IGR-03-...-QS8 double-solenoid valve single-solenoid VIGI-03-7.0 JMT2H-5/2-7.0-... MTH-5/2-7,0-... (supports control of two solenoid coils per 5/3-way valve, valve location) Mid-position G, E, B MTH-5/3.-7,0-... Pressure regulator Cover plate plate ILR-03-...-7.0 IAP-03-7.0 Table 5/2: Combination possibilities valve/sub-base–Maxi Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 80 • the load voltage supply (pin 2) • You can thereby avoid: – uncontrolled movements of loose tubing. – unexpected movements of the connected actuators – non-defined switching states of the electronic compo- nents. Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 81 2. Loosen the union nuts of the field bus cable. Valve terminal with multi- 1. Loosen the four fastening screws of the multipin plug. pin connection 2. Pull the plug away from the sub-base. Table 5/3: Disconnecting electric cables Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 82 • ing the pneumatic tubing on the valve terminal. 1. Mark all pneumatic tubing. 2. Loosen the locking screw or ring on the screw connector. 3. Pull the tubing out. Fig. 5/1: Loosening the pneumatic connections Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 83 – Two M6 screws on both the left and right-hand end plates. – Two M6 screws on the pneu- matic interface. Table 5/4: Dismantling valve terminal type 03 (wall fitting) 3. Remove the valve terminal from the fastening surface. Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 84 2. Remove the valve terminal from the hat rail. Hat-rail clamping unit unlocked Hat rail clamping unit locked Retaining screw Fig. 5/2: Dismantling valve terminal type 03 (hat rail fitting) 5-10 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 85 (not resistant to bending, i.e. they will break off if they are bent back). – Electrostatically sensitive components Do not touch the contact surfaces of the plug connectors on the sides of the modules and components. 5-11 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 86 2. Remove the silencer from the pressure supply plate. 3. Replace the silencer insert or clean it. 4. Place the cleaned or the new silencer and the fastening frame on the pressure supply plate. 5. Fasten the silencer only with the original screws. 5-12 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 87 2. Clean the surfaces and if necessary blow out the individ- ual air ducts of the modules before they are fitted into place. 3. Check the seals for damage and, if necessary, replace them. 4. Fit the modules as shown in the following diagrams. 5-13 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 88 5. Diagnosis and error treatment Through bolt max. 0.6 Nm Cover plate Throttle plate Pressure regula- tor plate Fig. 5/3: Fitting midi valves 5-14 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 89 5. Diagnosis and error treatment Identification la- bels Valve Seal Pressure regula- tor plate Cover plate Throttle plate Pre-pressed label support for re- moval M4 self-cutting screw max. 1.5 Fig. 5/4: Fitting maxi valves 5-15 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 90 Midi pressure regulator plate Maxi pressure regulator plate Table 5/5: Pressure regulator plates Basic setting of the pressure regulator Set the pressure regulator as described in chapter 4, in the section “Settings.” 5-16 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 91 Midi throttle plate Maxi throttle plate Table 5/6: Throttle plates Setting the throttle Set the throttle plate as described in chapter 4, in the section “Settings.” 5-17 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 92 10 valves (rated supply pressure 6 bar) – with large-volume actuators: The following diagrams show the midi or maxi additional pressure supplies (in the case of maxi without pressure regu- lator). 5-18 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 93 Fig. 5/5: Midi additional pressure supply Maxi additional pressure supply for ducted exhaust air with large surface-mounted silencer 82/84 12/14 12/14 Pressure supply in both directions of flow Fig. 5/6: Maxi additional pressure supply (without regulator) 5-19 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 94 Midi supply of different pressure zones for ducted exhaust air with large surface-mounted silencer 82/84 12/14 12/14 Pressure supply only in left-hand pressure zone (unilateral flow direction) Fig. 5/8: Midi supply of different pressure zones 5-20 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 95 Use an identification label to indicate that an isolating disc has been inserted. Place the identification label in the groove intended before screwing the sub-bases together. Fig. 5/9: Placing the isolating disc for maxi pressure zones 5-21 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 96 Converting the valve terminal from “Pressure supply mo- dule with exhaust connections” to “Pressure supply mo- dule with large surface-mounted silencer.” Use the existing flat seal, if it is not damaged. • Fasten the large surface-mounted silencer with the • screws supplied. 5-22 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 97 CPX pneumatic interface All fastening screws max. 1 Nm Type 03/04B field bus node Seal Type 03 multipin node Fig. 5/10: Fitting pneumatic modules using the example of midi 5-23 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 98 These end plates fulfil the following functions: – They comply with protection class IP 65. – They contain connections/contacts for earthing. – They contain holes for fitting the valve terminal onto a wall and for the hat rail clamping unit. 5-24 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 99 The right-hand end plate is available in various sizes and de- signs: Midi – with common line connections for supplying compressed air to the pneumatic modules and integrated regulator for the adapted auxiliary pilot air required (5 bar). Fig. 5/11: Midi end plate with regulator 5-25 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 100 Fig. 5/12: Right-hand end plate with connections – without common line connections for valve terminals with- out valves. Fig. 5/13: Right-hand end plate without connections 5-26 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 101 Instructions on earthing the complete valve terminal can be found in: – for valve terminals with electrical periphery type 03/04B in the chapter ”Installation” of the appropriate node man- ual. – for valve terminals with CPX terminal in the system man- ual. 5-27 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 102 Left-hand end plate Pre-fitted earth cable Seal Right-hand end plate Contact for earth cable All fastening screws max. 1 Nm Fig. 5/14: End plate fitting for valve terminals type 03 with modular electrical periphery type 03/04B 5-28 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 103 5. Diagnosis and error treatment Left-hand end plate Right-hand end plate Pre-fitted earth cable Contact for earth cable Seal Fastening screws max. 1 Nm Fig. 5/15: End plate fitting for valve terminals type 03 with CPX terminal 5-29 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 104 5. Diagnosis and error treatment 5-30 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 105 Technical appendix Appendix A Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 106 ............Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 107 160 g – Pressure regulator plate 100 g 188 g – Throttle plate 120 g 237 g Torques – Fastening screws 1.0 Nm module – Through bolts 0.6 Nm valves – Self-cutting screw 1.5 Nm valves Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 108 The valves can be used at temperatures down to -5 C. In order to prevent the condensate and the humidity from freezing, we recommend that you fit a dryer with which condensate and humidity can be removed. Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 109 G 1/2 (2x) – Auxiliary pilot air (12/14) G 1/8 G 1/4 (G 1/8) – Auxiliary pilot air (82/84) G 1/8 (G 1/4) G 1/4 – Work air (2/4) G 1/8 NW 7 Table A/2: Technical specifications: Pneumatics Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 110 Standard flow rate [l/min] flow char- MIDI MAXI acteristic (d acteristic (depends on standard flow t d d fl 1000 1300 1600 rate) 0,31 0,51 1,02 1,32 1,62 *) without screw connector Table A/3: Technical specifications: Flow rates Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 111 – per solenoid coil at 24 V (with 62 mA 100 mA LEDs) – total with max. number of valve 1.6 A 2.6 A coils (with LEDs) Output per solenoid coil MIDI MAXI 1.5 W 2.2 W Table A/4: Technical specifications: Electric components Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 112 A. Technical appendix Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 113 Designated use ........Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 114 5-13 Isolating disc ......3-16, 5-21 A-10 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 115 ......3-15 Pressure zones ....3-13, 3-15, 3-18, 4-16 A-11 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
  • Page 116 ......... . A-12 Festo P.BE-MIDI/MAXI-03-EN en 0209f...
