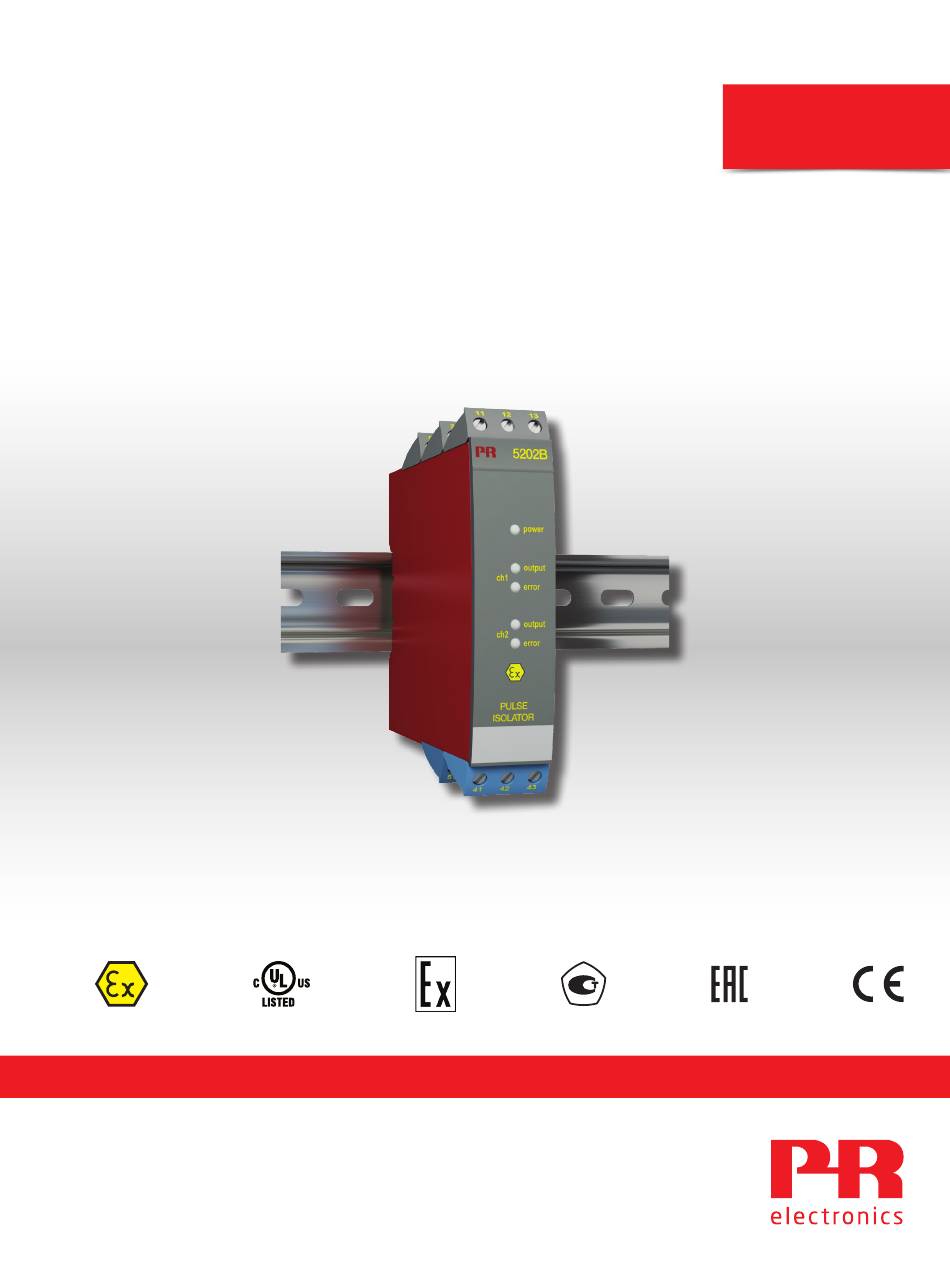

  • Page 1 PERFORMANCE MADE SMARTER Product Manual 5202 Pulse isolator T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.

  • Page 3: Table Of Contents

    Pulse isolator 5202 Contents Warning ....................

  • Page 4: Warning

    General mounting, connection and disconnection of wires. Troubleshooting the device. VOLTAGE Repair of the device replacement of circuit breakers must be done by PR electronics A/S only. Warning 5202B4: To keep the safety distances, one relay must not be connected to hazardous voltage at the same time as the other relay on the same channel is connected to non-hazardous voltage.

  • Page 5: Safety Instructions

    Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com Mounting and connection of the device should comply with national legislation for mounting of electric materials, i.e. wire cross section, protective fuse, and location.

  • Page 6: How To Demount System 5000

    How to demount system 5000 First, remember to demount the connectors with hazardous voltages. Picture 1: The device is detached from the DIN rail by moving the bottom lock down. Picture 2: Then, by lifting the upper lock and pulling the front plate simultaneously, the PCB is removed.

  • Page 7: Applications

    • Inputs, outputs, and supply are floating and galvanically separated. • The 5202 is designed according to strict safety requirements and is thus suitable for application in SIL 2 installations. Mounting / installation • Mounted vertically or horizontally on a DIN rail. Up to 84 channels per metre can be mounted.

  • Page 8: Applications

    Applications NAMUR sensors Outputs Supply 1 NAMUR sensor 2 outputs Supply Contact with cable error detection Outputs Signal Cable error Supply Contact Output Supply 5202V108-UK...

  • Page 9: Order

    Order Type Version Output 5202 Standard Open collector NPN 2 x 1 relay ATEX Ex 2 x 2 relays Electrical specifications Environmental conditions: Operating temperature ....... . -20°C to +60°C Calibration temperature.
  • Page 10 Open NPN collector outputs: Max. frequency ........5 kHz Pulse length .

  • Page 11: Jumper Programming

    Jumper programming Signal Channel 1 Channel 2 Cable error Channel 1 Channel 2 transmission JP 11 JP 21 detection JP 12 JP 22 Direct Inverted Channel 1 Channel 1 Channel 2 Channel 2 signal to JP 13 function JP 23 channel 2 Channel 1 to channel 2 ON, Cable error...

  • Page 12: Block Diagram: 5202A1 And 5202A2

    Block diagram: 5202A1 and 5202A2 CH 1 Supply 24...230 VAC & Power 24...250 VDC NAMUR Supply Contact + JP11 Direct Relay N.C. Output Input Inverted Relay C. / NPN + Rp = 15 kΩ Relay N.O. / NPN - error Rs = 750Ω...

  • Page 13: Block Diagram: 5202B1 And 5202B2

    Block diagram: 5202B1 and 5202B2 CH 1 Supply 24...230 VAC & power 24...250 VDC NAMUR Supply Contact + JP11 Direct Relay N.C. output Input Inverted Relay C. / NPN + Rp = 15 kΩ Relay N.O. / NPN - error Rs = 750Ω...

  • Page 14: Connections

    Connections Supply: Inputs: NAMUR sensor Contact, cable error Contact, cable error Contact Rp = 15 k Ω Rs = 750 Ω to be mounted on contact Contact NAMUR sensor Contact, cable error Contact, cable error Rp = 15 k Ω Rs = 750 Ω...

  • Page 15: Ul Control Drawing 5202Qu01

                                            ...

  • Page 16: Document History

    Document history The following list provides notes concerning revisions of this document. Rev. ID Date Notes 1510 GOST approval replaced with EAC approval 5202V108-UK...
