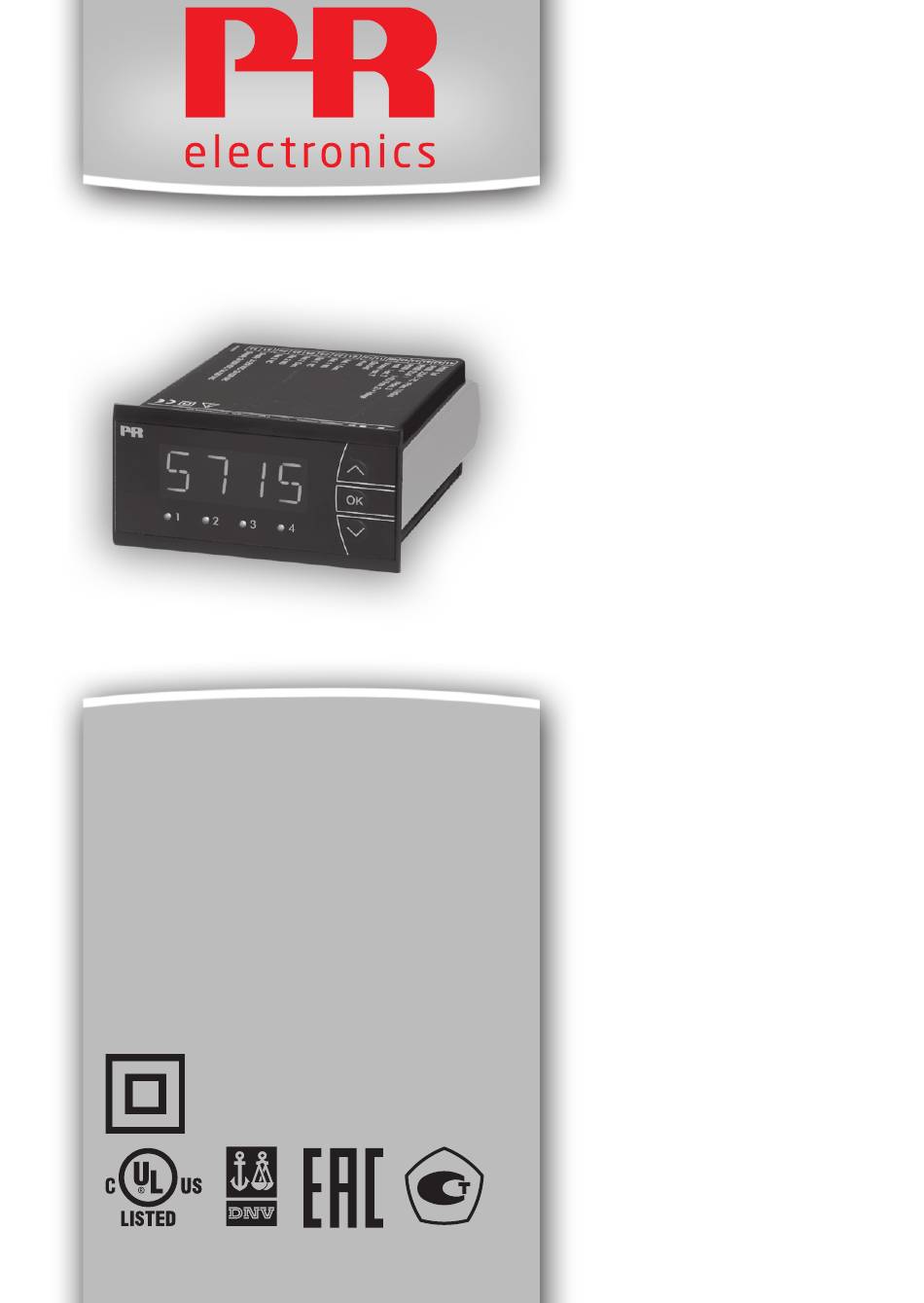

- Page 1 5 7 1 5 P r o g r a m m a b l e L E D I n d i c a t o r N o . 5 7 1 5 V 1 0 2 - U K F r o m s e r i a l n u m b e r : 1 2 1 4 9 6 0 0 1 ( B ) 1 3 1 0 7 7 0 0 1 ( D )
- Page 2 PR electronics A/S tilbyder et bredt program af analoge og digitale signalbehandlingsmoduler til industriel automation. Programmet består af Isolatorer, Displays, Ex-barrierer, Temperaturtransmittere, Universaltransmittere mfl. Vi har modulerne, du kan stole på i selv barske miljøer med elektrisk støj, vibrationer og temperaturudsving, og alle produkter opfylder de strengeste internationale standarder.
-
Page 3: Table Of Contents
PROGRAMMABLE LED INDICATOR 5715 CONTENTS Warning ....................... Symbol identification ................Safety instructions ................. Front and back layout ................Application ....................Technical characteristics ..............Mounting / installation ................. Applications....................Order: 5715 ....................10 Electrical specifications................ 10 Sensor error detection inside and outside range ...... 14 Connections .................... -
Page 4: Warning
HAZARD OUS nected module and under ESD safe conditions: VOLTAGE Troubleshooting the module. Repair of the module must be done by PR electronics A/S only. SYMBOL IDENTIFICATION Triangle with an exclamation mark: Warning / demand. Potentially lethal situations. The CE mark proves the compliance of the module with the essential requirements of the directives. -
Page 5: Safety Instructions
Should there be any doubt as to the correct handling of the module, please con- tact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com Mounting and connection of the module should comply with national legislation for mounting of electric materials, i.e. -
Page 6: Ul Installation Requirements
When disconnected, the module may be cleaned with a cloth moistened with distilled water. LIABILITY To the extent the instructions in this manual are not strictly observed, the custom er cannot advance a demand against PR electronics A/S that would other- wise exist according to the concluded sales agreement. 5715V102-UK... -
Page 7: Front And Back Layout
FRONT AND BACK LAYOUT Picure 1: Front of PReview 5715. Picture 2: Back of PReview 5715. 5715V102-UK... -
Page 8: Technical Characteristics
PROGRAMMABLE LED INDICATOR PREVIEW 5715 • 4-digit 14-segment LED display • Input for mA, V, potentiometer, Ohm, RTD and TC • 4 relays and analogue output • Universal supply • Programmable via front keys and PC Application • Display for digital readout of current / voltage / resistance / temperature or 3-wire potentiometer signals. -
Page 9: Applications
APPLICATIONS Input signals: Current RTD & Lin R - Potentio- Connection, wires meter Voltage Output signals: Analogue, 0/4...20 mA 4 change-over relays Supply: 21.6...253 VAC 19.2...300 VDC 5715V102-UK... -
Page 10: Order: 5715
Internal consumption Max. consumption 5715B 3.0 W 3.3 W 5715D 3.5 W 3.8 W Isolation voltage, test / operation ....2.3 kVAC / 250 VAC Signal / noise ratio ..........Min. 60 dB (0...100 kHz) Communications interface ........USB Loop Link Response time (0...90%, 100...10%):... - Page 11 Basic values Input Basic Temperature type accuracy coefficient ≤ ±4 µA ≤ ±0.4 µA / °C ≤ ±20 µV ≤ ±2 µV / °C Volt Pt100 ≤ ±0.2°C ≤ ±0.01°C / °C ≤ ±0.1 Ω ≤ ±0.01 Ω / °C Linear resistance ≤...
- Page 12 Input for RTD types: Pt10, Pt20, Pt50, Pt100, Pt200, Pt250, Pt300, Pt400, Pt500, Pt1000 Ni50, Ni100, Ni120, Ni1000, Cu10, Cu20, Cu50, Cu100 Cable resistance per wire, RTD (max.)..... 50 Ω Sensor current, RTD ..........Nom. 0.2 mA Effect of sensor cable resistance (3- / 4-wire), RTD .............
- Page 13 Voltage input: Measurement range ..........0...12 VDC Programmable measurement ranges ....0...1, 0.2...1, 0...10 and 2...10 VDC Input resistance............Nom. 10 MΩ Outputs: Display: Display readout............-1999...9999 (4 digits) Decimal point ............. Programmable Digit height ..............13.8 mm Display updating ............2.2 times / s Input outside input range is indicated by..............
-
Page 14: Sensor Error Detection Inside And Outside Range
Sensor error detection: ERR1, ERR2, ERR3 and ERR4 = NONE 5715B Else: ERR1, ERR2, ERR3 and ERR4=NONE, O.ERR=NONE. 5715D Else: Outside range readout (IN.LO, IN.HI): If the valid range of the A/D converter or the polynomial is exceeded Input Range... -
Page 15: Connections
CONNECTIONS Supply: 31 32 Inputs: RTD & Lin R, 2-wire RTD & Lin R, 3-wire RTD & Lin R, 4-wire 41 42 43 44 45 46 41 42 43 44 45 46 41 42 43 44 45 46 2-wire transmitter Current 41 42 43 44 45 46 41 42 43 44 45 46... -
Page 16: Block Diagram
BLOCK DIAGRAM 5715V102-UK... - Page 17 Power up Fast setpoint adjustment and relay test F.SET SETP 1 Increase setpoint 2 Decrease setpoint REL1 -1999 3 Save and exit the menu 9999 REL2 50.0 REL3 /OFF 1 and 2 simultaneously = REL4 relay changes state PASS DEC.P DI.LO PERC DI.HI...
-
Page 18: Routing Diagram
ROUTING DIAGRAM If no key is activated for 2 minutes, the display returns to default state 1.0 without saving configuration changes. 1 Increase value / choose next parameter 2 Decrease value / choose previous parameter 3 Accept the chosen parameter and go to the next menu Hold 3 Back to previous menu / return to default state 1.0 without saving REL.1 SETP... -
Page 19: Scrolling Help Texts
SCROLLING HELP TEXTS Display in default state xxxx, hardware error: DI.HI SE.BR --> SENSOR WIRE BREAKAGE xxxx --> DISPLAY READOUT HIGH SE.SH --> SENSOR SHORT CIRCUIT IN.HI REL.U --> INPUT OVERRANGE IN.LO --> INPUT UNDERRANGE PERC --> SET RELAY IN PERCENTAGE 9.9.9.9 -->... - Page 20 REL1 RESP --> ENTER RELAY 1 SETUP xxx.x --> ANALOGUE OUTPUT RESPONSE TIME SKIP --> SKIP RELAY 1 SETUP IN SECONDS --> RELAY 1 DISABLED E.PAS SETP --> ENABLE PASSWORD PROTECTION xxxx --> RELAY SETPOINT ACT1 N.PAS INCR --> ACTIVATE AT INCREASING SIGNAL xxxx -->...
-
Page 21: Configuration / Operating The Function Keys
CONFIGURATION / OPERATING THE FUNCTION KEYS Documentation for the routing diagram In general: When configuring the display you are guided through all parameters, allowing you to choose the settings which fit the application. For each menu there is a scrol- ling help text which is automatically shown in the display if no key has been activated for appr. -
Page 22: Programming Via Pc
PROGRAMMING VIA PC By way of PReset, a simple yet sophisticated PC program, all operational parame- ters in the 5715 can be quickly configured to suit any application. Furthermore, the PC configuration allows you to set up a customer-defined input type for the input signals current, voltage, resistance and potentiometer. - Page 23 Displays Programmable displays with a wide selection of inputs and outputs for display of temperature, volume and weight, etc. Feature linearization, scaling, and difference measurement functions for programming via PReset software. Ex interfaces Interfaces for analog and digital signals as well as HART signals between sensors / I/P converters / ®...
- Page 24 www.prelectronics.com sales-uk@prelectronics.com www.prelectronics.com sales-us@prelectronics.com www.prelectronics.cn sales-cn@prelectronics.com www.prelectronics.be sales-be@prelectronics.com Head office Denmark www.prelectronics.com PR electronics A/S sales@prelectronics.dk Lerbakken 10 tel. +45 86 37 26 77 DK-8410 Rønde fax +45 86 37 30 85...
